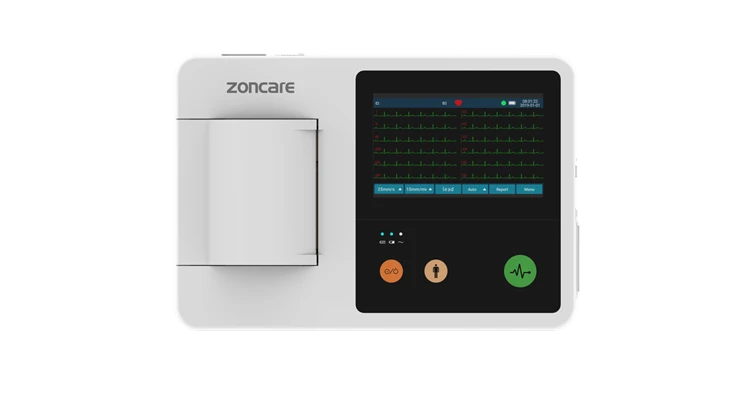

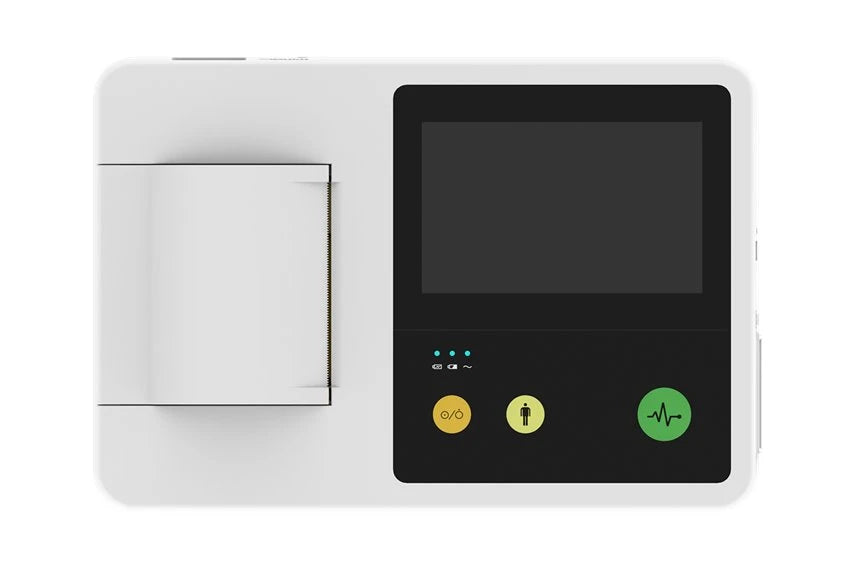

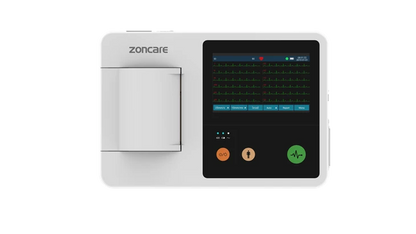

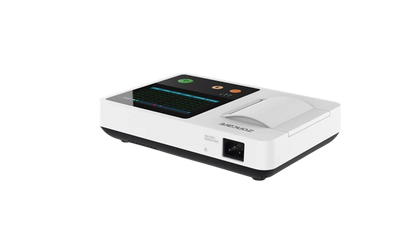

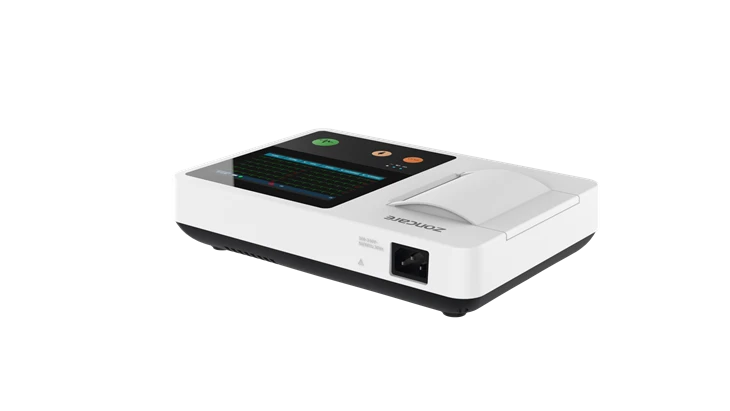

The ZONCARE E10 is an advanced 3-channel ECG machine designed to deliver accurate and comprehensive cardiac diagnostics. With its state-of-the-art technology and clear display, it provides precise recording of electrocardiograms, enabling effective analysis of heart rhythms. Equipped with user-friendly features and intuitive controls, it simplifies the ECG acquisition process, ensuring ease of use for healthcare professionals. The ZONCARE E10 - 3 Channel ECG Machine: A reliable and efficient solution for cardiac monitoring, supporting healthcare providers in delivering optimal patient care.
| Number Of Channels | 3 Channels |
| Brand | Zoncare |
| Machine Type | Digital |
| Digital Display | Yes |
| Operating Mode | Manual |
| Minimum Order Quantity | 1 |
|
Performance
|
Support auto-diagnosis and auto-measurement, E30 has imported 280 professional case template which can help caregivers quickly import diagnostic results
Display lead signal quality with different colors can quickly judge waveform quality, visual inspection that meets your needs now and, in the future.
Green: good quality
Red: lead off or excessive signal
Yellow:EMGinterference/baseline interference/industrial frequency interference
|
Check and Confirm Quality |
Preview ECG waveform on the 5-inch touchscreen to check signal quality before printing,which help to save printing paper and confirm waveform quality in time
Smooth Workflow
● Auto/Manual/Rhythm work modes
● Interface prompts tachycardia bradycardia
● Lead-off detection and alarm
User-friendly Design
● Easy-to-use 1-2-3 touchscreen operation is fast and intuitive
● Built-in rechargeable Li-ion battery,continuous Operating ≥5h; AC/DC power supply
Report Management
● Report formats: PDF PNG JPG XML and ZQECG data export
● Workstation supports real-time sampling and analysis. Reports can be imported and exported
|
Features
|
|
5-inch high-resolution touch screen design ● 1kg light-weight body makes it easy to take anywhere ● Optional Trolley ● Internal storage up to 5000 ECGs and can be exported by USB flash disk ● Built-in high-resolution thermal printer direct printing, roll paper design ● One-button operation: power button, patient information button,and sampling button,simplify the clinical operation process ● Optional waterproof and pressure-proof suitcase |
Flexible Solutions
|
● The suitcase is based on a compactand lightweight design that can beeasily carried out ● With adjustable height and large capacity trolley basket, the trolley can provide the ultimate experience to users |
