Product Description

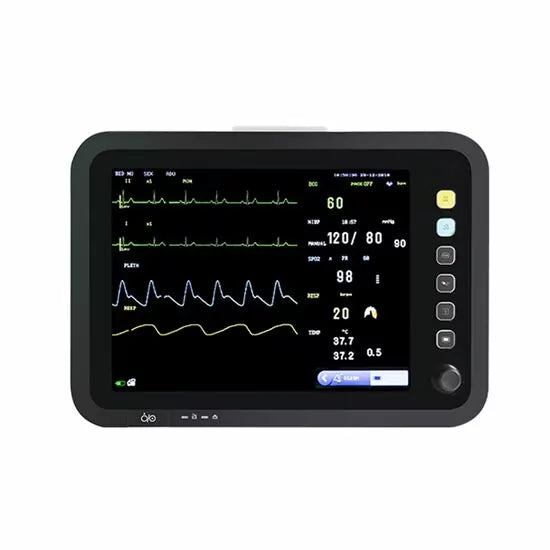

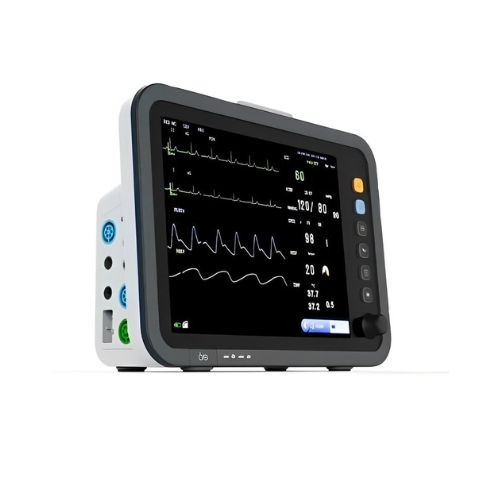

The Yonker YK-8000C is a multi-parameter patient monitor featuring a 12.1-inch color display designed for comprehensive vital sign tracking in high-acuity clinical environments. It relies on internal processing modules to concurrently analyze up to eight parameters, giving medical personnel immediate, real-time insight into patient status. Utilizing anti-high frequency electrosurgical and anti-defibrillation interference protection, it maintains reliable data output during active surgical procedures or emergency resuscitations.

Technical Specifications

Parameter / Module Specification
Display Configuration 12.1-inch Real Color TFT Screen (with optional touchscreen configuration)
Standard Monitored Parameters ECG, $SpO_2$, NIBP, Respiration (RESP), Pulse Rate (PR), 2-Channel Temperature (TEMP)
Optional Advanced Parameters End-Tidal $CO_2$ ($EtCO_2$), 2-Channel Invasive Blood Pressure (2-IBP), Thermal Recorder
ECG Lead Options & Gain 3/5 Wire Lead Acquisition (I, II, III, aVR, aVL, aVF, V) | Gain: $$\time$0.25, $$\time$0.5, $$\time$1, $$\time$2, Auto
ECG Heart Rate Range 15 bpm to 300 bpm ($\pm$1 bpm or $\pm$1% accuracy)
NIBP Measurement Method Oscillometric (Manual, Auto, and STAT modes)
NIBP Measurement Range Adult SYS: 40–280 mmHg | Pediatric SYS: 40–220 mmHg | Neonatal SYS: 40–135 mmHg
$SpO_2$ Range & Accuracy 0% to 100% | Accuracy: $$\p$2% between 70%–100%
Respiration Rate (RESP) 0 to 150 rpm via Impedance between RA-LL (Adult range: 0–120 rpm)
Temperature Channels Dual-channel monitoring (T1, T2, TD) | Range: 0 to 50°C ($$\p$0.1°C accuracy)
Data Memory Storage 240 hours of dynamic trend review data, 1,000 NIBP groups, 128 Arrhythmia groups
Power Supply System AC: 100–240V, 50Hz/60Hz | DC: Built-in rechargeable 11.1V 24Wh Li-ion battery
Battery Lifespan / Backup ~2 to 4 hours of continuous running time (5 mins backup after low battery alarm)
Dimensions & Net Weight 340 mm $\times$ 245 mm $\times$ 134 mm | Weight: ~2.798 kg

Key Features

  • Multi-Display Formats: Supports flexible screen layouts, including Standard View, Big-Character Display, Trend Graph split-screen, OxyCRG layout, and an NIBP table list view.

  • Three Clinical Processing Modes: Configurable software modes customized for standard Monitoring, specialized Diagnosis, or high-noise Surgery environments.

  • Three-Level Smart Alarms: Audio and visual indicators divided into Low, Medium, and High-priority triggers, allowing customizable alarm parameter limits.

  • Smart Data Hold: Power-off storage function that retains historical trend data and baseline waveforms during sudden power loss.

  • Connectivity Architecture: Supports LAN/WIFI integration for linking up with a Central Monitoring Station (supporting up to 64 bedside monitors on one platform) alongside a physical USB export interface.

Product Highlights

  • All-Patient Cross-Capability: Built-in software modes calibrated for precise data processing across Adult, Pediatric, and Neonatal physiology.

  • Robust Hardware Safeguards: Hardware-level insulation breakdown protection (up to 4000VAC 50/60Hz) protecting the device against electrosurgical blade and defibrillator discharge currents.

  • Independent Parameter Modules: Designed with fully distinct parameter circuit pathways, ensuring the breakdown of an individual module (like Temp) won't alter the performance of other parameters.

Use Cases

  • Intensive Care & Critical Care Units (ICU/CCU): For continuous multi-lead tracking of unstable cardiac or respiratory patients.

  • Operating Rooms (OR): Safe for surgical theaters requiring vital tracking alongside high-frequency electrical cutting instruments.

  • Patient Transfer & General Wards: Lightweight footprint and up to 4-hour battery profile support seamless intra-hospital transport or general bedside checkups.

In the Box

  • Yonker YK-8000C Multi-Parameter Patient Monitor Main Unit

  • 5-Lead Patient ECG Cable Assembly

  • Disposable ECG Electrodes (Starter Pack)

  • Adult $SpO_2$ Finger Clip Sensor

  • Non-Invasive Blood Pressure (NIBP) Cuff & Extension Hose

  • Digital Temperature Probe

  • Internal Rechargeable Lithium-Ion Battery (Pre-installed)

  • AC Power Cord & Grounding Wire

  • User Operation Manual
