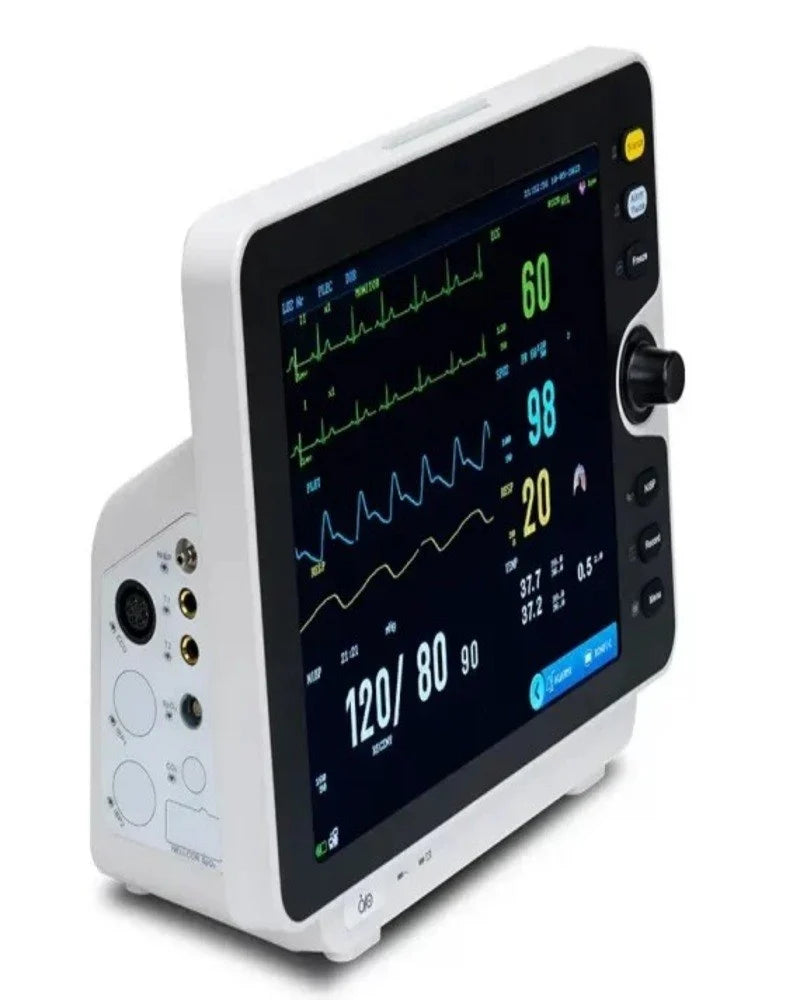

Yonker Multi-Parameter Patient Monitor - YK-8000B

Kaarya

Yonker Multi-Parameter Patient Monitor - YK-8000B

Rs. 24,999.00
Rs. 24,999.00
Rs. 24,999,000.00 kg
Sold out
Tax included. Shipping calculated at checkout.
25 people are viewing this right now

Availability: In stock

Our Advantages

  1. 1. GST Invoice
  2. 2. Brand New Products
  3. 3. Easy Replacements
  4. 4. Authorized Distributor
  5. 5. Best Price Guaranteed
  6. 6. Multiple Payment Options

Shipping & Returns

Free shipping and returns available on all orders!

We ship all US domestic orders within 5-10 business days

View full product details

Product Description

The Yonker YK-8000B is a versatile 5-parameter patient monitor designed for comprehensive vital sign monitoring in various clinical settings. It features a 12.1-inch high-resolution TFT display, providing real-time measurements of ECG, SpO₂, NIBP, RESP, and dual temperature readings. The monitor includes advanced features such as S-T segment analysis, pacemaker detection, and multi-language support, ensuring accurate and user-friendly operation. It offers up to 7 days of trend data storage, 6000 seconds of ECG waveform recall, and 400 NIBP readings. The built-in rechargeable lithium battery allows for up to 5 hours of continuous use, making it ideal for ICUs, operating rooms, and patient transport

scenarios Technical Specifications

Parameter / Module Specification
Display Configuration 12.1-inch Real Color TFT Screen (with optional touchscreen configuration)
Standard Monitored Parameters ECG, $SpO_2$, NIBP, Respiration (RESP), Pulse Rate (PR), 2-Channel Temperature (TEMP)
Optional Advanced Parameters End-Tidal $CO_2$ ($EtCO_2$), 2-Channel Invasive Blood Pressure (2-IBP), Thermal Recorder
ECG Lead Options & Gain 3/5 Wire Lead Acquisition (I, II, III, aVR, aVL, aVF, V) | Gain: $$\time$0.25, $$\time$0.5, $$\time$1, $$\time$2, Auto
ECG Heart Rate Range 15 bpm to 300 bpm ($\pm$1 bpm or $\pm$1% accuracy)
NIBP Measurement Method Oscillometric (Manual, Auto, and STAT modes)
NIBP Measurement Range Adult SYS: 40–280 mmHg | Pediatric SYS: 40–220 mmHg | Neonatal SYS: 40–135 mmHg
$SpO_2$ Range & Accuracy 0% to 100% | Accuracy: $$\p$2% between 70%–100%
Respiration Rate (RESP) 0 to 150 rpm via Impedance between RA-LL (Adult range: 0–120 rpm)
Temperature Channels Dual-channel monitoring (T1, T2, TD) | Range: 0 to 50°C ($$\p$0.1°C accuracy)
Data Memory Storage 240 hours of dynamic trend review data, 1,000 NIBP groups, 128 Arrhythmia groups
Power Supply System AC: 100–240V, 50Hz/60Hz | DC: Built-in rechargeable 11.1V 24Wh Li-ion battery
Battery Lifespan / Backup ~2 to 4 hours of continuous running time (5 mins backup after low battery alarm)
Dimensions & Net Weight 340 mm $\times$ 245 mm $\times$ 134 mm | Weight: ~2.798 kg

Key Features

  • Multi-Display Formats: Supports flexible screen layouts, including Standard View, Big-Character Display, Trend Graph split-screen, OxyCRG layout, and an NIBP table list view.

  • Three Clinical Processing Modes: Configurable software modes customized for standard Monitoring, specialized Diagnosis, or high-noise Surgery environments.

  • Three-Level Smart Alarms: Audio and visual indicators divided into Low, Medium, and High-priority triggers, allowing customizable alarm parameter limits.

  • Smart Data Hold: Power-off storage function that retains historical trend data and baseline waveforms during sudden power loss.

  • Connectivity Architecture: Supports LAN/WIFI integration for linking up with a Central Monitoring Station (supporting up to 64 bedside monitors on one platform) alongside a physical USB export interface.

Product Highlights

  • All-Patient Cross-Capability: Built-in software modes calibrated for precise data processing across Adult, Pediatric, and Neonatal physiology.

  • Robust Hardware Safeguards: Hardware-level insulation breakdown protection (up to 4000VAC 50/60Hz) protecting the device against electrosurgical blade and defibrillator discharge currents.

  • Independent Parameter Modules: Designed with fully distinct parameter circuit pathways, ensuring the breakdown of an individual module (like Temp) won't alter the performance of other parameters.

Use Cases

  • Intensive Care & Critical Care Units (ICU/CCU): For continuous multi-lead tracking of unstable cardiac or respiratory patients.

  • Operating Rooms (OR): Safe for surgical theaters requiring vital tracking alongside high-frequency electrical cutting instruments.

  • Patient Transfer & General Wards: Lightweight footprint and up to 4-hour battery profile support seamless intra-hospital transport or general bedside checkups.

In the Box

  • Yonker YK-8000B Multi-Parameter Patient Monitor Main Unit

  • 5-Lead Patient ECG Cable Assembly

  • Disposable ECG Electrodes (Starter Pack)

  • Adult $SpO_2$ Finger Clip Sensor

  • Non-Invasive Blood Pressure (NIBP) Cuff & Extension Hose

  • Digital Temperature Probe

  • Internal Rechargeable Lithium-Ion Battery (Pre-installed)

  • AC Power Cord & Grounding Wire

  • User Operation Manual
