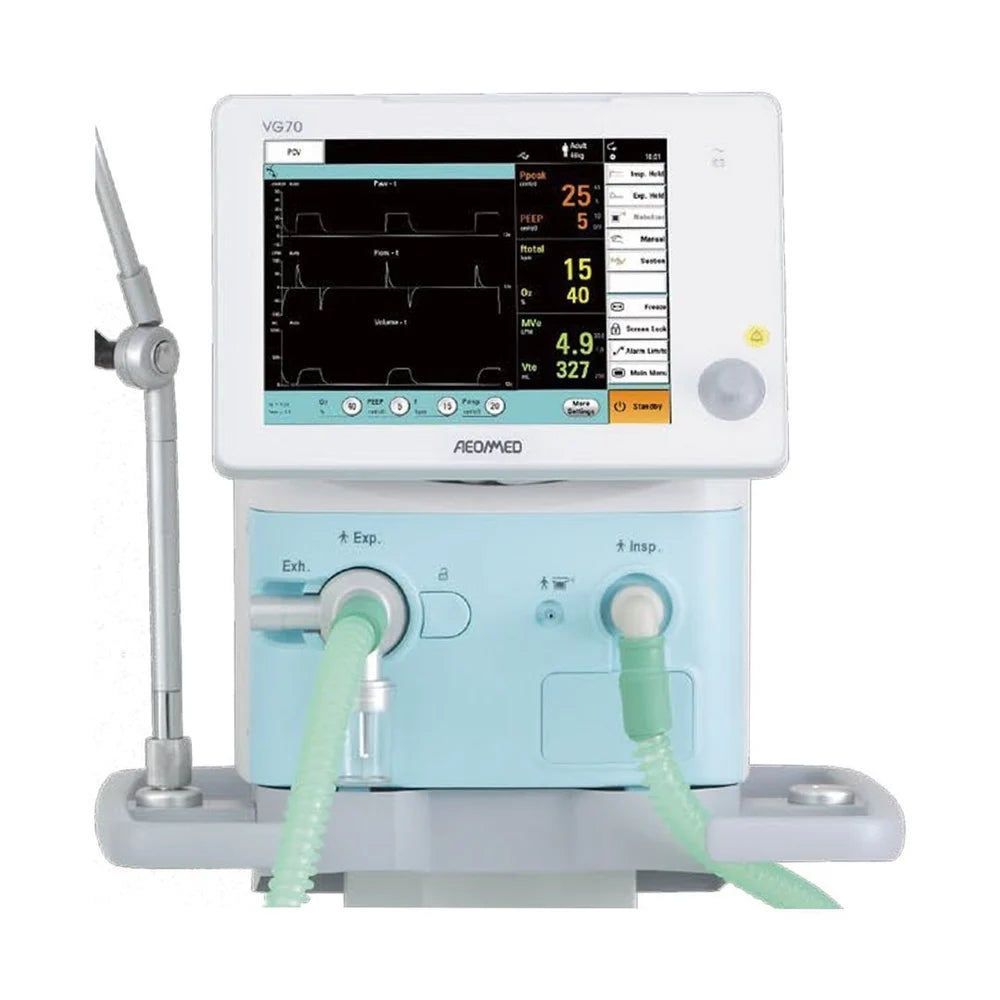

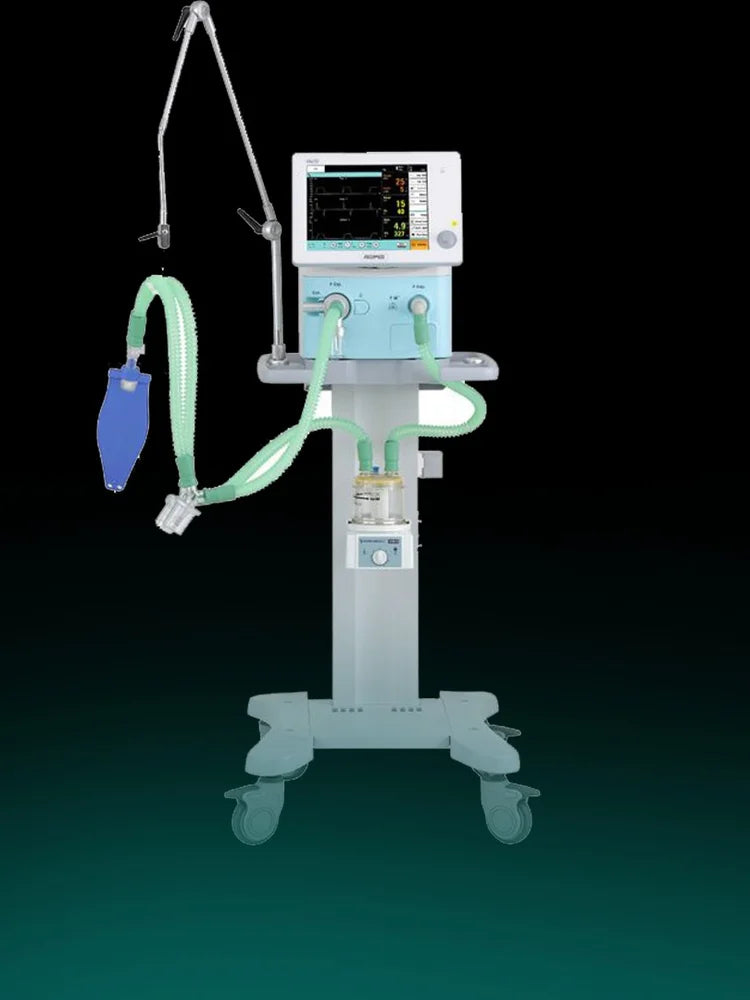

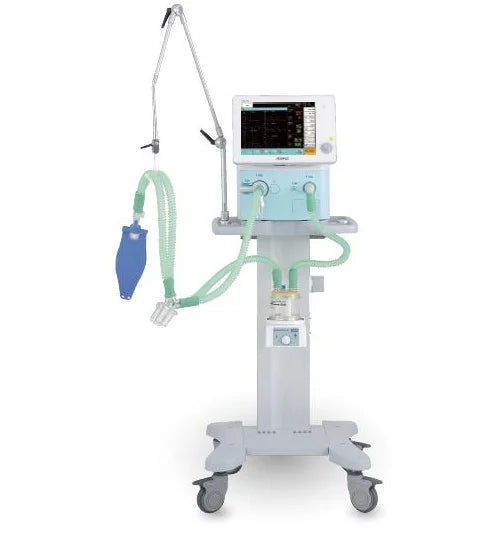

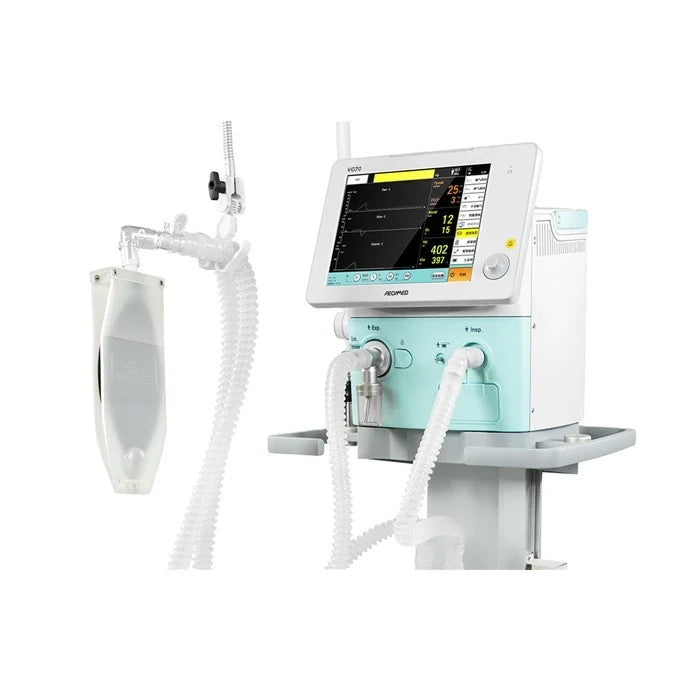

The Aeonmed VG70 is a versatile ICU ventilator designed for both invasive and non-invasive respiratory support across all patient age groups—infants, children, and adults. It combines advanced features with user-friendly design, making it suitable for critical care, intra-hospital transport, and sub-acute settings.
Ventilation Settings
Ventilation Modes
• VCV (A/C), PCV (A/C), PRVC (optional), PSV (optional), STANDBY
• SIMV (VCV)+PSV, SIMV (PCV)+PSV, SIMV (PRVC)+PSV
• SPONT/CPAP+PSV
• BIVENT/APRV +PSV (optional)
• NIV/CPAP, NIV-T, NIV-S/T
Enhancements
• Apnea ventilation, Pressure and Flow trigger, Automatic Tube Compensation (ATC), Smart suction
• Manual breath, Insp/Exphold, Screen freeze, Nebulization, Lung recruitment
Parameters
Tidal volume (VT)
• Respiratory rate (RR)
• Inspiratory time (Ti)
• Inspiratory flow (Flow)
• Inspiratory pressure (Pinsp)
• Inspiratory pressure limit (Pmax)
• PEEP
• Tslope
• O2 concentration (FiO2)
• Trigger sensitivit
• I/E ratio
• Apnea alarm time
20-2000ml 1 to 80 bpm 0.2 to 9 s (adult), 0.2 to
5 s (pediatric) 0 to 100 L/min (pediatric), 0 to
180L/min (adult) 5 to 70 mbar (or cmH2O) 80
mbar (or cmH2O) 0 to 35 mbar (or cmH2O) 0 to 2
s 21 to 100 Vol% 0.5 to 20 L/min (Flow trigger),
-20 to 0 mbar (or cmH2O) (Pressure trigger)
1/10 to 4/1 10-60 seconds
Monitoring
Pressure values
• Volume/Flow values
• Time values
Pplat, Ppeak, Pmean, Pmin, PEEP
VTI, VTE, MV, MVe, MVspont
ftotal, fspont, I:E
• Inspiratory O2 concentration (FiO2), End-expiratory CO2 concentration (etCO2)
• Compliance (dynamic & static), Resistance (R), MVleak, RSBI, WOB I:E, Vdaw, PEEPi
• Pressure-Volume loop, Pressure-Flow loop, Flow-Volume loop
Alarms
Expiratory minute volume (MV) High/Low, Airway pressure (Paw) High/Low,
VTe Low, PEEP High/Low, Insp. O2 concentration (FiO2) High/Low,
End-expiratory CO2 concentration (etCO2) High/Low, fspont High, Apnea alarm, Disconnection,
Flow sensor error, Gas supply, Electrical supply & battery failure,
Exhalation obstruction, Apnea backup for low frequency alarm
Physical Specifications
Dimensions (WxDxH) •
Weight • Screen
375mm x 395mm x 430mm
15kg (33.1lbs)
12.1" TFT color touch screen
Superior Mobile ICU ventilator
• Comprehensive ICU ventilator including BIVENT and PRVC
• Compact, big capacity battery, no air compressor, intra-hospital mobility
• Flexible device configuration: equipped on a trolley, bed or ceiling pendant
Cost Effective Solution
• Unique metal-based, autoclavable, heated exhalation valve
• Built-in flow sensor, non-consumable design
• Upgradeable ventilation system software, with an available USB port
