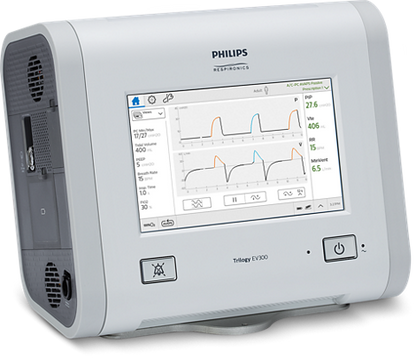

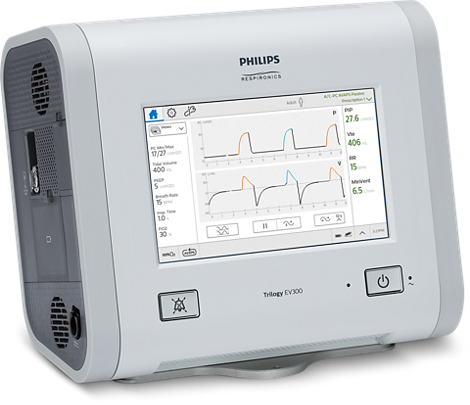

Philips Trilogy EV300 Hospital ventilator

Kaarya

Philips Trilogy EV300 Hospital ventilator

Rs. 0.00
Rs. 0.00
Sold out
Tax included. Shipping calculated at checkout.
22 people are viewing this right now

Availability: In stock

Our Advantages

  1. 1. GST Invoice
  2. 2. Brand New Products
  3. 3. Easy Replacements
  4. 4. Authorized Distributor
  5. 5. Best Price Guaranteed
  6. 6. Multiple Payment Options

Shipping & Returns

Free shipping and returns available on all orders!

We ship all US domestic orders within 5-10 business days

View full product details

Description

Philips Trilogy EV300 Hospital ventilator Features:

Adjustable therapy options

Adjustable therapy options

Trilogy EV300 is user-friendly but doesn’t compromise on the advanced features of the innovative Trilogy ventilator family technology. Its advanced respiratory monitoring capabilities are designed to help you optimize your patients’ therapy. Trilogy EV300 provides noninvasive (NIV) and invasive (IV) ventilation for a wide range of adult and pediatric patients. Volume and pressure modes, AVAPS-AE, SpO₂ and EtCO₂ monitoring as well as Dynamic Lung Parameters and alarms of every parameter allow for adaptable care. Flexibility of circuits enables Trilogy EV300 to be used in a wide range of patients, from infants >2.5kg to adults.
Simplicity

Simplicity

Whether you are in a sub-acute or chronic care environment, Trilogy EV300 Is designed for fast setup and stress-free operation. Its simple graphical interface, 8″ touchscreen, pre-configured settings, and intuitive menu navigation allow rapid settings and changes for a wide range of patients.
Maintenance and service

Maintenance and service

Trilogy EV300 includes on-site and phone support, educational training resources, extended warranties, and maintenance plans. It only requires preventative maintenance once every year, and minimal equipment is needed for calibration. With limited support and upkeep required, and a field service option, Trilogy EV300 is easy and affordable to maintain.
Tailored ventilation

Tailored ventilation

Proven innovations are designed to treat the varying needs of respiratory insufficiencies. AVAPS automatically adjusts the ventilator support to reach the desired tidal volume, while Auto EPAP proactively adjusts to the lowest effective pressure to manage the upper airway. Auto Backup delays a machine breath until your patient exhales to maximize comfort.

Cross-setting versatility

Trilogy EV300 ventilator is equipped with features to treat chronic and critical patients in any hospital setting. A modular oxygen blender and enhanced shock and vibration technology allows for smooth transport and intra-hospital transitions.

Portability for more freedom

Trilogy EV300 gives patients and the clinicians overseeing them a new level of freedom and mobility. It features a battery life of 15 hours so patients can be transitioned between hospital departments with the peace of mind that their ventilator will continue to function flawlessly. Trilogy EV300 is easy to mount onto a roll-stand.

Digital Auto-Trak

Improve patient-ventilator synchrony with Trilogy EV300’s autonomously adaptive algorithm. The Digital Auto-Trak setting provides an enhanced triggering response for patients with minimal respiratory effort while lessening the need for manual adjustments.

Do you want to know what it means when products are certified for European Union Medical Device Regulations (EU MDR)?
Click here to learn more

  • Specifications:

    Alarms
    Tidal Volume
    • OFF, 10 – 2000 ml
    Inspiratory Pressure
    • 1 – 90 cmH₂O
    Minute Ventilation
    • OFF, 0.2 – 30 L/min
    Circuit Disconnection
    • OFF, 5 – 60 sec
    Respiratory Rate
    • OFF, 1 – 90 BPM
    Apnea Interval
    • 5 – 60 sec
    Controls
    FiO₂
    • 21% – 100%
    Flow pattern
    • Square, Ramp
    Flow trigger sensitivity
    • 0.5 – 9 l/min
    IPAP
    • 3 – 60 cmH₂0
    EPAP/CPAP
    • 3 – 25 cmH₂0
    Rise time
    • 0-6 sec
    Inspiratory time min/max
    • 0.3 – 3.0 sec
    AVAPS with passive circuit
    • PSV, S/T, and A/C-PC modes only
    Tidal volume
    • 35 – 2000 ml on Dual Limb and Active Flow circuits, 50 – 2000 ml on passive and active PAP circuits
    PEEP
    • 0 – 35 cmH₂0 for active circuits 3 – 25 cmH₂0 for passive circuits
    Pressure support/control
    • 0 – 60 cmH₂0
    Breath rate
    • 0 – 80 BPM
    Inspiratory time
    • 0.3 – 5.0 sec
    Backup ventilation
    • ON – OFF
    Flow cycle sensitivity
    • 10% – 90% of peak flow
    Triggering and cycling
    • Off, Auto-Trak, Sensitive Auto-Trak, and Flow Trigger
