Product Description :

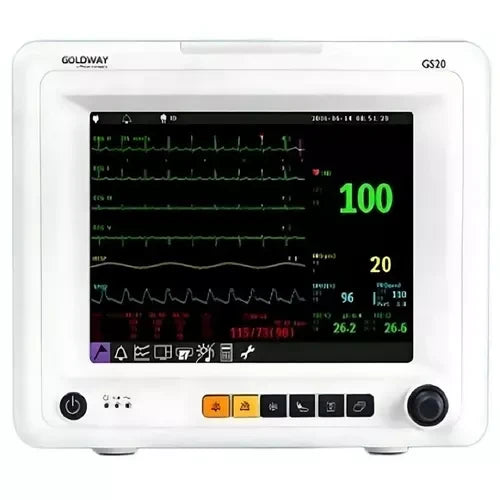

The Philips Goldway Gs20 Patient Monitor is a highly efficient, cost-effective, and dependable medical tracking solution designed to meet the daily demands of low-to-medium acuity clinical environments. Combining Philips’ globally trusted measurement expertise with a practical, streamlined design, the Gs20 is an ideal choice for general hospital wards, recovery rooms, outpatient clinics, and step-down units. It provides healthcare professionals with the essential physiological data required to make confident, timely clinical decisions without operational complexity.

Technical Specifications :

Technical Category Specification Details
Display & Interface

• Screen: 10.4-inch Color TFT LCD display (4:3 aspect ratio)



• Resolution: $800 \times 600$ pixels



• Waveforms: Max 11 channels concurrently with auto-height adjustment



• Interface: Rotary navigation wheel, fixed quick-access keys (Touchscreen optional)
Patient Demographics Configurable settings for Adult, Pediatric, and Neonatal patients
ECG Monitoring

• Algorithms: Market-proven Philips ECG processing



• Leads: 3-lead (I, II, III) or 5-lead (I, II, III, aVR, aVL, aVF, V) selectable



• HR Range: 15 to 300 bpm (Adult/Pediatric); 15 to 350 bpm (Neonatal)



• Diagnostics: 21-lead arrhythmia analysis, Pacemaker detection, ST segment measurement ($-2.5\text{ mV}$ to $+2.5\text{ mV}$)



• Protection: Built-in electrosurgical and defibrillator shielding
SpO2 (Pulse Oximetry)

• Technology: Philips FAST SpO2 (optimized for motion artifact & low perfusion resistance)



• Range: 0% to 100%



• Accuracy: $\pm2\%$ within the 70%–100% range
NIBP (Non-Invasive Blood Pressure)

• Method: Automatic oscillometric step-deflation technology



• Parameters: Systolic, Diastolic, Mean Arterial Pressure (MAP), Pulse Rate



• Operating Modes: Manual, Auto, and STAT



• Auto Intervals: Selectable from 3 minutes up to 480 minutes



• Max Cuff Pressure: Adult/Pediatric: 300 mmHg; Neonate: 150 mmHg
Respiration Rate (RESP)

• Method: Thoracic impedance (via RA-LL lead)



• Range: 0 to 150 rpm



• Accuracy: $\pm1\text{ rpm}$ (up to 120 rpm)



• Safety: Adjustable Apnea Alarm threshold (10 to 60 seconds)
Temperature (TEMP)

• Channels: Dual-channel monitoring ($T_1, T_2$, and Delta T)



• Range: 0°C to 50°C (32°F to 122°F)



• Accuracy: $\pm0.1^\circ\text{C}$ (excluding probe error)
Data Storage & Trends

• Trend Memory: Up to 1200 hours of trend graphs and tables



• NIBP Logs: Stores up to 1600 discrete NIBP measurement events



• Waveform Recall: Up to 120 minutes of continuous full-disclosure ECG review
Optional Configurations

• Built-in 3-channel thermal recorder/printer



• Microstream EtCO2 (Capnography via Oridion technology)



• 2-Channel Invasive Blood Pressure (IBP)
Power & Battery System

• AC Input: 100–240 VAC, 50/60 Hz



• Internal Battery: Rechargeable 11.1V Lithium-ion battery (4800 mAh)



• Runtime: Up to 2.5 hours of continuous cordless operation
Physical Attributes

• Dimensions: 316 mm $\times$ 265 mm $\times$ 131 mm (W $\times$ D $\times$ H)



• Weight: Approx. 3.6 kg (with battery installed)



• Design: Fanless cooling structure to reduce noise, dust collection, and risk of cross-infection
Connectivity & Network

• Central Station: Bi-directional LAN networking to Philips Efficia CMS200 Central Station



• Inter-bed Network: Bed-to-bed overview function (view up to 32 local monitors without a CMS)



• Data Output: Standard HL7 protocols for seamless Electronic Medical Record (EMR/HIS) integrationFea



Features :

Key Features of the Philips Goldway Gs20

  • 10.4-Inch Color TFT Screen: A crisp, high-contrast display that supports up to 11 concurrent waveform channels, featuring large, color-coded numeric readouts for instant scannability.

  • Market-Proven Philips Algorithms: Utilizes clinically validated, proprietary algorithms for core vitals to provide stable, reliable measurements even under low perfusion or patient motion.

  • Philips FAST SpO2 Technology: Specially designed to reduce motion artifacts and maintain highly accurate oxygen saturation readings in challenging patient conditions.

  • Comprehensive Cardiac Analysis: Features standard 3/5-lead ECG monitoring equipped with automatic 21-lead arrhythmia analysis, continuous S-T segment evaluation, and built-in pacemaker detection.

  • Advanced Clinical Software Upgrades: Supports critical care monitoring expansions, including Microstream EtCO2 (powered by Oridion technology) and 2-Channel Invasive Blood Pressure (IBP).

  • Fanless Cooling Structure: Eliminates internal fans to deliver completely silent operation, minimize dust accumulation, and significantly reduce the risk of clinical cross-infection.

  • Intelligent Bed-to-Bed Overview: Allows nursing staff to view real-time data from up to 32 other networked monitors directly on a single screen without requiring a central nurse station.

  • Extensive Internal Memory: Retains critical patient data across shift changes, storing up to 1200 hours of trend graphs/tables, 1600 NIBP logs, and 120 minutes of full-disclosure ECG waveforms.

  • Seamless Hospital EMR Integration: Outputs clinical patient data using standard HL7 protocols for direct, streamlined synchronization with Hospital Information Systems (HIS).

Highlights :

  • Trusted Brand Reliability: Combines Philips' world-class engineering and advanced clinical algorithms with a practical, cost-effective design tailored for daily ward operations.

  • Enhanced False-Alarm Reduction: Employs smart filtering technology to distinguish between true patient distress and motion artifacts, reducing alarm fatigue for nursing staff.

  • Built-in Bed-to-Bed Connectivity: Offers cross-network visibility, enabling clinicians to check vitals from up to 32 other local monitors right from the patient’s bedside screen.

  • Hygienic Fanless Operation: Built entirely without internal cooling fans, ensuring completely silent operation and limiting dust circulation to improve infection control in sterile spaces.

  • Seamless EMR Data Flow: Exports standard HL7 data protocols directly into the Hospital Information System (HIS), removing the need for manual vitals documentation.

  • Ready for Patient Transport: Features a lightweight 3.6 kg footprint with a built-in top handle and a 2.5-hour rechargeable lithium-ion battery, making intra-hospital transfers smooth and uninterrupted.

In The Box :

Here is the standard "in the box" packing list and accessories included with a brand-new Philips Goldway Gs20 Patient Monitor:

  • Philips Goldway Gs20 Patient Monitor Main Unit

  • Built-in Rechargeable Lithium-ion Battery (4800 mAh)

  • Philips ECG Trunk Cable (3-Lead / 5-Lead Selectable)

  • ECG Lead Wires

  • Philips FAST SpO2 Finger Sensor (Adult)

  • SpO2 Extension Cable

  • NIBP Cuff (Adult Size)

  • NIBP Inflation Extension Hose

  • Temperature Skin Probe / Sensor

  • AC Power Cord

  • Equipotential Grounding Wire

  • User Manual / Quick Start Guide
