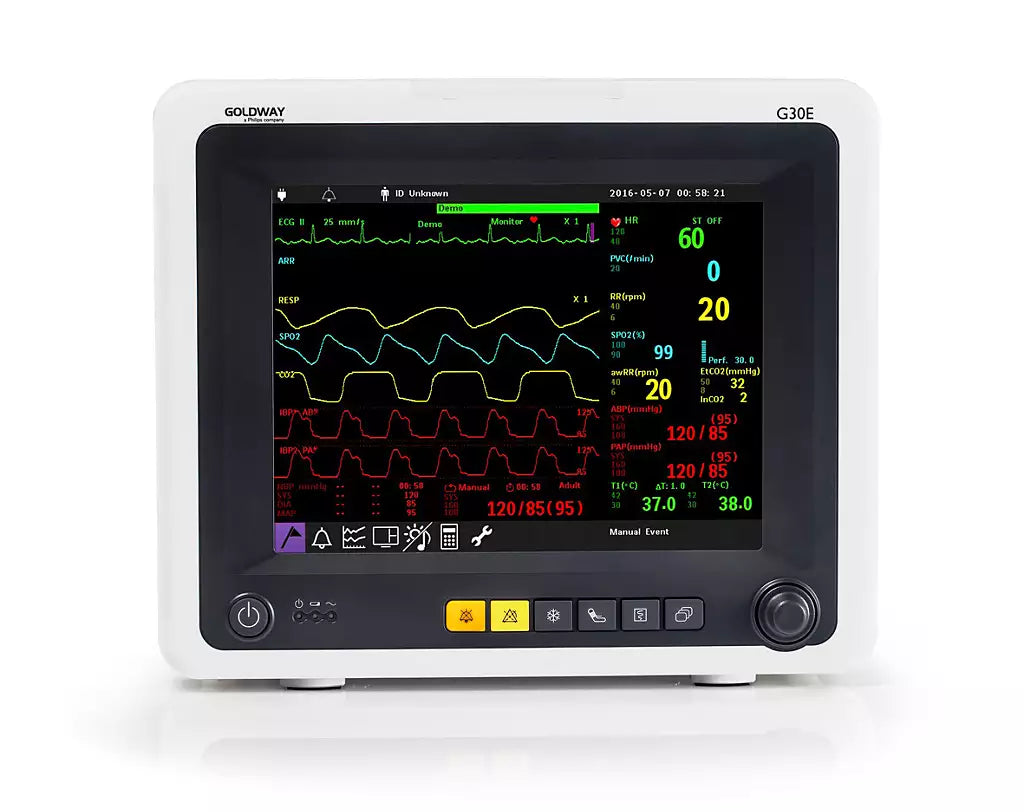

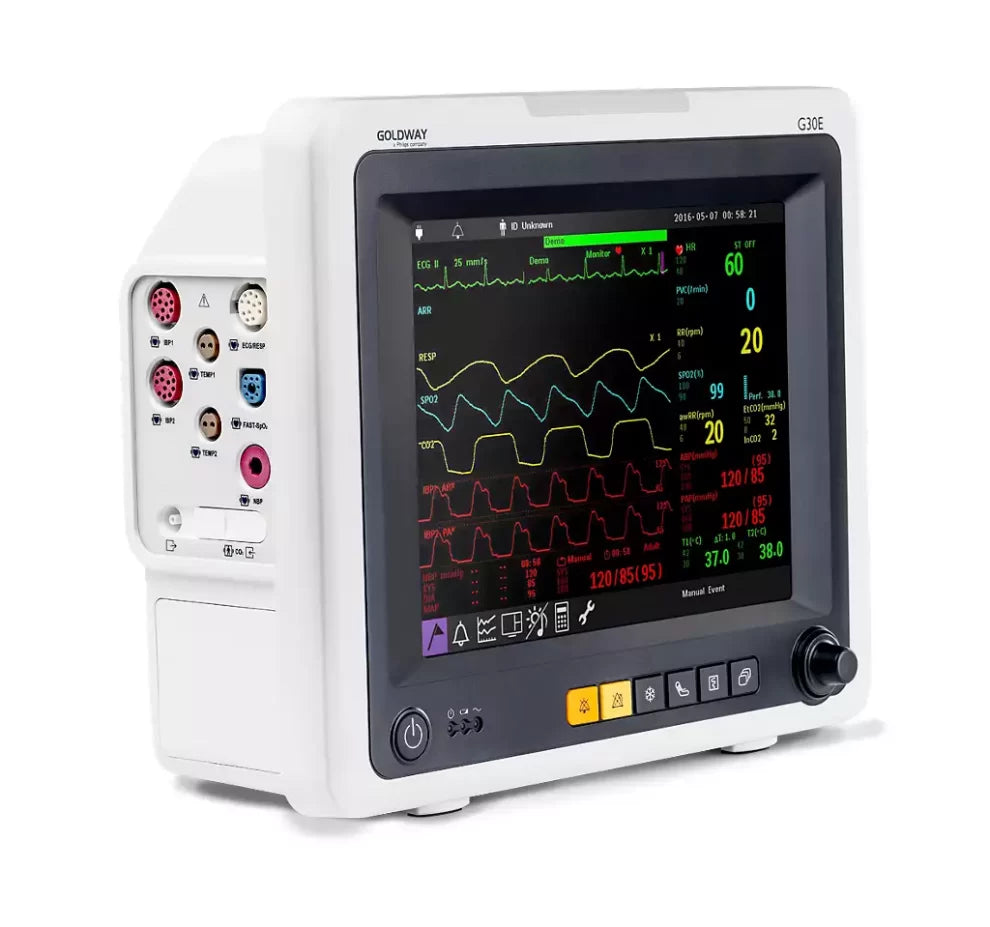

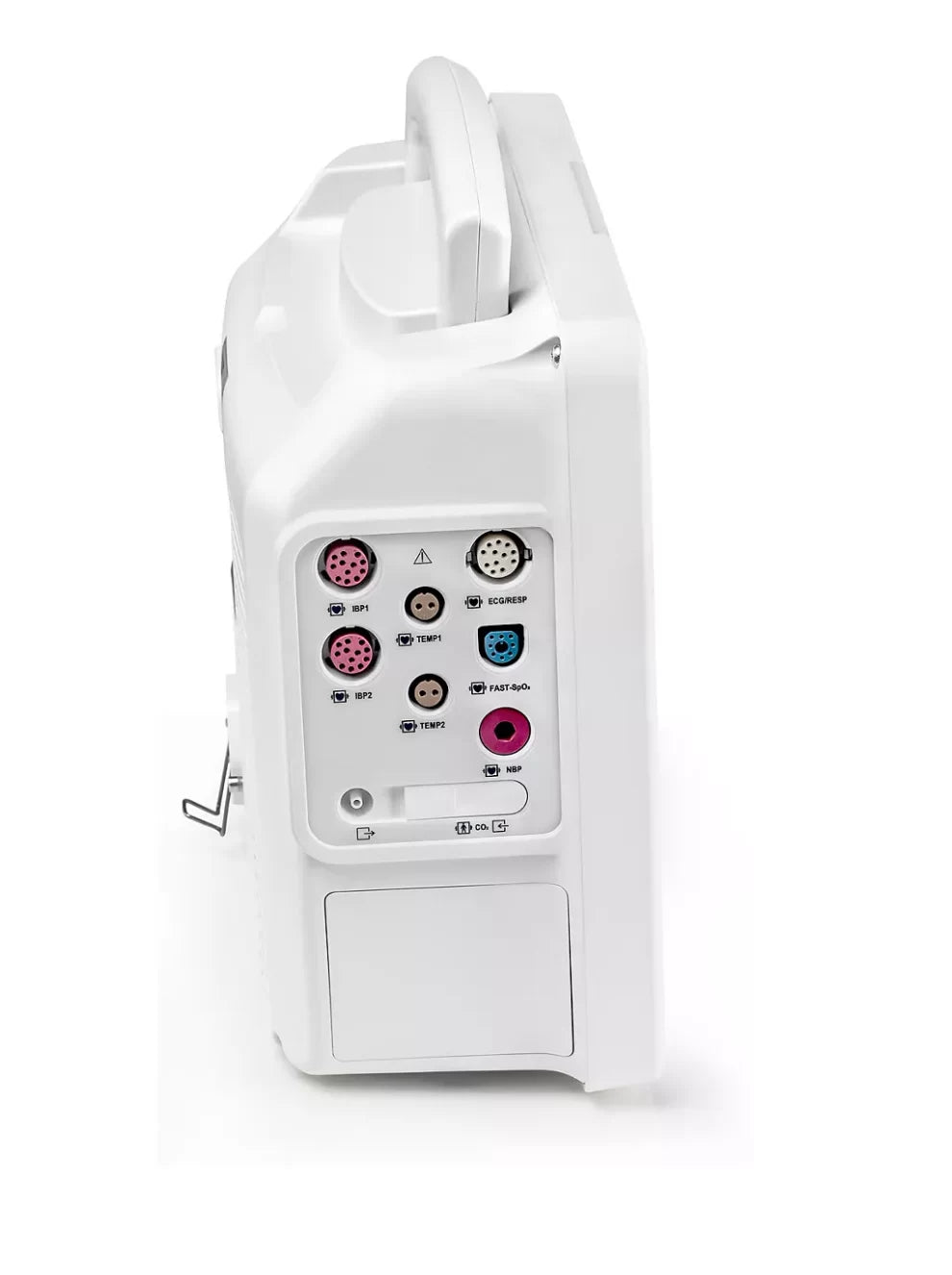

The Philips Goldway G30E is a preconfigured, cost-effective, and easy-to-learn bedside patient monitoring solution. Designed to support various clinical environments and patient acuity levels, it incorporates market-proven Philips technology to provide advanced functionality with a low total cost of ownership. It features a lightweight, ergonomic construction that allows it to be easily mounted on a roll stand and moved between bedside stations.
| Parameter | Technical Details |
| Display | 10.4-inch Color TFT LED display (4:3 aspect ratio), 800 x 600 resolution. Displays up to 11 waveforms simultaneously with auto-channel height adjustment. Optional touchscreen. |
| Electrocardiogram (ECG) | Selectable 3-lead (I, II, III) or 5-lead (I, II, III, aVR, aVL, aVF, V). Heart Rate range: 15–300 bpm (Adult/Pediatric), 15–350 bpm (Neonatal). Built-in electrosurgical and defibrillation protection. |
| Arrhythmia & ST | Built-in Philips ST/AR algorithm supporting 21 to 23 arrhythmia calls and continuous ST segment analysis. |
| Non-Invasive Blood Pressure (NIBP) | Automatic oscillometric method tracking Systolic, Diastolic, and Mean Arterial Pressure (MAP). Operating modes: Manual, Auto, and STAT. |
| Pulse Oximetry (SpO₂) | Integrated Philips FAST SpO₂ technology. Measurement range: 0% to 100%. Highly accurate during patient motion or low perfusion. |
| Respiration (RESP) | Thoracic impedance method via RA-LL lead. Range: 0 to 150 rpm. Features an adjustable apnea alarm (10 to 60 seconds). |
| Temperature (TEMP) | 2-channel continuous measurement supporting a range from 0 to 50°C (32 to 122°F). |
| Optional Upgrades | Supports 2-channel Invasive Blood Pressure (IBP) and Microstream Capnography (etCO₂ via Oridion technology). |
| Data & Storage | Internal storage for up to 1,200 hours of trend graphs, 1,600 NIBP records, and 200 alarm/arrhythmia event reviews. Optional built-in 3-channel thermal recorder. |
| Physical Dimensions | Weight: ~4 kg (including battery). Dimensions: 316 mm × 265 mm × 131 mm. |
| Power & Battery | 110–240V, 50/60Hz AC power. Includes an internal rechargeable Lithium-Ion battery providing up to 2.5 hours of continuous operation. |
| Feature | Details |
| Advanced Philips Algorithms | Features the trusted Philips ST/AR ECG algorithm supporting arrhythmia detection, ST segment analysis, and pacemaker detection. |
| FAST SpO₂ Technology | Delivers accurate pulse oximetry tracking even during patient movement or low tissue perfusion. |
| Flexible Interface Layouts | Provides customized viewing modes including Big Number mode, minitrends, and OxyCRG (oxygen cardiorespirography) for neonatal tracking. |
| Workflow Efficiency | Includes 4 pre-defined user profiles and a built-in timer to help clinicians rapidly adjust settings for changing patient types. |
| Networking Integration | Comes standard with LAN capabilities for bi-directional communication with the Philips Efficia CMS200 central monitoring system and outputs standard HL7 data. |
| Consumables Synergy | Fully compatible with affordable Philips Efficia consumables, allowing hospitals to share supplies across different care units. |
Critical Care & Sub-Acute Wards: Provides continuous, reliable bedside oversight in Intermediate Care Units (IMCU), step-down units, and general medical-surgical wards.
Operating Rooms & Recovery Wards: Delivers real-time vital tracking during anesthesia administration and immediate post-operative recovery (PACU).
Emergency & Transport Monitoring: The compact 4 kg frame and 2.5-hour internal battery allow seamless patient tracking during intra-hospital transport or inside emergency departments and ambulances.
Multi-Age Demographics: Built with specific diagnostic configurations to seamlessly scale between adult, pediatric, and neonatal patients.
Trusted Clinical Accuracy: Leverages the exact same core monitoring algorithms utilized in premium Philips care systems.
User-Centric Design: Built with physical quick-access keys, an intuitive software menu, and a high-visibility screen to reduce staff training friction.
Cost-Effective Scalability: Delivers advanced options like IBP and etCO₂ plug-ins only when needed, reducing unnecessary upfront technology expenditures.
Philips Goldway G30E Patient Monitor Main Unit
Rechargeable Lithium-Ion Battery (Internal)
Standard ECG Cable (5-Lead or 3-Lead option)
Philips FAST SpO₂ Finger Sensor
Reusable NIBP Cuff with Interconnect Tubing
Temperature Probe (Skin surface or rectal/esophageal type)
AC Power Cord
User Manual & Quick Reference Guide
