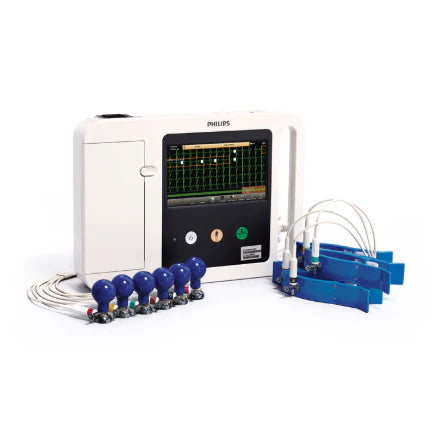

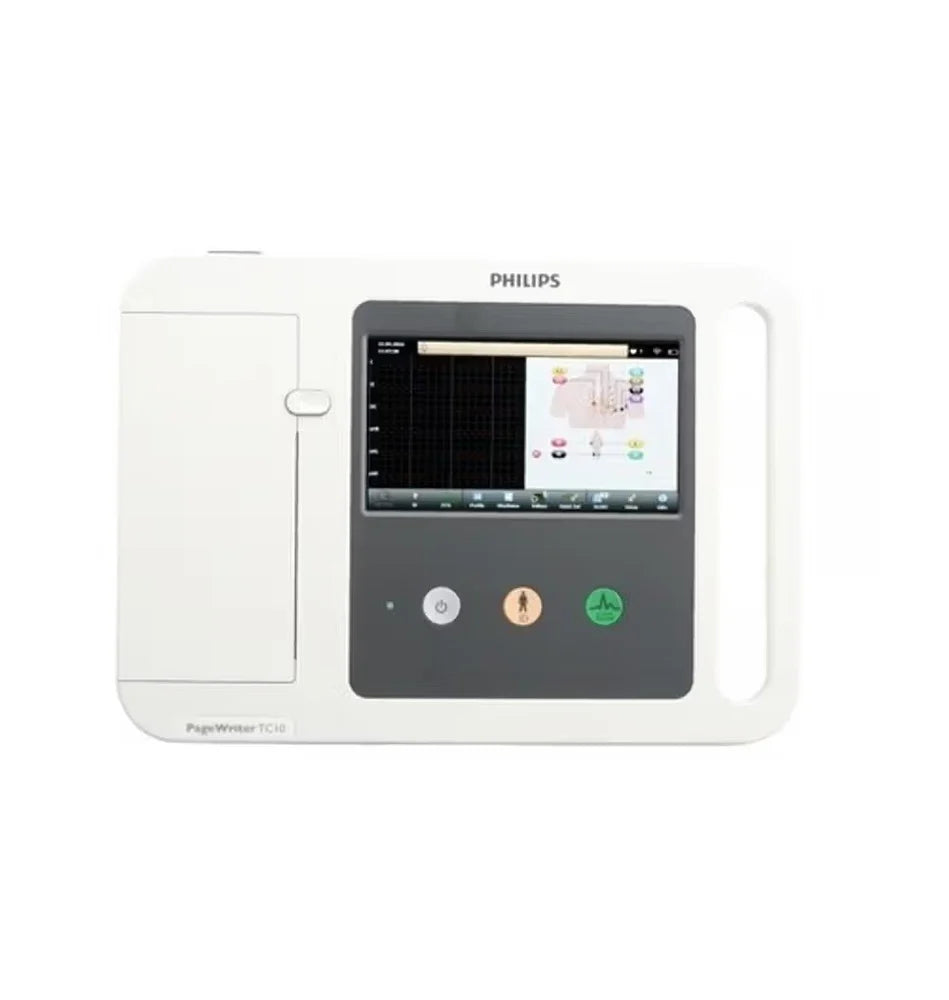

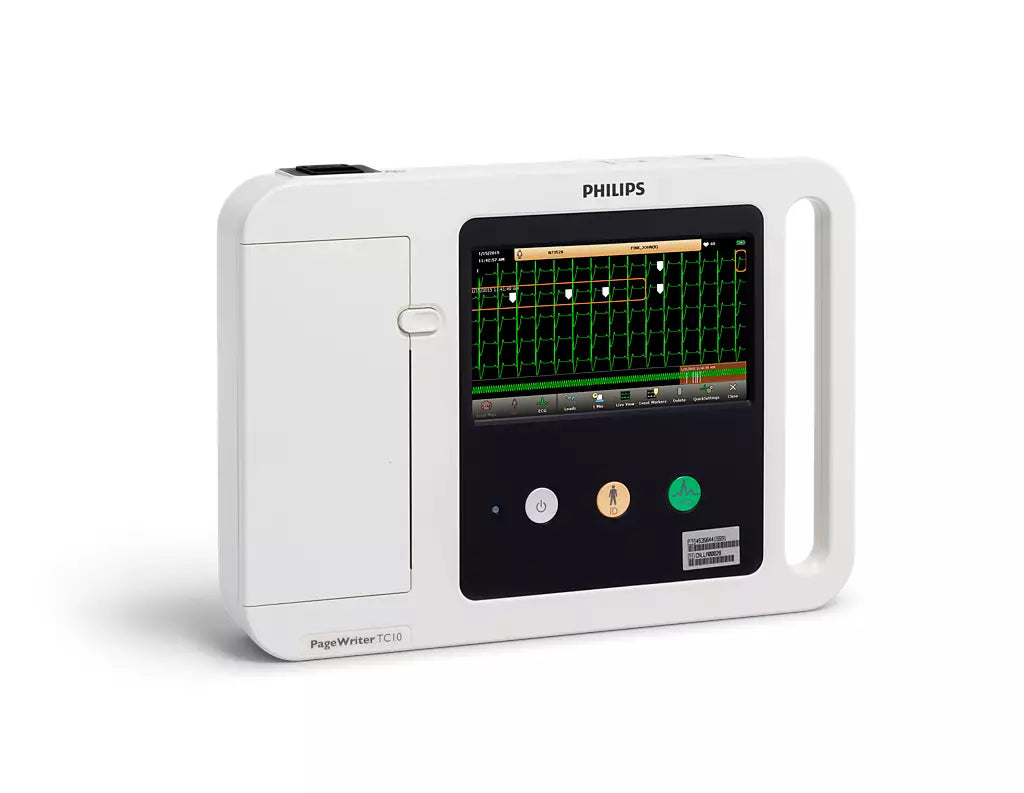

Philips 12-Channel ECG Machine - TC10 Pagewriter

Kaarya

Philips 12-Channel ECG Machine - TC10 Pagewriter

Rs. 0.00
Rs. 0.00
Sold out
Tax included. Shipping calculated at checkout.
23 people are viewing this right now

Availability: Low stock: 5 left

Our Advantages

  1. 1. GST Invoice
  2. 2. Brand New Products
  3. 3. Easy Replacements
  4. 4. Authorized Distributor
  5. 5. Best Price Guaranteed
  6. 6. Multiple Payment Options
SKU: 18736

Shipping & Returns

Free shipping and returns available on all orders!

We ship all US domestic orders within 5-10 business days

View full product details

Product Description

The Philips PageWriter TC10 is a highly portable, advanced 12-channel diagnostic cardiograph designed to simplify clinical workflows and improve diagnostic speed. Built on an open architectural platform, it integrates seamlessly into a hospital's existing IT infrastructure. It features an intuitive touchscreen with a simple "1-2-3" operation model, allowing clinicians to acquire, analyze, store, and print critical cardiac data efficiently across multiple hospital environments.

Technical Specifications

Parameter Technical Details
Display & Interface 7-inch resistive touchscreen, 800 x 480 pixel resolution, 64K colors. Features a context-sensitive application layout with full-screen ECG print previews.
ECG Acquisition Simultaneous 12-lead acquisition capturing high-fidelity data at 8,000 samples per second on each patient connection. Full 5-minute history layout.
Diagnostic Algorithm Built-in Philips DXL ECG Algorithm providing advanced interpretation, clinical decision support, and specialized STEMI diagnostic aids (including Culprit Artery identification).
Signal Quality Aids Anatomical lead mapping, color-coded lead tracking (4 distinct colors), "Leads-Off" visual indicators, and LeadCheck software to detect 20 types of lead reversals.
Printer Integrated high-resolution digital thermal-sensitive array printer. Print resolution: 200 dpi (voltage axis) x 500 dpi (time axis) at 25 mm/sec speed on 110mm paper.
Data Formats Generates native digital reports in PDF, XML, and DICOM configurations for direct compatibility with hospital PACS and EMR systems.
Storage Capacity Internal memory holds up to 200 ECG records. Expandable via external USB devices to hold an additional 200 ECGs.
Connectivity Standard LAN ports; optional integrated Wireless LAN (802.11 a/b/g) supporting secure, bidirectional XML, HL7, and DICOM MWL protocols.
Battery & Power Rechargeable Lithium-ion battery (11.1V, 4800 mAh). Fully charges in less than 4 hours. Supports up to 60W maximum power consumption (100-240V AC, 50/60Hz).
Battery Endurance Yields up to 10 hours of continuous standby monitoring, printing of 300 typical patient reports, or 120 minutes of 6-lead rhythm recording on a single charge.
Physical Profile Lightweight frame with a built-in carrying handle. Weight: 2.5 kg (5.5 lbs) including battery. Dimensions: 65 mm x 338 mm x 240 mm.



Key Features

  • Intuitive 1-2-3 Workflow Touchscreen: Visually guides users through setup, signal checking, and printing, minimizing clinical errors and staff training time.

  • World-Class Philips DXL Algorithm: Delivers industry-standard cardiology interpretations and acts as a second pair of eyes to pinpoint specific critical thresholds.

  • Automated Communication Hooks: Features one-button automated reporting pathways via HL7, standard XML configurations, or DICOM formats.

  • Advanced Lead Maps: Shows clear, instant graphical displays of exactly where loose electrodes are located or if leads have been placed backward.

  • Scalable Architecture: Built on an adaptable software platform, allowing clinics to upgrade or unlock software accessories as infrastructure demands grow.

Use Cases

  • Bedside Diagnostics & Code Teams: The lightweight 2.5 kg weight and durable top handle make it perfect for rapid deployment during emergency cardiac alerts across patient floors.

  • Ambulatory Care & Mobile Clinics: A 10-hour battery profile makes it ideal for field diagnostics, home care screening, and satellite medical operations where power sources may fluctuate.

  • High-Volume Cardiology Departments: Rapid automated worklist downloads via DICOM MWL optimize workflows in diagnostic imaging centers and specialized cardiac clinics.

  • Emergency Rooms (ER): Offers swift critical-value assessments for potential STEMI patients, allowing doctors to make immediate treatment choices.

Product Highlights

  • Cardiologist Choice Reliability: Inherits the elite technology stack of the premium Philips PageWriter TC series within an affordable, highly portable layout.

  • Resilient Connectivity Setup: Protects confidential medical data with secure hospital networks while giving clinicians instant access to previous baseline records.

  • Uncompromised Battery Power: Operates a full standard shift without a power adapter, making it the highest endurance machine in its class.

In the Box

  1. Philips PageWriter TC10 12-Channel Cardiograph Main Unit

  2. Rechargeable Lithium-Ion Battery (Internal/Replaceable)

  3. 10-Lead Patient ECG Trunk Cable

  4. Standard Adapter Attachments (Alligator Clips / Tab / Snap Connectors)

  5. Reusable Chest Bulb Electrodes & Limb Clamps

  6. Thermal Printer Paper Roll (110 mm)

  7. ECG Conductivity Gel Bottle

  8. AC Power Supply Cable

  9. Comprehensive User Manual & Interactive Quick Guide
