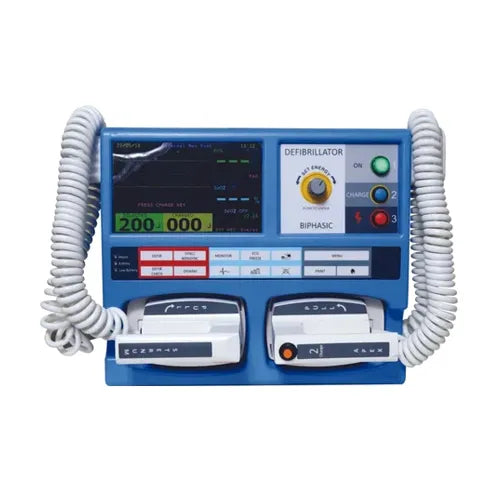

The Nasan Medical Sanjeevani 1006 is an advanced, life-saving biphasic defibrillator engineered for rapid medical response and multi-parameter monitoring. Featuring a bright 7-inch color TFT display and an integrated 2-inch thermal printer, the unit supports quick 1-2-3 step manual defibrillation alongside optional diagnostic features like AED, SpO2, NIBP, EtCO2, and Pacing. It uses a Biphasic Truncated Exponential (BTE) waveform to ensure maximum efficacy in restoring normal cardiac rhythms while delivering critical patient data tracking for medical teams.
| Parameter | Specification |
| Display | 7-inch Color TFT Screen (150 mm $\times$ 90 mm display area) |
| Defibrillator Waveform | Biphasic Truncated Exponential (BTE) |
| Energy Selection (Manual) | 2 to 200 Joules across 12 steps (Optional up to 360J) |
| Charging Time | 6 to 8 seconds on Mains power |
| Synchronous Cardioversion | Energy delivery starts within 60 ms of the QRS Peak |
| Patient Impedance Range | 25 $\Omega$ to 150 $\Omega$ |
| ECG Frequency Response | 0.5 Hz to 35 Hz |
| ECG Lead Selection | Lead I, II, and III (via paddles/pads or 5-lead cable) |
| CMRR | $>$ 90 dB |
| Memory Storage | 250 shock events with 10 seconds of recorded ECG data |
| Integrated Recorder / Printer | 2-inch (58mm) built-in thermal printer |
| Power Input | 90 - 260 VAC, 50 Hz, Single Phase |
| Internal Battery | 12V / 4.5Ah Rechargeable Sealed Lead Acid (SLA) |
| Battery Capacity | 3 to 4 hours backup time or 70 - 100 shocks at max energy |
| Dimensions & Weight | ~ 275 $\times$ 323 $\times$ 200 mm (without paddles) | Weight: ~ 8 kg |
Intuitive 1-2-3 Operation: Simple interface layout that ensures clear, step-by-step guidance under high-pressure cardiac emergencies.
Variable Energy Selection: Comprehensive manual adjustments ranging from low-energy settings (2J) up to standard therapeutic shocks.
Dual Patient Paddle Assembly: Integrated adult and pediatric paddles built into a single, cohesive handle to minimize switching time.
Synchronous Cardioversion: Detects QRS peaks precisely to deliver synchronized therapy for unstable atrial or ventricular arrhythmias.
Voice Prompt Facility: Clear voice alerts and text readouts assist operators dynamically through the rescue process.
Integrated 2-Inch Thermal Printer: Automatically documents the event status, printing 5 seconds of pre- and post-shock ECG data along with date, time, and energy parameters.
Modular Multi-Parameter Flexibility: Fully upgradeable from a standard manual defibrillator into a comprehensive multi-para monitor (adding AED mode, Non-Invasive Blood Pressure, SpO2, and End-Tidal CO2 monitoring).
Comprehensive Data Retention: Features an internal summary log that stores up to 250 distinct shock events alongside historical ECG tracking for seamless clinical review.
Intensive Care Units (ICU) & Operating Rooms: Continuous monitoring of unstable cardiac patients with quick manual override capabilities.
Emergency Rooms (ER) & Trauma Centers: High-speed charging options for immediate code-blue responses.
Ambulatory & In-Hospital Transport: Built-in handle and deep battery backup allow it to operate safely on crash carts while moving patients between wards.

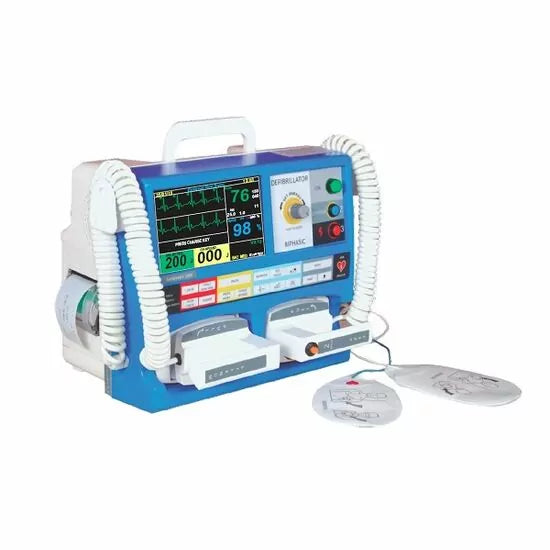

Nasan Medical Sanjeevani 1006 Defibrillator Main Unit
Integrated External Adult & Pediatric Combination Paddles
5-Lead ECG Patient Cable
Thermal Printing Paper Roll (58mm)
AC Power Input Cable
Rechargeable 12V Internal Battery (Pre-installed)
User Operation Manual & Certificate of Calibration
