Mindray uMEC-120 patient monitor

Kaarya

Mindray uMEC-120 patient monitor

Rs. 0.00
Rs. 0.00
Sold out
Tax included. Shipping calculated at checkout.
26 people are viewing this right now

Availability: Low stock: 5 left

Our Advantages

  1. 1. GST Invoice
  2. 2. Brand New Products
  3. 3. Easy Replacements
  4. 4. Authorized Distributor
  5. 5. Best Price Guaranteed
  6. 6. Multiple Payment Options
SKU: 18800

Shipping & Returns

Free shipping and returns available on all orders!

We ship all US domestic orders within 5-10 business days

View full product details

Product Description :

The Mindray uMEC-120 is a highly efficient, durable, and user-friendly multi-parameter patient monitor designed to deliver reliable vital sign tracking across various clinical environments—such as emergency departments, ICUs, sub-acute units, and general wards. It is suitable for adult, pediatric, and neonatal patients.

Technical Specifications :

Category Feature / Parameter Specifications & Capabilities
Physical & Display Screen & Resolution 12.1-inch color LED Touchscreen ($1280 \times 800$ pixels); displays up to 10 waveforms
  Dimensions & Weight 345 mm $\times$ 160 mm $\times$ 255 mm; < 4.0 kg (with standard battery)
  Design & Protection Fanless design (silent, anti-infection); IPX1 water-resistant; 0.75m drop protection
Monitoring Parameters ECG (3/5-Lead)

HR Range: 10–300 bpm (Adult), 10–350 bpm (Ped/Neo)



• 27 classifications of arrhythmia and ST segment analysis (-2.5 to +2.5 mV)
  SpO2

Range: 0% to 100% (Accuracy: ±2% between 70%–100%)



• Features motion-tolerant and low-perfusion algorithms
  NIBP

Modes: Manual, Auto, STAT, Sequence (Oscillometric method)



• Systolic Range: 25–290 mmHg; Diastolic Range: 10–250 mmHg (Adult)
  Respiration (RESP) Range: 0–120 rpm (Adult), 0–150 rpm (Ped/Neo) via ECG or CO2; Accuracy: ±1 rpm
  Temperature (TEMP) Dual-channel (T1, T2, TD); Range: 0°C to 50°C; Accuracy: ±0.1°C
  Advanced Vitals (Optional) 2-channel IBP (-50 to 300 mmHg); EtCO2 (Sidestream/Mainstream); Cardiac Output (C.O.)
Data & Intelligence Internal Storage Capacity

• 1200 hours of trend data



• Up to 1600 NIBP entries



• 1800 alarm events / 128 Arrhythmia events



• 48 hours of full disclosure waveforms
  Clinical Tools (CAA) Integrated Early Warning Score (EWS) and Glasgow Coma Scale (GCS)
Power & Connectivity Power Input & Battery

100–240 VAC, 50/60 Hz; Built-in rechargeable Li-ion battery ($11.1 \text{ VDC}$)



• Up to 12 hours of continuous runtime
  Physical I/O Ports 1 $\times$ RJ45 Network, 2 $\times$ USB 2.0, 1 $\times$ VGA Output, 1 $\times$ Multifunctional Output (Nurse Call/Defib Sync)
  Wireless & Peripherals

Dual-band Wi-Fi (2.4G/5G); Central Monitoring System (CMS) compatibility



• Optional built-in 3-trace thermal recorder



Features :

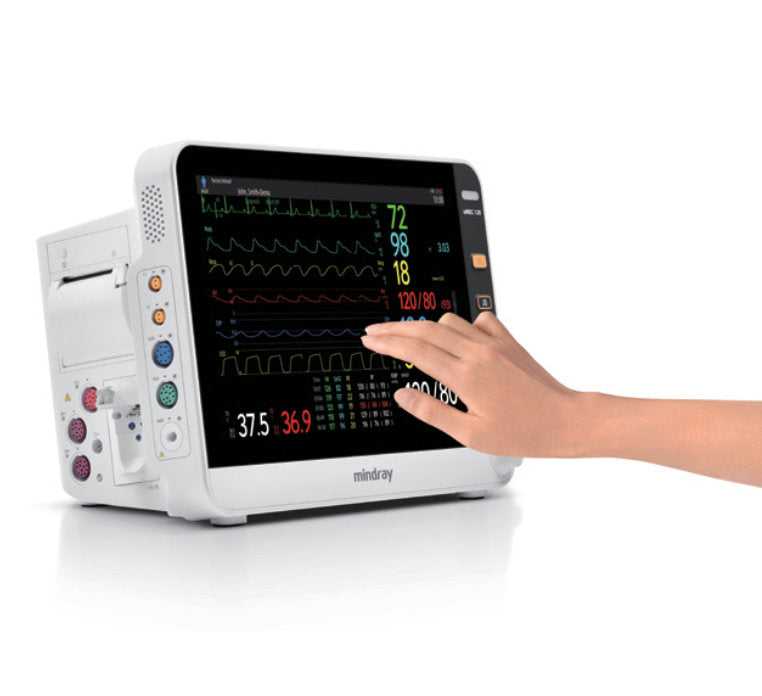

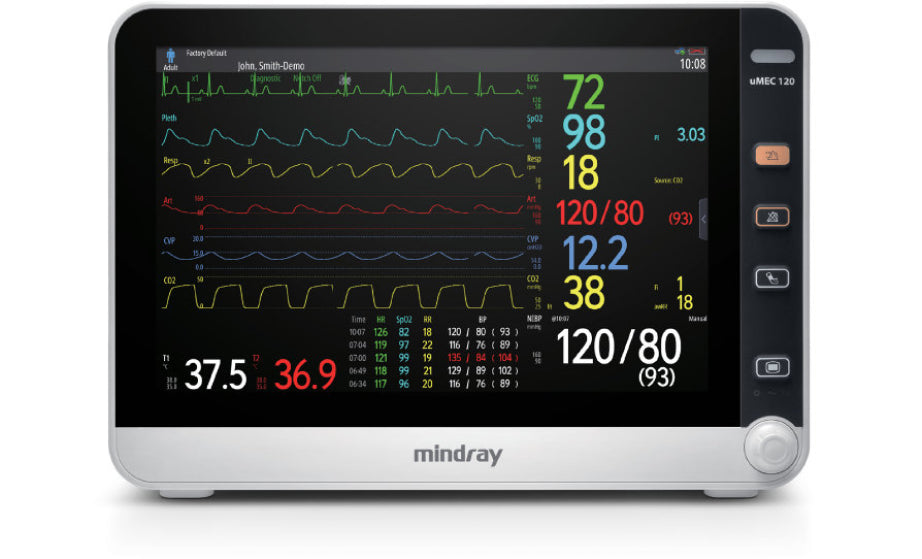

  • 12.1-Inch Color Touchscreen: Features a crisp $1280 \times 800$ resolution display that can view up to 10 waveform channels simultaneously.

  • Intuitive Gesture Controls: Designed with a flat user interface (UI) that supports swipe gestures to quickly adjust brightness, change alarm volume, or switch screens.

  • Patented Multi-Lead ECG Algorithm: Mindray's specialized cardiac processing ensures high tracing accuracy and dramatically cuts down on false alarms.

  • Fast-Measurement NIBP: Uses a specialized oscillometric technique to speed up cuff inflation and deflation, optimizing measurement times and patient comfort.

  • Motion-Tolerant SpO2: Features an anti-interference pulse oximetry algorithm to maintain steady, precise oxygen saturation readings even during patient movement or low perfusion.

  • 12-Hour Battery Life: Equipped with an ultra-long-lasting lithium-ion battery, making it highly reliable for continuous monitoring during intra-hospital transport.

  • Rugged, Fanless Build: Features a silent, dust-free design that minimizes hospital cross-contamination risks. It is built with IPX1 water resistance and 0.75-meter drop protection.

  • Clinical Assistive Applications (CAA): Ships with built-in scoring systems—including the Early Warning Score (EWS) and Glasgow Coma Scale (GCS)—to help caregivers quickly assess patient deterioration.

  • Massive Data Archiving: Built-in memory stores up to 1200 hours of trend graphs, 1600 NIBP entries, and 48 hours of full disclosure waveforms, with external export available via USB.

Highlights :

  • High-Resolution 12.1" Touchscreen: Features a crisp $1280 \times 800$ LED display with an intuitive, flat user interface and gesture controls (swiping to adjust volume or brightness) that can display up to 10 waveforms simultaneously.

  • Patented Advanced Algorithms: Equipped with Mindray's specialized multi-lead ECG, motion-tolerant SpO2, and quick-measurement NIBP technology to optimize diagnostic accuracy and minimize false alarms.

  • 12-Hour Battery Runtime: Outfitted with an ultra-long-lasting, built-in rechargeable lithium-ion battery that ensures continuous patient tracking during extended procedures or intra-hospital transport.

  • Rugged, Anti-Infection Design: Uses a fanless cooling structure to eliminate dust circulation and reduce cross-contamination risks. The physical build is IPX1 water-resistant, offers 0.75-meter drop protection, and withstands harsh hospital-grade disinfectants.

  • Built-in Clinical Intelligence: Includes integrated Clinical Assistive Applications (CAA) such as the Early Warning Score (EWS) and Glasgow Coma Scale (GCS) to help clinicians identify deteriorating patients rapidly.

  • Expanded Parameters: Supports essential vitals right out of the box with optional scaling for critical care environments via 2-channel Invasive Blood Pressure (IBP), Cardiac Output (C.O.), and EtCO2.

In The Box :

  • Mindray uMEC-120 Patient Monitor

  • Rechargeable Lithium-ion Battery

  • 3/5-Lead ECG Cable and Leadwires

  • Reusable SpO2 Sensor and Extension Cable

  • NIBP Cuff and Inflation Hose

  • Reusable Temperature Probe

  • Power Cord

  • Ground Wire

  • User Manual
