Availability: Low stock: 5 left
Couldn't load pickup availability
Free shipping and returns available on all orders!
We ship all US domestic orders within 5-10 business days

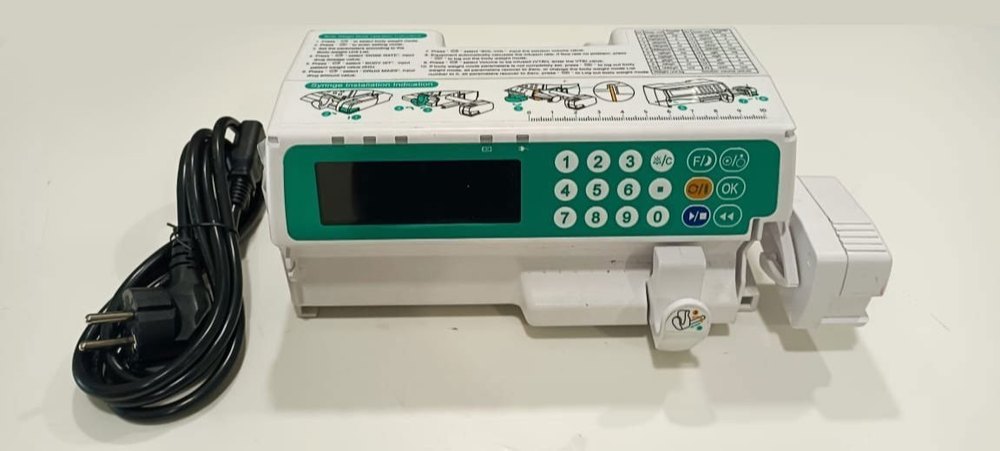

The Medevo SPA112 is a compact, stackable single-channel syringe pump designed for precise and safe intravenous administration of critical drugs and fluids. It features a dual-CPU safety architecture to ensure reliable performance during continuous medical therapies and is designed with an emphasis on clinical workflow efficiency, featuring intuitive digital controls and long-range visibility.
| Parameter | Specification Details |
| Channel Type | Single-channel, horizontally stackable design |
| Compatible Syringe Sizes | 5 ml, 10 ml, 20 ml (or 30 ml), and 50 ml (or 60 ml) |
| Infusion Modes | Rate Mode, Rate-Time, Rate-VTBI, Time-VTBI, Body Weight |
| Infusion Accuracy | ±2% (highly precise flow control) |
| Volume to be Infused (VTBI) | 0 to 9999.9 ml |
| Flow Rate Steps | 0.1 ml/h (for rates less than 100 ml/h); 1 ml/h (for rates greater than or equal to 100 ml/h) |
| Flow Rate Range |
• 5ml syringe: 0.1 to 150 ml/h • 10ml syringe: 0.1 to 300 ml/h • 20ml syringe: 0.1 to 600 ml/h • 30ml syringe: 0.1 to 900 ml/h • 50/60ml syringe: 0.1 to 1200 ml/h |
| Bolus / Purge Rate |
• 5ml: 0.1 to 200 ml/h • 10ml: 0.1 to 400 ml/h • 20ml: 0.1 to 800 ml/h • 30ml: 0.1 to 1200 ml/h • 50/60ml: 0.1 to 1800 ml/h |
| KVO (Keep Vein Open) Rate | Adjustable from 0.1 to 5.0 ml/h |
| Occlusion Pressure Levels | 3 levels adjustable (Low, Medium, High) |
| Max Infusion Pressure | 120 KPa |
| Drug Library | Built-in list supporting up to 20 drugs with drug code display |
| Display | 3.5-inch color LCD Screen |
| Battery Type & Runtime | Lithium Battery (11.1V / 2000mAh); provides greater than 8 hours of backup |
| Power Supply | AC: 100–240V, 50Hz/60Hz (Optional Ambulance DC: 12V) |
| Dimensions & Weight | 26 x 21.5 x 11 cm; approximately 2 kg |
| Safety Classification | Class I, Type CF, IPX4 splash-proof rating |
Dual-CPU Monitoring Architecture: Utilizes a master CPU and a monitoring CPU simultaneously to prevent hardware failures and ensure consistent infusion standards.
Automatic Syringe Recognition: Automatically detects the brand and physical size of the syringe loaded into the clamp.
Comprehensive Alarm Systems: Features audible and visible alerts for critical safety parameters: Auto Self-Test failure, Syringe Dislocation, Occlusion, Near End, Syringe Empty, VTBI Completion, Low Battery / Battery Exhausted, Motor Malfunction, Circuit Error, and AC Power Disconnection.
User-Friendly Numeric Input: Built-in numeric keypad allows for immediate, precise parameter configuration rather than scrolling through endless menus.
High-Visibility Display: Features a crisp 3.5-inch color LCD screen designed to remain legible up to a distance of 5 meters.

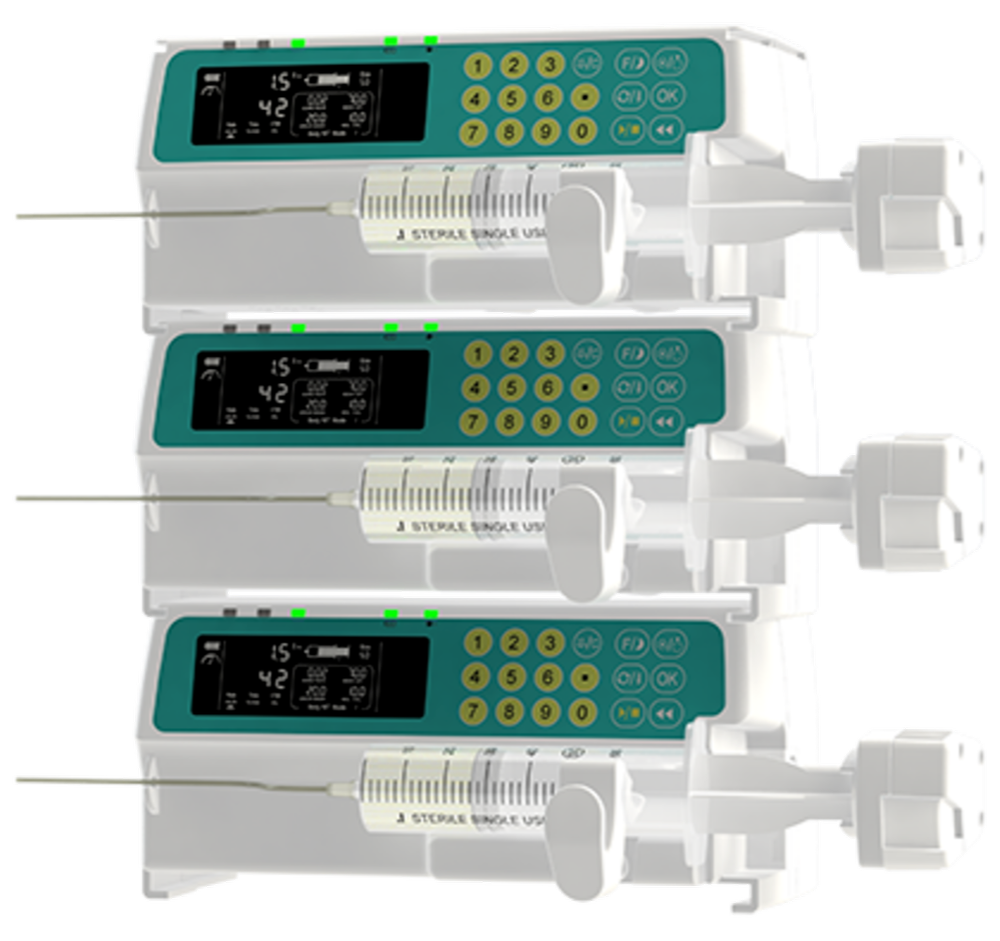

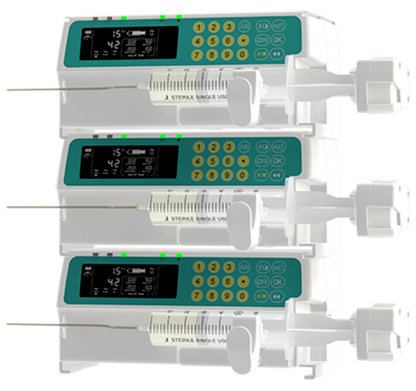

Space-Saving Space Stations: Free stacking functionality allows multiple single pumps to slot together cleanly on a single IV pole without specialized hardware.
One-Button Night Mode: One-click adjustment dims the screen backlight and indicators to minimize visual disturbance for the patient during resting hours.
Extension Line Grip: Includes a purpose-designed secure routing grip to manage lines cleanly and reduce pulling tension on the syringe.
Intensive Care Units (ICU & NICU): Perfect for managing precise micro-dosages of vasoactive or neonatal medications where multi-pump space allocation is highly limited.
Operating Theatres (OT) & Anesthesia: Allows continuous, metered delivery of intravenous anesthetics and muscle relaxants during surgical operations.
Patient Transfers / Ambulance Transport: Due to its light 2 kg frame, robust 8-hour lithium battery, and optional 12V DC input compatibility, it handles mobile emergency transport seamlessly.
1x Medevo SPA112 Syringe Pump Unit
1x AC Power Cable
1x IV Pole Mounting Clamp Attachment
1x User Manual & Documentation Guide
