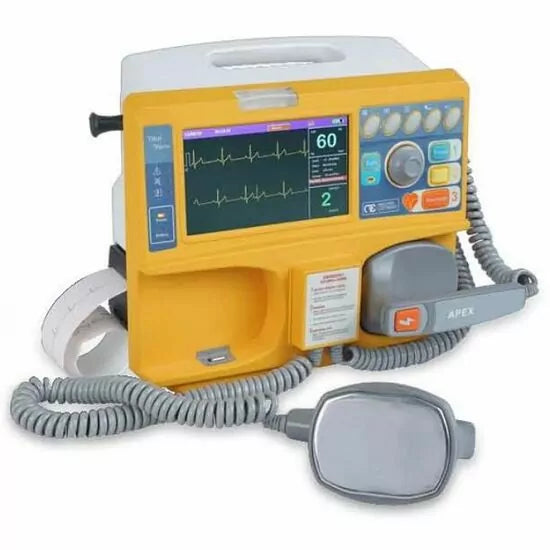

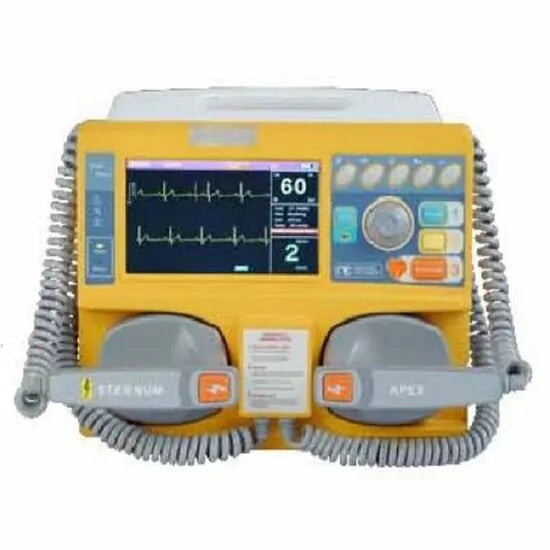

The Maestros Vital Wave is an advanced, highly portable biphasic defibrillator monitor designed to provide immediate cardiac resuscitation and real-time monitoring in critical care environments. Utilizing low-energy biphasic waveform technology, it reduces myocardial trauma while optimizing defibrillation efficacy. Equipped with a bright, high-resolution 7-inch color display and multi-mode clinical operational capabilities, it allows healthcare professionals to handle sudden cardiac arrest and manage underlying arrhythmias confidently.
| Parameter | Specification |
| Operating Modes | Manual Defibrillation, Synchronized Cardioversion, AED mode (Pacer available on Pro version) |
| Waveform Type | Biphasic truncated exponential |
| Energy Selection | Variable settings up to 270 Joules |
| Charging Time | Less than 8 seconds to maximum 270 Joules |
| Display Screen | 7-inch Diagonal Color TFT Display (800 x 480 pixels, dual-waveform display) |
| ECG Acquisition | 3 / 5 Lead patient cable or direct external paddles |
| ECG Frequency Response | 0.05 Hz to 40 Hz |
| CMRR / Input Impedance | $>$ 100 dB / $>$ 100 M$\Omega$ |
| Heart Rate Range | 30 to 240 bpm ($\pm$ 2 bpm accuracy) |
| Event Storage & Trend | Up to 24 hours of event trends and system data logging |
| Recorder/Printer Type | Built-in High-Resolution Thermal Array Recorder |
| Printer Paper Size | 57 mm $\times$ 20 Meters roll (25 mm/sec printing speed) |
| Power Input | AC 230 V, 50 Hz |
| Battery Rating | 14.8 V / 4400 mAh Rechargeable Lithium-Polymer (or Li-ion variants) |
| Battery Backup Capacity | 40 to 50 max-energy shocks, or over 3 hours of continuous ECG monitoring |
| Battery Charge Time | Approx. 8 hours for complete recharge |
| Enclosure Protection | Dust & Water Resistant (IP44 Rated) |
| Dimensions & Weight | 403 (L) $\times$ 324 (W) $\times$ 152 (H) mm / Net Weight: 5.4 kg |
Biphasic Technology: Delivers rapid therapeutic shocks utilizing low energy curves that minimize post-shock complications compared to traditional monophasic units.
Smart Voice & Visual Prompts: Built-in guidance protocols that comply with AHA (American Heart Association) and ERC guidelines to step the operator through emergency actions safely.
Paddle Contact Indication: Features color-coded contact status feedback on the screen to ensure adequate skin impedance before delivering a shock.
Comprehensive ECG Diagnostics: Supports visual monitoring of 2 simultaneous waveforms alongside heart rate (HR) and selected energy readouts.
Upgradeability Paths: The base monitoring architecture is physically engineered to accept future add-on upgrades for $SpO_2$ (pulse oximetry) and NIBP (non-invasive blood pressure) tracking.
Adult & Pediatric Cross-Compatibility: Incorporates a dual-paddles system where outer adult plates slide off easily to reveal integrated infant/pediatric paddles beneath.
Automated Self-Testing: Performs automated internal self-checks on startup, displaying a "Ready" indicator directly on-screen to guarantee clinical availability.
Integrated Printing Records: Detailed documentation prints instantly upon discharge, detailing the timestamp, patient parameters, pre-shock ECG waveform, selected Joules, and exact energy delivered.
Hospital Crash Carts: Serves as the primary line of emergency defense inside ICUs, Operation Theaters (OT), and Emergency Rooms (ER).
Ambulance & Mobile Medical Units: Compact layout, rugged IP44 footprint, and independent 3-hour battery capacity make it ideal for pre-hospital transit vehicles.
Cardiac Care Units (CCU): Utilized for controlled elective synchronized cardioversion procedures to treat atrial fibrillation or flutter.
Maestros Vital Wave Biphasic Defibrillator Main Unit
Pair of External Defibrillation Paddles (Adult with hidden slide-out Pediatric plates)
3-Lead / 5-Lead Patient ECG Cable Assembly
Disposable ECG Electrodes (Starter Pack)
Multifunction Therapy/AED Pads (if ordered with AED-specific configuration)
High-Capacity Rechargeable Battery Pack (Pre-installed)
Thermal Array Recording Paper Roll
Medical Grade Conductive Gel Bottle
AC Power Cord
User Operation Manual & Quick Reference Guide
