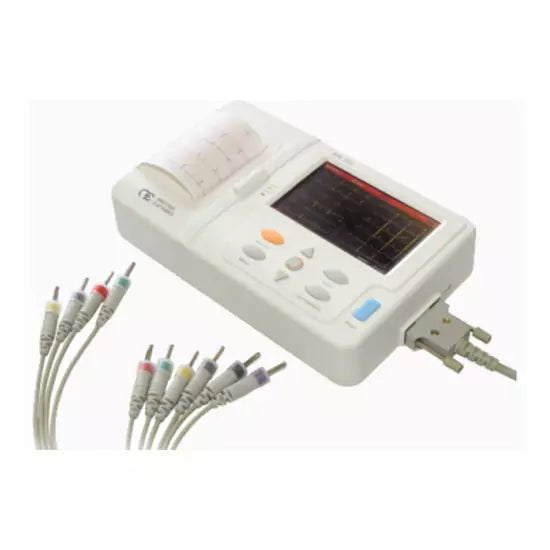

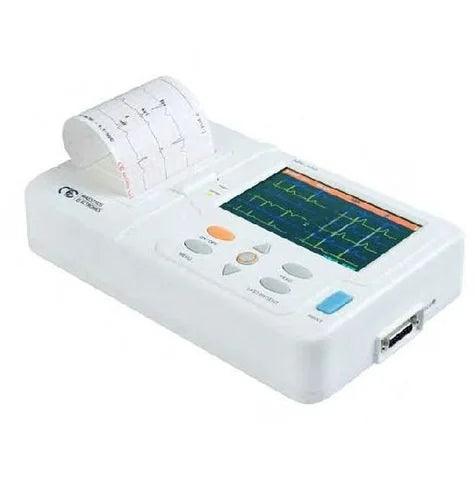

The Maestros MR300 is a highly portable, compact 3-channel digital electrocardiograph designed for streamlined workflows in various clinical settings. It features a sharp 5-inch color TFT display that shows the full 12-lead ECG waveform simultaneously. Built to offer a balance of mobility and comprehensive evaluation, it allows for simultaneous 12-lead acquisition while utilizing an integrated, high-resolution 3-inch thermal printing system to produce clear 3-channel records.
| Parameter | Specification |
| Leads & Acquisition | 12 Standard Leads, Simultaneous 12-lead acquisition |
| Number of Channels | 3 Channels |
| Display Screen | 5-inch Color TFT Display ($800 \times 480$ Pixels) |
| Modes of Operation | Auto / Manual / Rhythm |
| Frequency Response | 0.05 Hz to 125 Hz |
| Common Mode Rejection Ratio (CMRR) | $> 90$ dB |
| Input Impedance | $> 100$ M$\Omega$ |
| Sensitivity Settings | 5, 10, 15, 20 mm/mV |
| Sweep Speed | 12.5, 25, 50 mm/s |
| Internal Data Storage | Up to 5 patients |
| External Data Storage | Unlimited data storage via USB stick / memory interface |
| Printer Type | Built-in High-Frequency Thermal Array Printer |
| Paper Width | 80 mm |
| ECG Print Styles | 3 Channel, 3 Channel + 1 Rhythm Lead ($3, 3+1$) |
| Power Supply | 110 VAC to 260 VAC, 50/60 Hz |
| Power Consumption | 30 Watts |
| Battery Rating & Back-up | 7.4 V, 2200 mAh Li-ion Battery ($>40$ to 50 ECGs on full charge) |
| Battery Recharging Time | 4 Hours Maximum |
| Net Weight | 850 grams (ultra-lightweight) |
| Dimensions | 250 (L) $\times$ 155 (B) $\times$ 65 (H) mm |
Simultaneous Acquisition: Captures all 12 standard leads simultaneously for precise spatial diagnosis despite recording on a 3-channel layout.
Automatic Interpretation: Built-in diagnosis algorithm providing automatic ECG measurement and analysis readouts.
Dual Operation Modes: Seamlessly toggles between fully Automated printing cycles, Manual tracking, and dedicated Rhythm strip recording.
Digital Waveform Display: Generates clean, crisp real-time 12-lead views directly on the integrated 5-inch color display before printing.
Audio-Visual Alarms: Built-in alarm alerts for lead-off status, low battery, and system abnormalities with noise thresholds under 50 dB.
Inbuilt PDF Converter & Connectivity: Allows direct conversion of recorded ECG data into standard PDF format directly on the machine, which can be easily transferred to an external USB flash drive without a PC.
Ultra-Compact Portability: Weighing only 850 grams, it is one of the lightest 3-channel medical-grade devices in its segment.
Massive Connectivity Options: Capable of external printing setups (A4 size printing via standard external deskjet/laser printers) and features optional cloud/server connectivity through Bluetooth/GSM modules.
Small to Medium Clinics & General Practitioners: Perfect for routine resting ECG checks where space is at a premium but 12-lead accuracy is necessary.
Home Healthcare Services & Portable Diagnostics: An ideal field unit for mobile health camps, home visit consultations, and rural health clinics due to its featherweight frame and 50+ ECG battery backup.
Hospital Wards & Triage: Serves as an efficient back-up diagnostic tool for quick cardiac screenings at patient bedsides.
Maestros MR300 3-Channel ECG Main Unit
10-Core Patient ECG Cable (1 No.)
Suction Bulb Chest Electrodes (1 Set of 6)
Limb Clamp Electrodes (1 Set of 4)
Thermal Recording Paper Roll (80mm width)
AC Power Cable & Adapter
Grounding / Earthing Cable
User Manual / Guide Documentation
