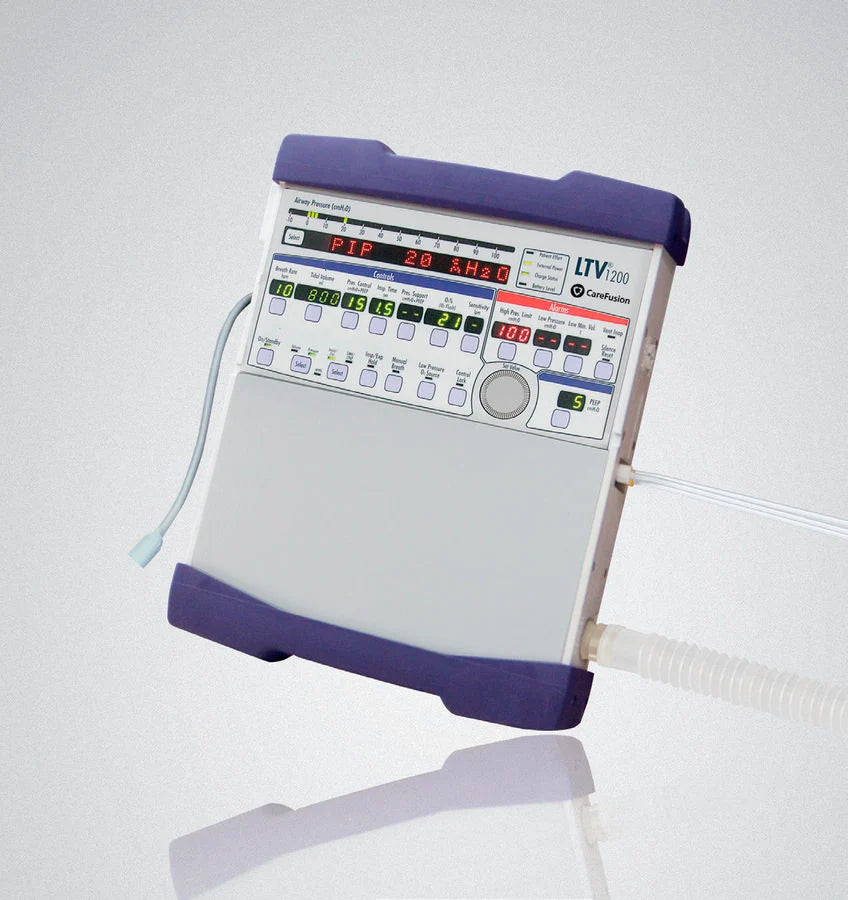

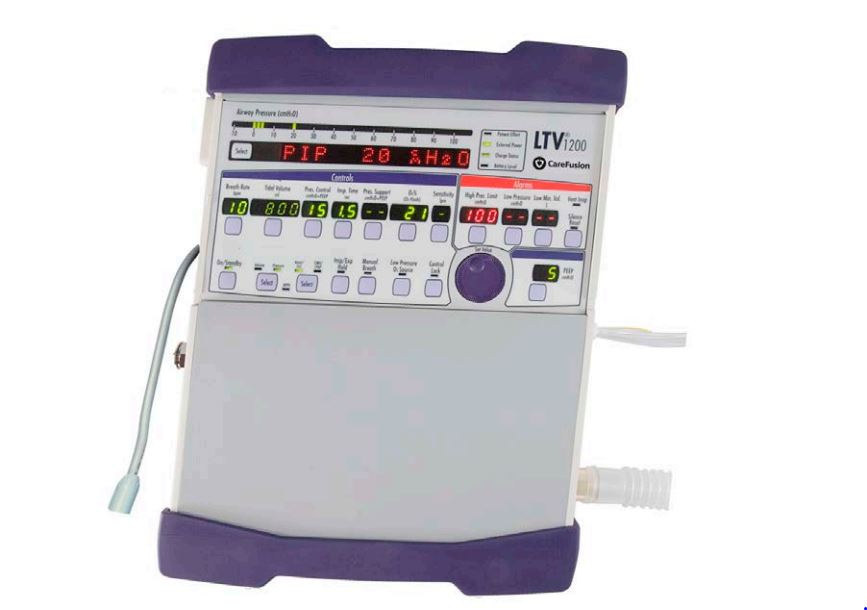

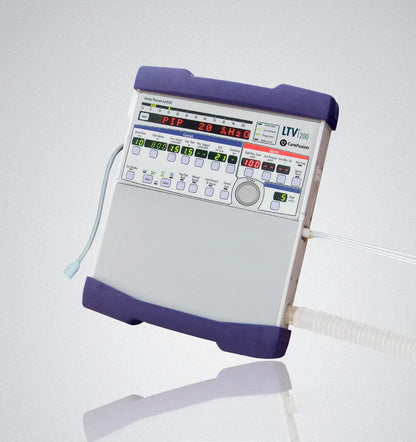

Kaarya LTV 1200 Ventilator - Refurbished

Kaarya

Kaarya LTV 1200 Ventilator - Refurbished

Rs. 0.00
Rs. 0.00
Sold out
Tax included. Shipping calculated at checkout.
16 people are viewing this right now

Availability: In stock

Our Advantages

  1. 1. GST Invoice
  2. 2. Brand New Products
  3. 3. Easy Replacements
  4. 4. Authorized Distributor
  5. 5. Best Price Guaranteed
  6. 6. Multiple Payment Options

Shipping & Returns

Free shipping and returns available on all orders!

We ship all US domestic orders within 5-10 business days

View full product details

CareFusion LTV™ 1200 Ventilator Specifications

1. Physical & Environmental

  • Dimensions: 3.25" H × 10.5" W × 13.5" D (8.4 cm × 27 cm × 38 cm)

  • Weight: 14.5 lbs (6.5 kg)

  • Operating Temperature: 5°C to 40°C (41°F to 104°F)

2. Ventilation Modes & Breath Types

  • Modes: Control, Assist/Control (A/C), SIMV, CPAP, Pressure Support, Apnea Backup Ventilation

  • Breath Types: Volume Control, Pressure Control, Pressure Support, Spontaneous

  • Patient Range: Pediatric to Adult (Patient weight $> 10\text{ kg}$)

3. Control Ranges

Parameter Setting Range
Breath Rate 0 to 80 bpm
Tidal Volume ($V_T$) 50 to 2,000 mL
Inspiratory Time ($T_I$) 0.3 to 9.9 seconds
Pressure Control 1 to 99 $\text{cmH}_2\text{O}$
Pressure Support 1 to 60 $\text{cmH}_2\text{O}$
PEEP / CPAP 0 to 20 $\text{cmH}_2\text{O}$
Flow Trigger Sensitivity 1 to 9 L/min (or Off)
$\text{FiO}_2$ Concentration 21% to 100%

4. Monitored Parameters

  • Airway Pressures: Peak Inspiratory Pressure (PIP), Mean Airway Pressure (MAP), PEEP

  • Volumes: Calculated Exhaled Tidal Volume ($V_E$), Exhaled Minute Volume

  • Rates & Ratios: Total Breath Rate, I:E Ratio

  • Diagnostics: Auto-PEEP, Static Compliance ($C_{stat}$)

5. Power Specifications

  • AC Power Input: 100 to 240 VAC (50/60 Hz)

  • External DC Input: 11 to 15 VDC

  • Internal Battery: Rechargeable Lithium-ion (approx. 45–60 minutes runtime)
