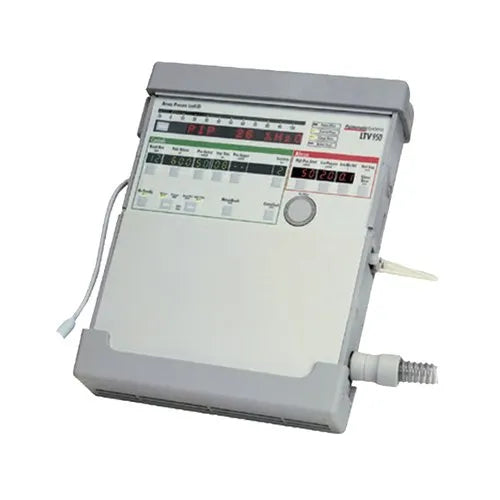

The LTV 950 is a highly versatile, lightweight transport and critical care ventilator designed to deliver continuous or intermittent positive pressure ventilation. Despite its exceptionally compact footprint, it integrates sophisticated turbine technology that eliminates the need for an external compressed gas source. This refurbished unit undergoes extensive calibration, performance testing, and cosmetic restoration, providing the exact critical care capabilities—including pressure support, pressure control, and flow-triggering—needed for adult and pediatric patients weighing at least 11 lbs (5 kg).
| Parameter / Feature | Specification |
| Ventilation Modes | Control, Assist/Control, SIMV, CPAP, NPPV (Non-Invasive) |
| Breath Types | Volume Control, Pressure Control, Pressure Support, Spontaneous |
| Tidal Volume | 50 to 2,000 mL |
| Respiratory/Breath Rate | 0 to 80 breaths per minute (bpm) |
| Inspiratory Time | 0.3 to 9.9 seconds (at 100 LPM) |
| Peak Flow Capacity | 160 LPM (PC/PS/Spontaneous) |
| Pressure Control Range | 1 to 99 $\text{cmH}_2\text{O}$ |
| Pressure Support Range | Off, 1 to 60 $\text{cmH}_2\text{O}$ |
| PEEP / CPAP Range | 0 to 20 $\text{cmH}_2\text{O}$ |
| Trigger Sensitivity | Off, 1 to 9 LPM (Flow-triggering) |
| Monitored Parameters | PIP, MAP, PEEP, Total Breath Rate, Exhaled Tidal Volume, Minute Volume, I:E Ratio |
| Power Input | 90 to 250 VAC (47–63 Hz), 11 to 15 VDC |
| Dimensions (Without Boot) | 3" H $\times$ 10" W $\times$ 12" D ($8 \times 23 \times 30\text{ cm}$) |
| Weight | 13.4 lbs (6.1 kg) |
Internal Turbine System: Operates independently without requiring a wall air hookup or external compressed gas tanks.
Apnea Back-Up Ventilation: Automatically activates default volume or pressure breaths if a patient fails to initiate spontaneous breathing within a pre-set timeframe (10–60 seconds).

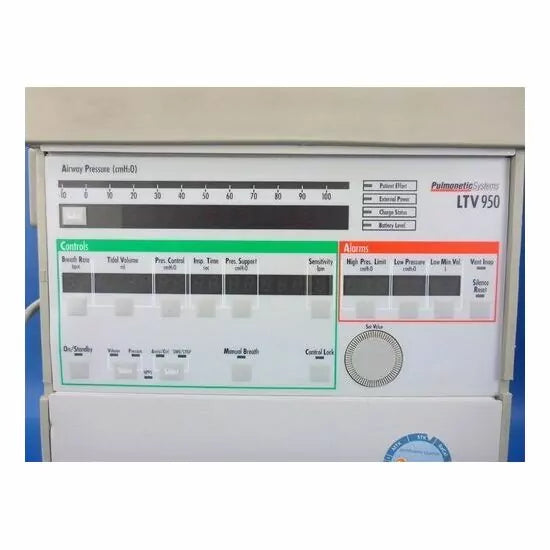

Comprehensive Patient Monitoring: Features an intuitive digital interface display that provides real-time mathematical breakdowns of patient metrics like the I:E ratio and total minute volume.
Advanced Alarm Package: Equipped with multiple customized audio-visual safeguards, including High/Low Peak Pressure, Low Minute Volume, Device Inoperative, Disconnect, and Low Battery alerts.
Control Lockout System: Includes multiple lock settings (Easy or Hard unlock methods) to safeguard against accidental changes to the physician's presets.
Tailored Patient Comfort: Integrates extended profile software parameters such as Variable Rise Time, Variable Flow Termination, and Leak Compensation to dramatically reduce patient-ventilator dyssynchrony.
Dual Patient Application: Highly adaptable, processing minimal tidal volumes safely enough to switch between larger adult settings and pediatric patients down to 11 lbs.
Versatile Power Options: Features an smart internal switching circuit that transitions smoothly between AC main lines, vehicle automobile lighter adapters, or dedicated multi-hour external battery systems.
Ambulance & Emergency Transport: Ideal for intra-hospital or emergency road transport due to its sub-14 lb weight and standalone air production.
ICU Step-Down & Long-Term Care Facility Support: Functions as a cost-effective alternative for clinical environments requiring full invasive/non-invasive modalities without heavy wall infrastructure.
Home Mechanical Ventilation: Frequently prescribed for stable, chronic home care respiratory patients due to its highly portable footprint and easy-to-learn user interface.
(Note: Components may vary slightly depending on the specific tier of the refurbishment package selected)
Refurbished LTV 950 Mechanical Ventilator Unit
Protective Rubber Guard Boot (Pre-installed)
AC Power Cord and Universal Power Adapter Block
12V DC Automobile Lighter Power Cable Adapter
Patient Exhalation Valve and Sense Line Assemblies
Disposable or Autoclavable Adult/Pediatric Ventilator Circuit
Micro-DPC Air Inlet/Bacteria Filter
Certified Biomedical Calibration Certificate & 12-Month Refurbishment Warranty Statement
Operational User Manual (Digital or Printed)
