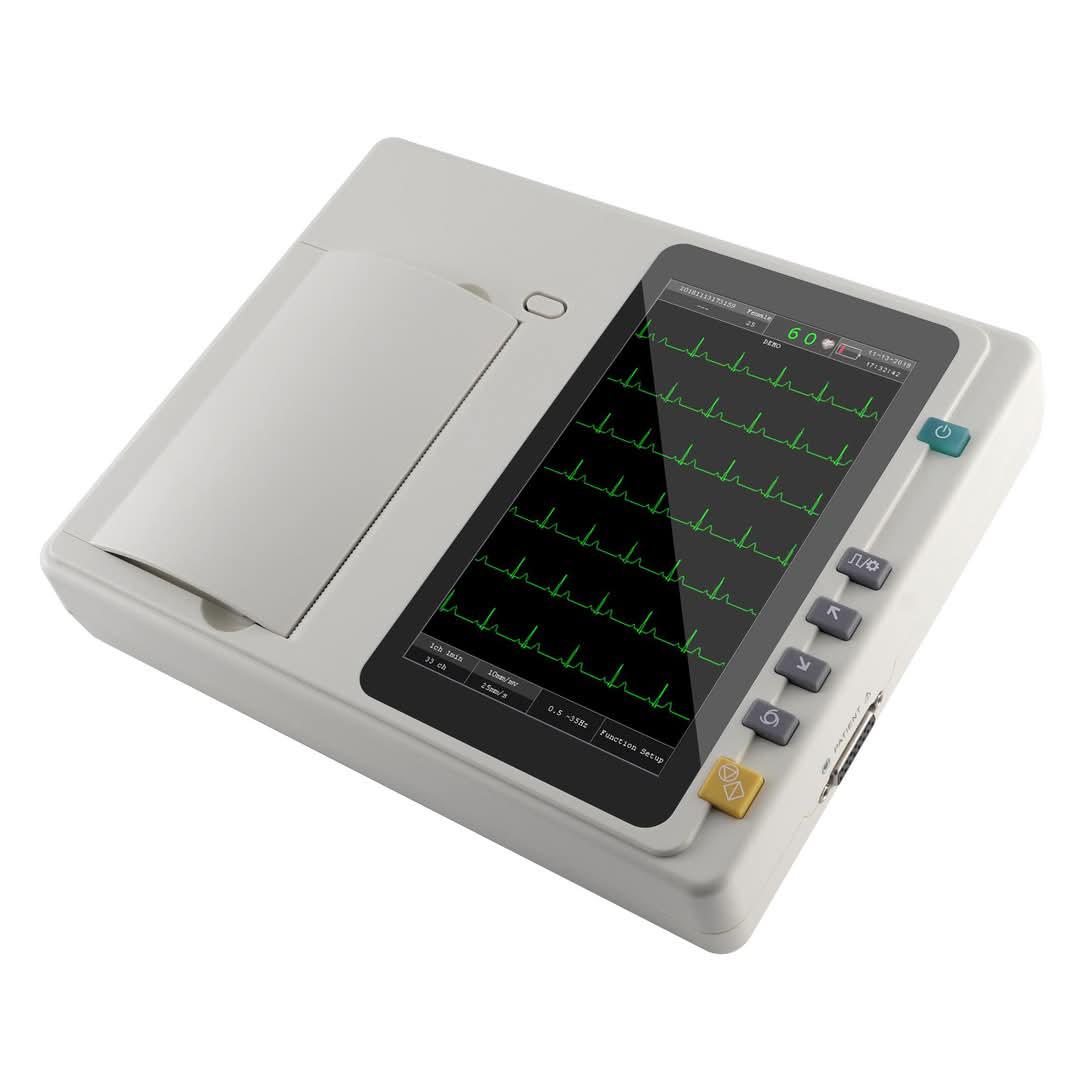

Kaarya KAA-601 ECG Machine

Kaarya

Kaarya KAA-601 ECG Machine

Rs. 33,600.00
Rs. 35,000.00 Rs. 33,600.00
Sold out
Tax included. Shipping calculated at checkout.
27 people are viewing this right now

Availability: Low stock: 5 left

Our Advantages

  1. 1. GST Invoice
  2. 2. Brand New Products
  3. 3. Easy Replacements
  4. 4. Authorized Distributor
  5. 5. Best Price Guaranteed
  6. 6. Multiple Payment Options
SKU: 18146

Shipping & Returns

Free shipping and returns available on all orders!

We ship all US domestic orders within 5-10 business days

View full product details

Product Description

The Kaarya KAA-601 is a 12-lead ECG system that facilitates simultaneous acquisition of cardiac signals. It features a high-resolution 7-inch color touchscreen LCD, which allows medical professionals to view and analyze waveforms in real-time. The device is built with an advanced interpretation algorithm to assist in accurate diagnostics, and it includes high-speed thermal printing capabilities for immediate report generation. Its design supports both AC and DC (rechargeable battery) power, making it suitable for stationary use in clinics or mobile use within a hospital.

Key Features

  • 12-Lead Simultaneous Acquisition: Captures all leads at once for comprehensive heart monitoring.

  • Intuitive Touch Interface: Equipped with a 7-inch color touchscreen for seamless operation and waveform viewing.

  • Automatic Interpretation: Advanced built-in algorithms provide preliminary analysis and diagnostic insights.

  • Flexible Power Options: Operates on standard AC power or the built-in rechargeable Li-Poly battery.

  • Data Management: Supports internal storage and external USB storage for thousands of reports, simplifying patient data tracking.

  • High-Speed Printing: Integrated thermal printer with adjustable speeds up to 50mm/s.

Technical Specifications

Feature Specification
Display 7-inch Color Touchscreen LCD
ECG Acquisition 12-Lead Standard or Cabrera System
Recording Speed Up to 50mm/s
Sensitivity 1.25 – 40mm/mV ±2%
Frequency Response 0.05Hz – 150Hz (-3dB)
CMRR >100dB (with AC Filter)
Filters EMG, Drift, and AC Filters
Power Supply AC 220V ±10%, 50Hz / Built-in Li-Poly Battery
Battery Capacity 11.1V / 1800mAh
Interfaces USB, RS232, PC Connectivity
Dimensions 285 × 200 × 55mm
Weight 2.25 kg

Product Highlights

  • Precision Diagnostics: High CMRR and multiple digital filters ensure clean, noise-free waveforms.

  • Portability: Lightweight construction (2.25 kg) and battery operation allow for easy transport between patient rooms.

  • Ease of Use: Alphanumeric input and one-touch operation reduce setup time during critical assessments.

  • Connectivity: Seamlessly connects to external printers or PCs via USB/RS232 for digital archiving.

Use Cases

  • Hospitals & Nursing Homes: Ideal for routine patient monitoring in wards or Intensive Care Units (ICU).

  • Diagnostic Clinics: Suitable for conducting resting ECG tests for health check-ups and cardiac screenings.

  • Doctor’s Offices: Compact design makes it an excellent choice for private practice clinics with space constraints.

  • Mobile Medical Units: Battery-operated design supports cardiac diagnostics for patients who cannot be moved to a central lab.

In the Box

  • Kaarya KAA-601 ECG Machine Main Unit

  • Patient Cable (12-Lead set)

  • Limb Electrodes

  • Chest Electrodes

  • Power Cord

  • Thermal Recording Paper Roll

  • User Manual & Warranty Card
