Kaarya KAA-301G ECG Machine

Kaarya

Kaarya KAA-301G ECG Machine

Rs. 19,448.00
Rs. 20,000.00 Rs. 19,448.00
Sold out
Tax included. Shipping calculated at checkout.
15 people are viewing this right now

Availability: Low stock: 5 left

Our Advantages

  1. 1. GST Invoice
  2. 2. Brand New Products
  3. 3. Easy Replacements
  4. 4. Authorized Distributor
  5. 5. Best Price Guaranteed
  6. 6. Multiple Payment Options
SKU: 18142

Shipping & Returns

Free shipping and returns available on all orders!

We ship all US domestic orders within 5-10 business days

View full product details

Product Description

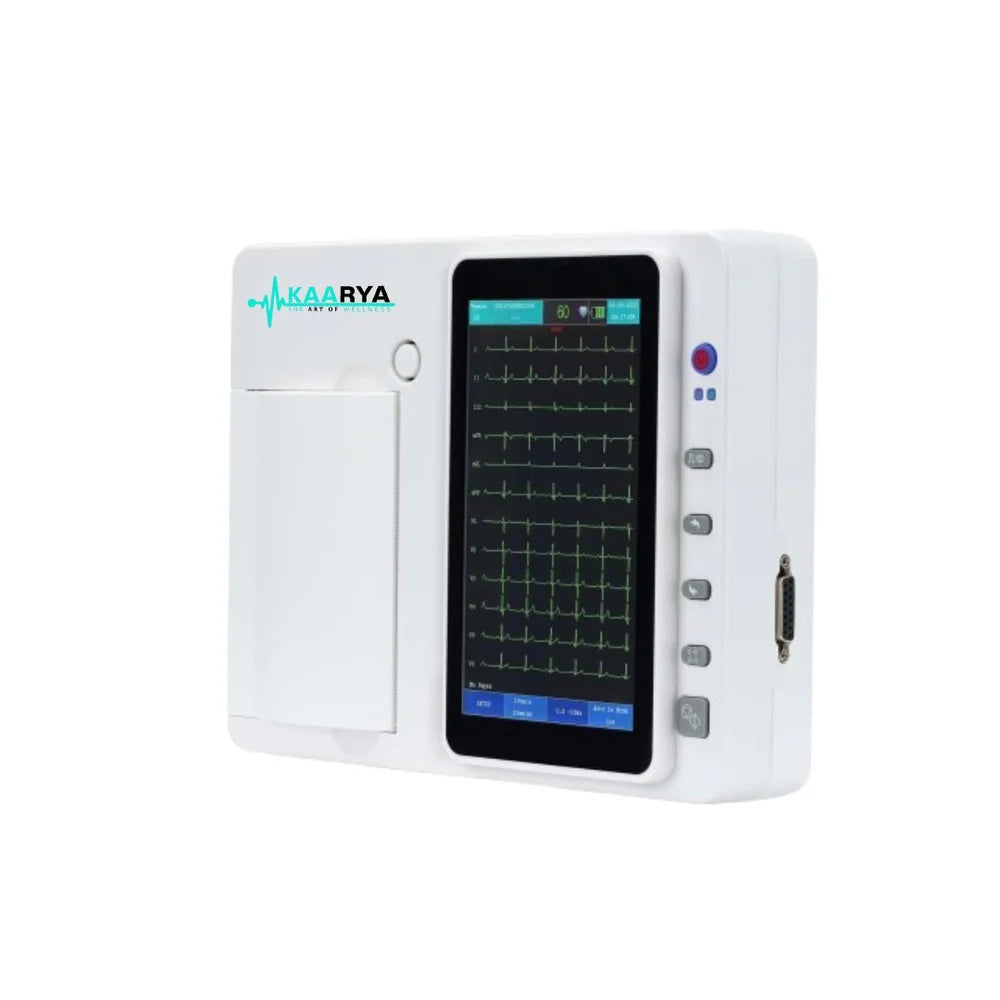

The Kaarya KAA-301G ECG Machine is a high-performance, 3-channel diagnostic system designed for precise cardiac care. Equipped with a 7-inch color touchscreen interface, the unit allows for efficient viewing and capturing of multi-lead waveforms. By incorporating advanced digital filtering technology, it isolates cardiac data while neutralizing interference from outside electronic currents or sudden patient muscle shifts. Its compact footprint, combined with dual AC power and lithium battery operation, makes it highly versatile across stationary and emergency mobile medicine environments.

Technical Specifications

Specification Feature
Display 7-inch High-Resolution Color Touchscreen
ECG Acquisition 12-Lead Simultaneous Display
Measurement & Interpretation Automatic ECG Analysis / Waveform Interpretation
Sampling Rate 1000 sps / Channel
Filters EMG (25/30/40 Hz), Low-Pass (75/100/150 Hz), DFT (0.05–0.67 Hz), AC (50/60 Hz)
Recording System High-precision Thermal Matrix Printing
Recording Paper 80mm × 20m Roll
Paper Speed 6.25, 12.5, 25, 50 mm/s
Recording Modes

Automatic: 3CH+4, 1R, 3CH×4


Manual: 3CH, 2CH, 1CH
Storage Support USB Flash Disk & Micro SD Card Expansion
Power Supply AC 100-240V, 50/60Hz / Built-in Li-ion Battery
Battery Capacity 14.8V / 2200mAh Rechargeable
Interfaces USB Ports, SD Card Slot, Network Interface
Safety Standard IEC Class I, Type CF
Weight Approx. 2.8 kg to 5 kg (depending on configuration/kit)

Key Features

  • 12-Lead Acquisition: Captures standard 12-lead configurations simultaneously for immediate, thorough readings.

  • Automatic Interpretation: Built-in processing algorithms provide automated calculation of variables and quick interpretive support.

  • Comprehensive Signal Protection: Equipped with multiple customized baseline drift, EMG, and line-frequency filters to maintain clear trace lines.

  • Custom Recording Traces: Users can choose between multiple automated tracking layouts or lock onto individual channels manually.

  • Expandable Storage: Direct support for external flash drives and micro-SD memory mapping to log a massive directory of historical cases.

Product Highlights

  • Highly intuitive, responsive 7-inch touchscreen eliminates clumsy buttons and speeds up patient workflow.

  • Ultra-portable, sleek design allowing care teams to carry it seamlessly from bed to bed.

  • Built-in multi-speed thermal matrix printer translates real-time readouts to hard copies instantly on standard 80mm rolls.

  • High-capacity rechargeable lithium-ion battery provides dependable power support when decoupled from an AC wall outlet.

Use Cases

  • Hospitals & Cardiology Units: Acts as an efficient bedside resting ECG companion for continuous triage or scheduled checkups.

  • Diagnostic Centers & Labs: Serves as a primary tool for high-turnover patient screening routines requiring automated data reporting.

  • Clinics & General Practitioners: Offers small offices a compact diagnostic workspace footprint without forfeifying 12-lead accuracy.

  • Mobile Healthcare & Ambulatory Settings: Ideal for emergency transport vans, remote medical camps, or home-care visits due to its lightweight chassis and battery configuration.

In the Box

  • 1 × Kaarya KAA-301G ECG Main Unit

  • 1 × Patient Diagnostic Trunk Cable

  • 4 × Limb Clamp Electrodes

  • 6 × Chest Suction Bulb Electrodes

  • 1 × Rechargeable Lithium-ion Battery (Pre-installed)

  • 1 × AC Power Cable & Supply Cord

  • 1 × 80mm Thermal Recording Paper Roll

  • 1 × User Operation Manual
