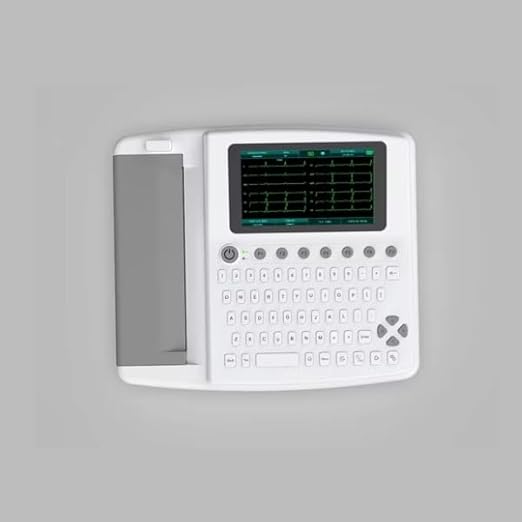

The Kaarya KAA-1201 ECG Machine is an advanced 12-channel/12-lead electrocardiograph system designed to ensure high-precision ECG signal acquisition, auto-analysis, and accurate clinical diagnosis. Equipped with digital signal processing, an intuitive user interface, multi-language support, and built-in heavy-capacity data management storage, it delivers highly dependable performance across varying clinical and mobile environments.
| Specification | Details |
| ECG Acquisition | 12-Lead Simultaneous, Digital Processing |
| Display | Multi-Lead ECG Display Screen (High-Resolution Color Display) |
| Printing Modes | Auto, Rhythm, Manual (Various Formats) |
| Paper Size | 210mm × 20m Thermal Roll Paper |
| Paper Speed | 5 – 50 mm/s (Selectable) |
| Sensitivity Selection | 2.5, 5, 10, 20, 40 mm/mV ±5% |
| Auto-Analysis Parameters | HR, P-R interval, QRS duration, QT/QTc, Axis, R(V5), S(V1) |
| Filters | EMG (Muscle interference), Power Frequency (AC), Baseline Drift |
| Internal Storage | Built-in memory for up to 1,000 cases |
| Power Supply | AC 100V–240V (50/60Hz), DC 14.8V/3500mAh Lithium Rechargeable Battery |
| Battery Life | Up to 10 hours standby time, 3 hours continuous printing |
| Safety Standard | Class I, CF Type applied part with Defibrillation & Pacing protection |
| Dimensions & Weight | 340 mm × 320 mm × 85 mm; Net weight approx. 3.2 kg to 4 kg |
Simultaneous 12-Lead Acquisition: Captures and displays all 12 channels synchronously for complete diagnostic profiling.
Smart Auto-Analysis & Interpretation: Features automatic measurements of critical parameters (HR, PR, QRS, QT) to speed up clinical workflows.
Comprehensive Filtering: Built-in digital filters minimize external artifacts from muscle movement (EMG), power grids, and breathing baseline shifts.
Flexible Layout Options: Supports multiple printing and viewing formats (such as 12×1, 6×2+1, 6×2, and customized rhythm rows).
PC Connectivity: Easily exports data to an external computer via USB interface to review, store, or archive reports digitally.
Massive Onboard Memory: Holds up to 1,000 patient history records internally for seamless medical data tracking and statistics.
Extended Battery Backup: Equipped with a 3500mAh high-capacity rechargeable lithium battery, eliminating dependency on immediate electrical outlets.
Defibrillator Proof: Includes integrated protective circuitry against pacing and high-energy defibrillator discharges, keeping the machine and patient secure.
Ergonomic Design: Features efficient shortcut keys, clear navigation menus, and a clean alphanumeric input setup.
Hospitals & Specialty ICUs: For quick, real-time diagnostic checks in critical care and cardiology departments.
Diagnostic Clinics: Handles high-volume everyday diagnostic screening with fast printing and automated reports.
Mobile Health Camps & Ambulances: Its highly portable, lightweight build combined with 10-hour standby battery tracking makes it perfect for remote out-patient testing.
Kaarya KAA-1201 Main ECG Unit
12-Lead Patient Cable
Set of Chest Electrodes (Suction Bulbs)
Set of Limb Clamp Electrodes
Thermal Printing Paper Roll (210mm)
AC Power Cord & Adapter
Rechargeable Lithium Battery (Built-in)
Grounding Wire
User Reference Manual
