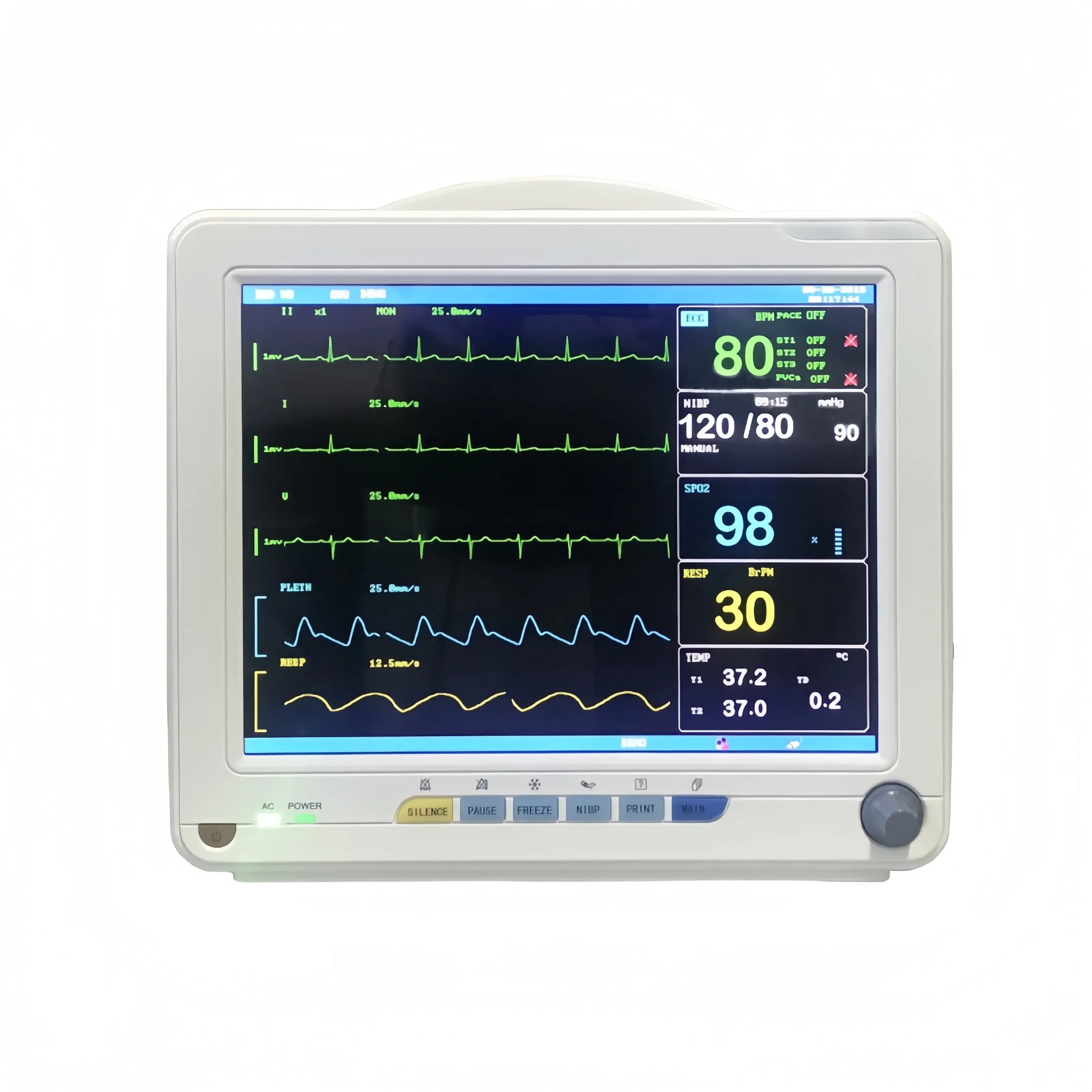

Kaarya 9009-W Bedside Multipara Monitor

Kaarya

Kaarya 9009-W Bedside Multipara Monitor

Rs. 21,000.00
Rs. 35,000.00 Rs. 21,000.00
Sold out
Tax included. Shipping calculated at checkout.
29 people are viewing this right now

Availability: Low stock: 5 left

Our Advantages

  1. 1. GST Invoice
  2. 2. Brand New Products
  3. 3. Easy Replacements
  4. 4. Authorized Distributor
  5. 5. Best Price Guaranteed
  6. 6. Multiple Payment Options
SKU: 7676

Shipping & Returns

Free shipping and returns available on all orders!

We ship all US domestic orders within 5-10 business days

View full product details

Product Description

The Kaarya 9009-W is a high-resolution, lightweight, and entry-level multiparameter bedside patient monitor designed to track essential vital signs in real-time. Built with a compact and thinner physical form factor, it offers high clinical portability alongside flexible operating systems. The machine features digital pacemaking detection and localized S-T segment wave freeze capabilities to help clinicians promptly recognize underlying cardiovascular deviations or acute cardiac events.

Technical Specifications

Parameter Specification
Display Screen 12.1-inch High-Resolution Color TFT LCD Screen
Standard Parameters (5-Para) ECG, NIBP, SpO2, Respiration (RESP), Temperature (TEMP)
ECG Lead Modes 3-Lead or 5-Lead configuration options
ECG Features Real-Time S-T Segment Analysis & Pacemaker Detection
Pulse Rate (PR) Range 20 to 254 bpm
SpO2 Sensing Technology Nellcor Compatible Digital SpO2 Integration
NIBP Measuring Range 10 to 270 mmHg (Double Overpressure Hardware/Software Protection)
Respiration Tracking Impedance method with real-time breathing waveform display
Alarm System 3-Level configurable audio/visual warning alarms
Signal Protection Integrated resistance to defibrillators and high-frequency surgical knives
Data Memory Storage 7-Day internal trend charts, 400 NIBP data groups, 6000s ECG waveform recall
External Memory Option Built-in SD Card Storage slot
Power Supply Requirements AC 100V–240V, 50/60 Hz
Battery Configuration Internal High-Capacity Rechargeable Lithium-Polymer/Li-ion Battery
Network Capabilities Central Monitoring System ready (Wired or Wireless connection layouts)

Key Features

  • Multi-Patient Adaptive Configuration: Software ranges optimized for adult, pediatric, and neonatal patient categories.

  • S-T Segment Wave Freeze: Instantly freezes target waveforms on-screen for precise, step-by-step diagnostic verification.

  • Anti-Interference Safety: Robust electrical insulation prevents feedback artifacts from active operating room equipment (e.g., electrosurgical units/HK knives) or therapeutic discharges.

  • Central Networking Readiness: Fully compatible with ICU/CCU wire or wireless local network platforms to feed metrics directly to central nurses' stations.

Product Highlights

  • Advanced Memory Logging: Holds 60 distinct alarm-event logs alongside expansive trend memory, preventing data loss during shifts.

  • Ultra-Slim Profile: Reduced physical thickness and lighter net weight maximize bedside space allocation.

  • Visual Alarm Prompts: Color-coded 3-tier warning thresholds ensure shifts can spot critical changes immediately across crowded wards.

Use Cases

  • Intensive Care Units (ICU / CCU): Continuous monitoring of unstable cardiac or post-op patients needing immediate S-T segment checking.

  • General Medical Wards: Serves as a standard entry bedside vitals log for checking daily progress.

  • Ambulance & Intra-Hospital Transport: Compact design and reliance on internal lithium battery backup support mobile clinical surveillance during patient transfers.

In the Box

  • Kaarya 9009-W Bedside Multipara Monitor Main Unit

  • 5-Lead Patient ECG Cable Assembly

  • Adult NIBP Cuff with Extension Air Hose

  • Finger-Clip Digital SpO2 Sensor Probe

  • Temperature Sensor Probe (Skin/Surface type)

  • High-Capacity Rechargeable Lithium Battery (Internal)

  • Heavy-Duty AC Power Cable & Adapter

  • User Reference Manual & Warranty Documentation
