Compatible with 5LPM Oxygen Concentrators

Technical Specifications

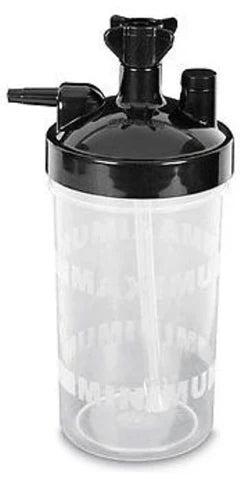

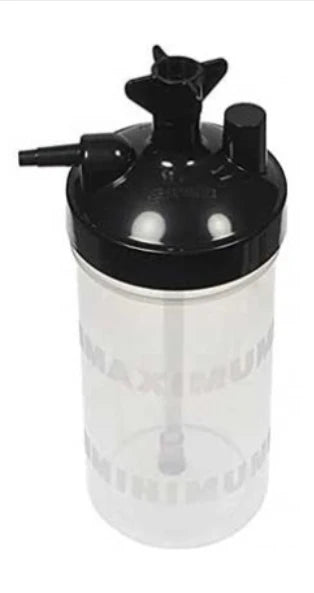

• Product Type: Oxygen Humidifier Bottle (Bubble Humidifier)

• Bottle Material: Clear, durable medical-grade polycarbonate / polypropylene plastic

• Cap & Connector Material: Molded plastic with standard thread connection

• Top Connector: Standard DISS female wing nut fitting (connects directly to oxygen concentrators or flowmeters)

• Outlet Port: Standard tapered barb port (connects to standard oxygen tubing/cannulas)

• Safety Feature: Built-in safety relief valve (typically preset to 3–6 PSI) to vent excess pressure and emit an audible alarm if the line is kinked or blocked

• Water Capacity: ~350 ml to 500 ml (indicated with MAXIMUM and MINIMUM fill lines)

• Diffuser Tube: Internal dip tube reaching near the bottom to create fine bubbles for efficient humidification

Key Features & Use

• Humidification: Adds moisture to dry medical oxygen to prevent dryness/irritation in the nasal passages and throat during oxygen therapy.

• Easy Maintenance: Marked water levels ensure safe operation—water should always remain strictly between the MINIMUM and MAXIMUM line.

• Water Recommendation: Distilled water is strongly recommended to prevent mineral build-up inside the bottle and tubing.
