Heidelco 12-Channel ECG Machine - HE1200

Kaarya

Heidelco 12-Channel ECG Machine - HE1200

Rs. 0.00
Rs. 0.00
Sold out
Tax included. Shipping calculated at checkout.
15 people are viewing this right now

Availability: Low stock: 5 left

Our Advantages

  1. 1. GST Invoice
  2. 2. Brand New Products
  3. 3. Easy Replacements
  4. 4. Authorized Distributor
  5. 5. Best Price Guaranteed
  6. 6. Multiple Payment Options
SKU: 18711

Shipping & Returns

Free shipping and returns available on all orders!

We ship all US domestic orders within 5-10 business days

View full product details

Product Description

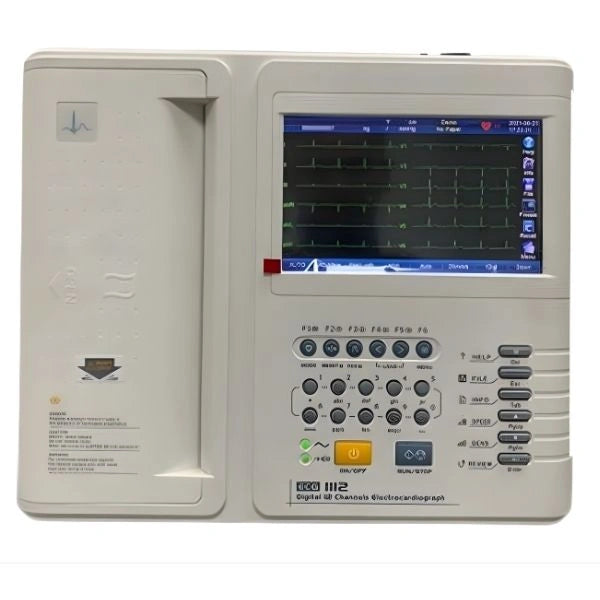

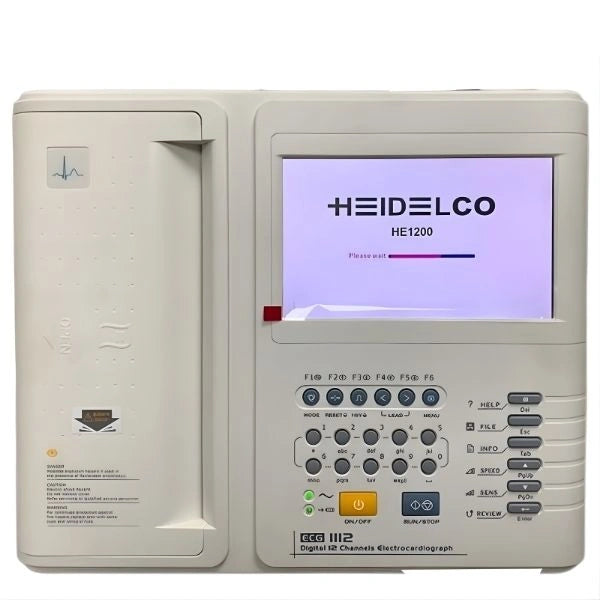

The Heidelco HE1200 is a digital 12-channel electrocardiograph featuring a high-resolution 7-inch TFT color touch screen. It is engineered with modern ergonomics, compact sizing, and sophisticated software packages designed to provide highly accurate, concurrent data for the analysis of arrhythmias and cardiovascular diseases. The machine assists clinicians in identifying pathological disorders caused by drug interactions, electrolyte imbalances, or pH level variances, leveraging advanced processing algorithms to deliver reliable medical diagnostics.

Technical Specifications

Parameter Specification
Safety Standard / Level MDD93/42/EEC, IEC60601-1 / Class I, Type CF
Display Screen 7-inch (800×480) TFT Color LCD Touch Screen
Leads & Acquisition 12 standard leads, Simultaneous 12-lead acquisition
Sampling Rate 8000 Hz (optimized for pacemaker detection)
A/D Converter 24 bits
Frequency Response 0.05Hz to 165Hz
Time Constant $\ge$ 3.25 seconds
CMRR (Common Mode Rejection Ratio) $\ge$ 120 dB
Input Impedance $\ge$ 50 M$\Omega$ ($10^{12}$ floating protection circuit)
Patient Leakage Current $<$ 10 $\mu$A (AC)
Digital Filters HUM (AC), EMG, ADS (Baseline Drift), Lowpass
Sensitivity Settings Auto, 2.5, 5, 10, 20, 40 mm/mV ($\pm$5%)
Recording/Printing System High-speed Thermal Printing System
Printing Speed Options 5, 6.25, 10, 12.5, 25, 50 mm/s ($\pm$3%)
Compatible Paper Formats 215mm $\times$ 20m Roll or Z-Fold paper
Internal Memory Storage up to 5,000 ECG files (expandable via USB)
Power Supply AC: 100V–240V, 50/60Hz; DC: 14.4V/4400mAh Li-ion battery
Battery Life Backup Over 3 hours of continuous working time
Dimensions & Weight Unit: 334 $\times$ 320 $\times$ 85 mm

Key Features

  • Advanced Acquisition & Stability: Captures 12 leads simultaneously. Waveforms dynamically stabilize within 3 seconds of connection.

  • AHA & CSE Database Integration: Built-in algorithm tested against global standards for reliable, automatic measurement and interpretation.

  • Flexible Operation: Two intuitive input interfaces—physical fast-keys/keyboard and a responsive digital touchscreen.

  • Built-In Help Ecosystem: Includes a multi-page interactive help system for standard operation troubleshooting directly on-screen.

  • Cine-Loop Playback: Allows users to freeze, review, and replay recorded waveforms to catch fleeting abnormalities.

  • Pre-10-Second Print & Trigger Print: Capture unexpected clinical events retroactively or via threshold triggers.

Product Highlights

  • Comprehensive Print Layouts: Supports up to eight customized print formats under AUTO mode (e.g., 12x1, 12x1+P, 6x2, 6x2+1rhy, 3x4+3rhy). Includes a specialized +P mode optimized for printing quick, cost-effective A4-sized reports via external laser printers.

  • Extensive Peripheral Support: Integrates with USB flash disks, external barcode scanners, magnetic card readers, and standard PC data management suites.

  • Ultra-Precise Signal Protection: Built-in floating input circuits guarded by hardware-level pacemaker detection and defibrillator protection.

Use Cases

  • Hospitals & Cardiology Departments: Routine resting ECG diagnostic checks and long-term multi-lead monitoring.

  • Emergency Rooms & Critical Care: Rapid waveform acquisition where instant, defibrillator-safe operations are needed.

  • Ambulatory & Off-Site Clinics: Highly portable with a long-duration lithium battery, making it reliable for remote patient visits or health camps.

In the Box

  • Heidelco HE1200 12-Channel ECG Main Unit

  • Standard 10-Core Patient ECG Cable

  • Chest Electrodes (Suction Bulbs Set)

  • Limb Electrodes (Clamp Set)

  • Thermal Recording Paper Roll (215mm)

  • AC Power Cord & Adapter

  • Rechargeable Li-ion Battery (Pre-installed)

  • Grounding Cable

  • User Manual & Official Warranty Card
