Product Description

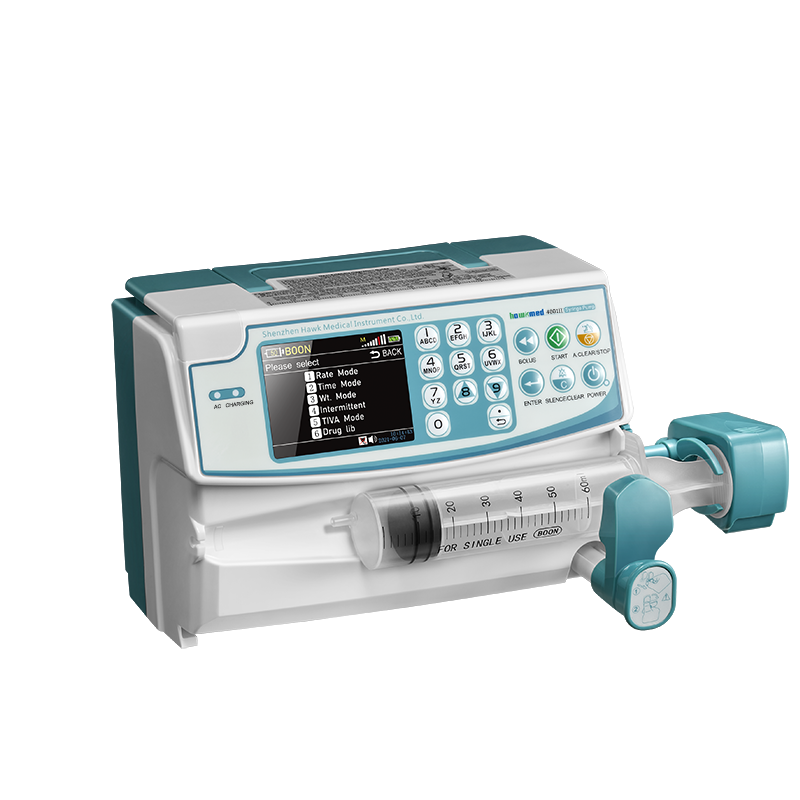

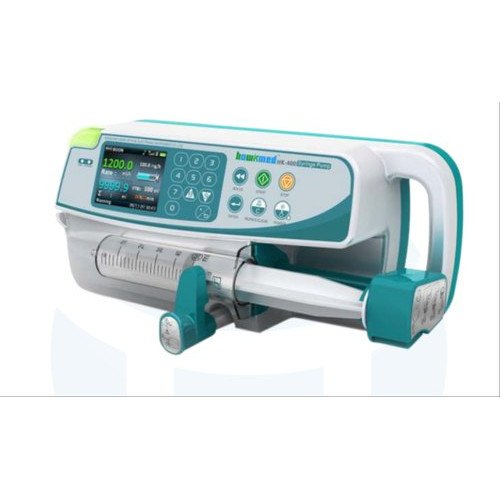

The Hawkmed HK-400 series is a highly accurate, compact, and lightweight syringe pump engineered for modern medical environments. Built to deliver precise medication dosages to patients across all age groups (including neonatal and pediatric care), it features a large, colorful LCD display and user-friendly interface. Its modular design allows multiple pumps to stack and lock securely together, minimizing workspace clutter while ensuring extreme accuracy (within ±2%) and continuous, safe infusion through dual-CPU monitoring.

Technical Specifications

Parameter Specifications
Applicable Syringes 5ml, 10ml, 20ml, 30ml, 50ml / 60ml (Universal calibration for major brands)
Infusion Modes Rate Mode, Time Mode, Dose/Body Weight Mode (Optional: Intermittent, Drug Library, TIVA, TPN, Micro, Loading Dose, Sequential)
Flow Rate Accuracy ±2% (mechanical accuracy ±1% after calibration)
Infusion Rate Range

• 5ml: 0.1 – 150 ml/h


• 10ml: 0.1 – 300 ml/h


• 20ml: 0.1 – 600 ml/h


• 30ml: 0.1 – 900 ml/h


• 50/60ml: 0.1 – 1500 ml/h (up to 1800 ml/h on newer models like HK-400III)
Volume to be Infused (VTBI) 0.1 – 1000 ml (Increments of 0.01 ml/h)
Total Volume Infused (∑) 0.1 – 9999.9 ml
KVO (Keep Vein Open) Rate Adjustable from 0.1 – 2.0 ml/h (Default: 0.1 ml/h)
Occlusion Pressure 40.0 – 160.0 kPa (3 adjustable levels: Low, Middle, High with dynamic display)
Alarms Syringe disengaged, Occlusion, Infusion near empty, Infusion completion, No operation, AC failure, Low battery, Battery exhausted, Malfunction
Internal Battery Rechargeable Li-Polymer battery (7.4V, 1900mAh or 2550mAh). Lifespan up to 5–8 hours at a 5ml/h rate.
Power Supply AC: 100–240V, 50/60Hz; DC: 12V ±1.2V
Power Consumption 25VA
Dimensions & Weight 300 mm (L) × 130 mm (H) × 125 mm (W); Net Weight: 1.8 kg
Waterproof Level IPX3

Key Features

  • Intelligent Syringe Recognition: Automatically identifies various syringe types, specifications, and sizes upon installation without manual configuration.

  • Double CPU Configuration: Two separate microprocessors work in tandem to cross-verify operations, guaranteeing highly reliable and safe fluid delivery.

  • Anti-Bolus System: Automatically reduces pressure in the line following an occlusion alarm to prevent an accidental post-occlusion bolus release into the patient.

  • Dynamic Pressure Sensing: Real-time numeric and graphic indicators show pressure changes inside the tubing, allowing clinicians to rectify blockages before triggers occur.

  • Night Mode: Provides better rest for recovering patients by turning down key clicking sounds and dimming screen backlighting automatically.

Product Highlights

  • High Precision: Exceptional fluid management capabilities handling precise flow rates as low as 0.1 mL/h.

  • Stackable & Expandable Space Saver: Features a hidden built-in handle. Units lock securely together and can expand from a 2-pump stack up to a 6-pump system (HK-400III configuration) to minimize pole clutter.

  • Versatile Pole Mounting: Accommodates a 90-degree rotatable clamp mechanism, adjusting quickly for horizontal bars, anesthesia columns, or traditional vertical IV poles.

  • Extensive History Logging: Equipped with a built-in memory storage capable of recording up to 1,600 historical clinical events.

Use Cases

  • Neonatal & Pediatric Intensive Care (NICU/PICU): Administering micro-doses of highly concentrated medications to low-birth-weight infants.

  • Anesthesia & Operative Rooms: Precision handling for Total Intravenous Anesthesia (TIVA) procedures during surgeries.

  • Intensive Care Units (ICU/CCU): Continuous delivery of vasopressors, antiarrhythmics, or nutritional therapies (TPN).

  • Emergency Transport: The durable 5-to-8-hour internal battery life and light frame make it suitable for inter-hospital patient transfers.

In the Box

(Note: Standard retail configurations may vary slightly by country/dealer)

  1. Hawkmed HK-400 Series Syringe Pump Main Unit

  2. Integrated 90-Degree Rotatable Pole Clamp Assembly

  3. AC Power Cord / Cable

  4. Internal Rechargeable Lithium-Polymer Battery Pack (pre-installed)

  5. User Instruction Manual & Technical Guide
