Hawkmed Infusion Pump—HK-100 series

Kaarya

Hawkmed Infusion Pump—HK-100 series

Rs. 0.00
Rs. 0.00
Sold out
Tax included. Shipping calculated at checkout.
18 people are viewing this right now

Availability: Low stock: 5 left

Our Advantages

  1. 1. GST Invoice
  2. 2. Brand New Products
  3. 3. Easy Replacements
  4. 4. Authorized Distributor
  5. 5. Best Price Guaranteed
  6. 6. Multiple Payment Options
SKU: 18064

Shipping & Returns

Free shipping and returns available on all orders!

We ship all US domestic orders within 5-10 business days

View full product details

Product Description

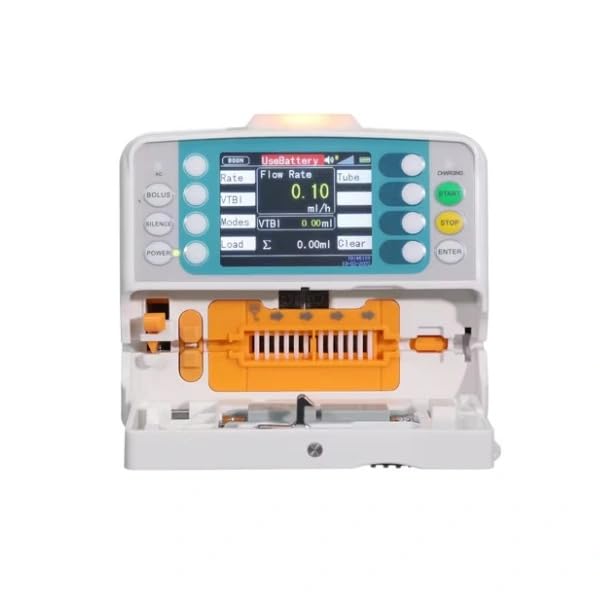

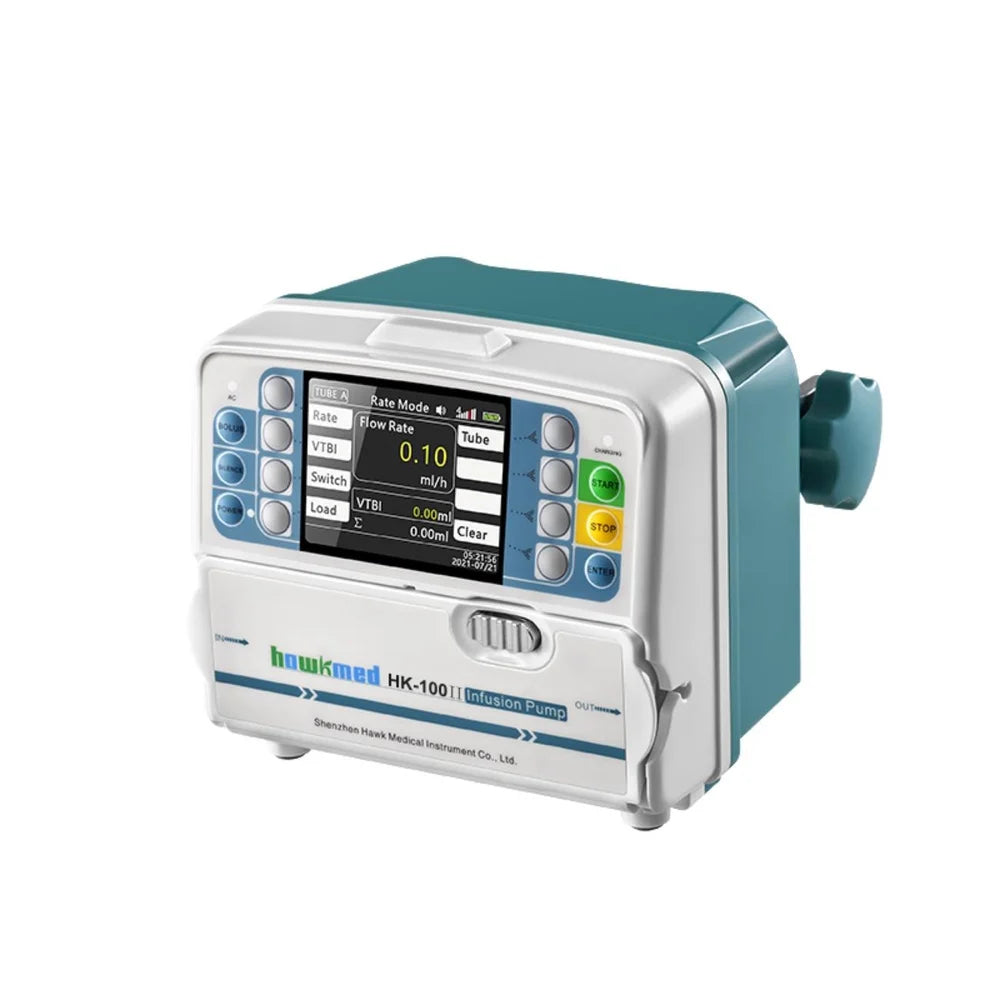

The Hawkmed HK-100 series is a highly compact, lightweight volumetric infusion pump designed to administer fluids, medications, and nutrients safely and accurately. It features a space-saving footprint optimized for clinical efficiency, making it easy to mount on vertical IV poles, horizontal bars, or for use during patient transit. Equipped with a user-friendly soft-key layout, dual CPUs, and distinct color displays, it simplifies the daily workflow for caregivers while minimizing the risks of wrong dosage or unregulated flow.

Technical Specifications

Parameter Specification Details
Flow Rate Range 0.1 – 1200 ml/h (Micro mode: 0.1 – 99.9 ml/h in 0.1 ml increments)
VTBI (Volume to be Infused) 0 – 9999 ml
Total Infused Volume ($\Sigma$) 0 – 36000 ml
Infusion Accuracy $\pm$ 5% (Supports major standard IV set brands and local certified lines)
KVO (Keep Vein Open) Rate 1 – 5 ml/h
Bolus / Purge Rate Bolus: 300 – 1200 ml/h | Purge: 600 ml/h
Occlusion Pressure 3 adjustable settings: Low, Middle, High
Air Bubble Detection Ultrasound sensor with 4 adjustable sensitivity levels
History Logs Stores up to 2000 events and alarm records
Power Supply AC: 100–240V, 50/60Hz | DC: 12V $$\p$ 1V
Battery Type & Runtime Rechargeable Lithium Polymer (7.4V, 1900mAh). Lasts over 3–5 hours at 25 ml/h
Dimensions & Weight 145 mm (L) × 100 mm (W) × 120 mm (H) | Weight: less than 1.4 kg
Waterproof Rating / Safety IPX3 / Class I, Type CF, continuous operation

Key Features

  • Anti-Free Flow Design: Integrated clamp design stops accidental fluid free-flow when the pump door is opened, protecting patients from rapid overdose.

  • Anti-Bolus Function: Diminishes unwanted fluid boluses injected into patients automatically after clearing a tube line occlusion.

  • Double CPU Protection: Two independent processors cross-monitor data in real time to ensure uninterrupted and error-free infusion.

  • Panel Lock: Prevents accidental or unauthorized modifications to pump running rates and volume configurations.

  • Removable Pump Body: The internal mechanical core components can be slipped out effortlessly for routine sanitization and cleanings.

Product Highlights

  • High Contrast Display & Night Mode: Clear LCD readout panel coupled with a dedicated night-mode setting ensures patients can sleep comfortably without intrusive screen glow.

  • Omnidirectional Pole Clamp: A built-in 90-degree rotatable clamp assembly allows immediate fixation onto standard vertical bedside poles, horizontal stretcher rails, or table platform applications.

  • Top-Mounted Status Light: A status beacon on top flashes green during standard operations, flashes yellow for warnings, and blinks amber/red for high-level emergencies, letting nursing teams track operation at a distance.

  • Smart Memory: Automatically recalls the last infusion rate setting and volume limit to speed up patient setup loops.

Use Cases

  • General Wards & ICU Care: Continuous delivery of standard therapeutic solutions, pain control medications, and antibiotic cycles.

  • Emergency Transport: Compact size and lightweight body (< 1.4kg) make it easy to deploy on gurneys, emergency vehicles, or inter-department transfers.

  • Operating Rooms & Recovery (PACU): Safe titration of delicate continuous anesthetics or vascular drugs requiring strict micro-infusion accuracy.

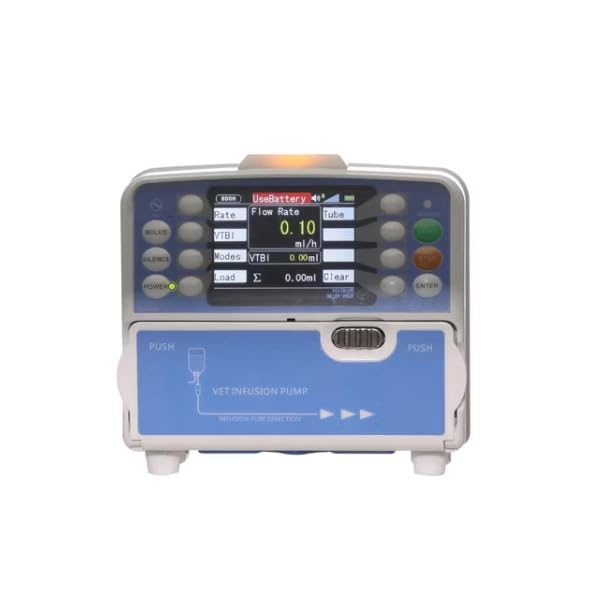

  • Veterinary Applications (HK-100VET variant): Tailored fluid volumes for smaller animal settings.

In the Box

(Note: Minor packaging contents can occasionally vary based on regional distributor accessory bundles)

  • 1 × Hawkmed HK-100 Series Infusion Pump Main Unit

  • 1 × Integrated 90° Rotatable Pole Clamp

  • 1 × AC Power Cord / Adapter

  • 1 × Internal Rechargeable Lithium Polymer Battery Pack

  • 1 × Detachable Drop Sensor Assembly (Optional accessory in some standard configurations)

  • 1 × User/Operation Manual & Quick Start Guide
