Product Description :

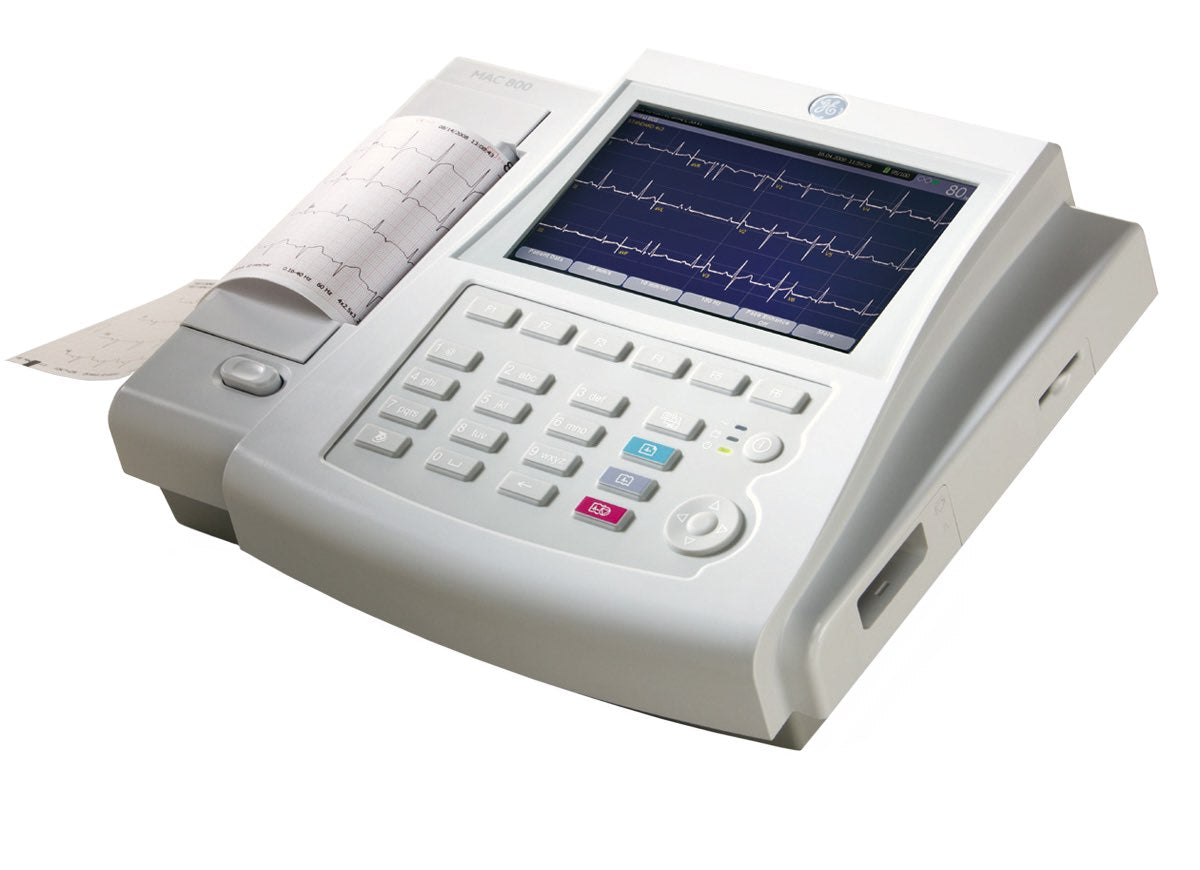

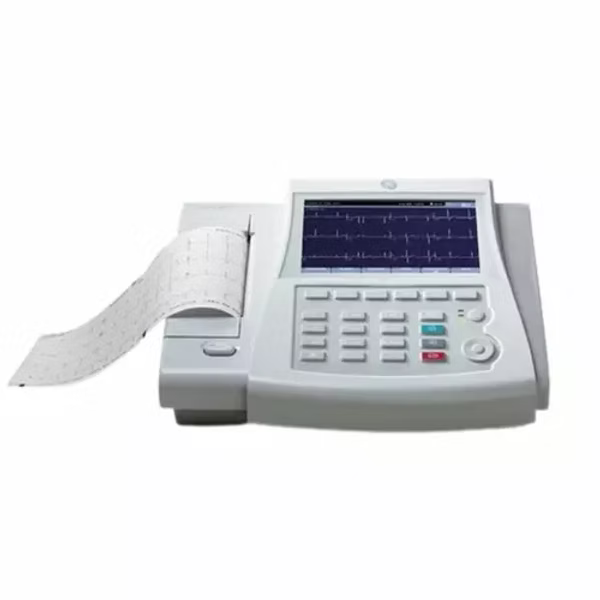

The GE MAC 800 is an advanced, ultra-portable 6-channel resting ECG system featuring a 7-inch color TFT display and an SMS-style T9 keypad. Powered by the industry-standard GE Marquette 12SL analysis software and HookUp Advisor technology, it provides high-precision diagnostic insights and seamless enterprise EMR connectivity for highly mobile healthcare settings.
Technical Specifications :
| Parameter | Specification |
| Leads | Standard 10-leadwire, 12-lead simultaneous acquisition with programmable configurations |
| Channel Format | Up to 6 ECG traces printed simultaneously |
| Display Configuration | 7-inch color TFT display, 800 × 480 pixels |
| User Interface | Sealed rubber membrane T9 (SMS-style) keyboard with quick-access keys |
| Diagnostic Algorithm | Optional Marquette 12SL ECG Analysis Program for Adults and Pediatrics |
| Special Software Controls | ACI-TIPI (Acute Cardiac Ischemia probability score) & RR Analysis (5 mins/500 beats) |
| Digital Sampling Rate | 1,000 samples per second (sps) |
| ECG Analysis Frequency | 500 samples per second (sps) |
| Dynamic Range | AC differential $\pm 10\text{ mV}$, DC offset $\pm 300\text{ mV}$ |
| Frequency Response | 0.04 Hz to 150 Hz |
| Common Mode Rejection | $> 90\text{ dB}$ |
| Input Impedance | $> 10\text{ M}\Omega$ @ 10 Hz, defibrillator protected |
| Baseline Stabilization | Anti-Drift System (ADS) using Cubic Spline correction algorithm |
| Printer Technology | Thermal dot array (Supports 140mm × 110mm Z-fold paper) |
| Writer Speed & Gain | Speeds: 5, 25, 50 mm/s; Gain: 2.5, 5, 10, 20, 40 mm/mV or Auto |
| Internal Record Memory | File manager supports 100 to 300 ECGs in internal memory |
| External Memory Expansion | Secure Digital (SD) card slot (Supports FAT16/32 formatting) |
| Data Export Format | Native PDF and GE XML data formats |
| Connectivity Interface | RJ45 LAN, RS232 Serial port, USB ports, Internal Modem, and optional Wi-Fi |
| EMR Integration | Native synchronization with GE MUSE and CardioSoft Information Systems |
| Battery Infrastructure | Rechargeable Li-ion battery (7.2V, 4.5 Ah); up to 1,000 reports per charge |
| Physical Dimensions | 120 mm × 330 mm × 280 mm (H × W × D) |
| Net Operational Weight | 3.0 kg (6.6 lbs) including internal battery pack |
Features :
Marquette 12SL Analysis Software: Leverages GE’s gold-standard diagnostic engine, incorporating gender-specific analysis to improve the accuracy of detecting acute myocardial infarctions in female patients.
Intelligent HookUp Advisor: Features an integrated signal quality program that measures live waveforms for noise, baseline drift, and artifact interference, giving a clear visual green light once electrode contact is optimal.
Ergonomic T9 Keyboard Layout: Built with a unique, hospital-grade SMS-style rubber membrane keyboard that resists harsh cleaning chemicals and speeds up patient information inputs.
Continuous Monitoring Arrhythmia Mode: Monitors cardiac rhythms over extended periods and triggers an automatic printout report the moment a user-defined arrhythmia event occurs.
Direct EMR Data Flow: Integrates seamlessly into institutional networks via LAN, Wi-Fi, or SD cards to automatically pull worklists and archive completed tests into GE MUSE and CardioSoft systems.
Extended Mobile Runtime: Built with an exceptionally efficient Lithium-ion battery system capable of powering the device through 2 hours of continuous display or printing up to 1,000 single-page reports.
Highlights :
Marquette 12SL Evaluation: Incorporates GE’s elite analytical software package for adults and pediatrics, featuring gender-specific interpretation thresholds to optimize accurate diagnostic detection in female cardiac patients.
Intelligent HookUp Advisor: Actively monitors signal quality and analyzes waveforms for baseline wander, muscle tremors, or bad lead connections, visually alerting the clinician on-screen when structural contact is perfect.
Ergonomic T9 Keyboard Pad: Features a specialized, chemically resilient rubberized SMS-style T9 keypad that streamlines patient data entry while remaining incredibly simple to disinfect between procedures.
Dual Monitoring Modes: Operates across both high-precision standard 12-lead Resting ECG workflows and continuous Arrhythmia monitoring modes that automatically trigger paper recording upon detection of irregular heartbeats.
Pre-Print Trace Preview: Displays a crisp, live waveform readout of all 12 physiological channels simultaneously on its 7-inch color display, helping clinicians confirm signal clarity before utilizing Z-fold thermal paper.
Scalable Storage & PDF Exports: Houses up to 300 clinical reports within its internal database, supporting instant off-line backups or sharing via an integrated SD card slot that outputs native, standard PDF formats.
MUSE & Enterprise Connectivity: Built to seamlessly export cardiac test metadata over LAN, modem, or serial connections directly to institutional GE MUSE or CardioSoft management networks for immediate remote review.
In The Box :
GE MAC 800 Resting ECG Main Unit
10-Lead Replaceable Patient Cable
Reusable Chest Bulb Electrodes (Set of 6)
Reusable Limb Clamp Electrodes (Set of 4)
Rechargeable Lithium-Ion Battery
AC Power Cord and Adapter Block
Starter Z-Fold Thermal Paper Pack
Secure Digital (SD) Card
Comprehensive Quick Start Guide & User Manual
