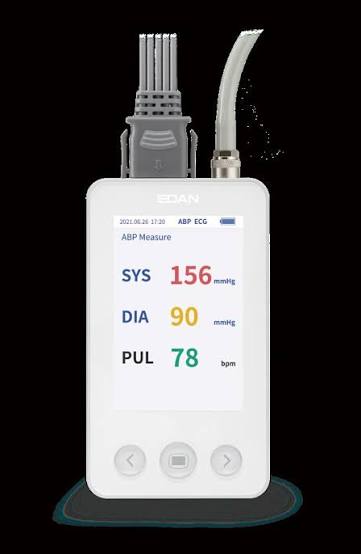

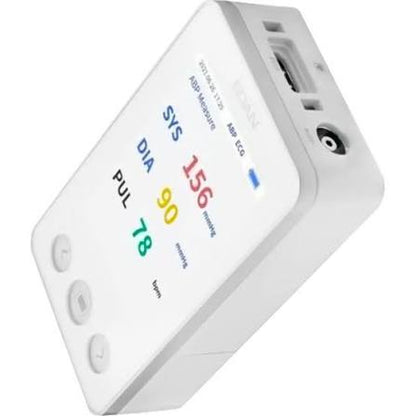

The device shown in the image is the EDAN SA-20 Holter ECG and ABP 2-in-1 System. It is an advanced ambulatory monitor capable of tracking both electrocardiogram data and blood pressure simultaneously.

• Parameters Monitored: Systolic Blood Pressure (SYS), Diastolic Blood Pressure (DIA), and Pulse Rate (PUL / PR) alongside continuous ECG waves.
• ECG Recording: Support for 3/12-lead digital recording with integrated pacemaker detection.
• Blood Pressure Range: Large measurement span ranging from 10 mmHg to 290 mmHg.
• Safety & Protection: Dual overpressure and overtime protection circuits to automatically deflate the cuff and ensure patient safety.

Ingress Protection: Rated at IP22 for dust and water resistance when utilized inside its dedicated carrying pouch.

Power Source: Operational for up to 48 hours using two standard AA batteries

Software Capability: Parallel analysis platform that syncs blood pressure spikes directly with corresponding cardiac events (such as arrhythmia tracking, ST-segment elevation, and Lorenz plots).

Key Specifications

• Monitoring Functionality:

  • Ambulatory Blood Pressure (ABP): Non-Invasive Blood Pressure (NIBP) measurement using the oscillometric method.

  • ECG Monitoring: Integrated ABP + ECG dual-parameter recording for continuous cardiovascular assessment.

• On-Screen Parameters:

  • SYS: Systolic Blood Pressure (mmHg)

  • DIA: Diastolic Blood Pressure (mmHg)

  • PUL: Pulse Rate (bpm)

• Display & Control:

  • High-resolution color LCD screen displaying real-time data, battery level, time, and mode status.

  • Three front-panel navigation buttons (Left, Select/Enter, Right).

• Interfaces & Portability:

  • Top Connectors: Multi-pin connector interface for ECG lead cables and air tube port for NIBP cuff attachment.

  • Design: Compact, lightweight, portable form factor designed for 24-hour ambulatory monitoring.

• Safety & Built-in Features:

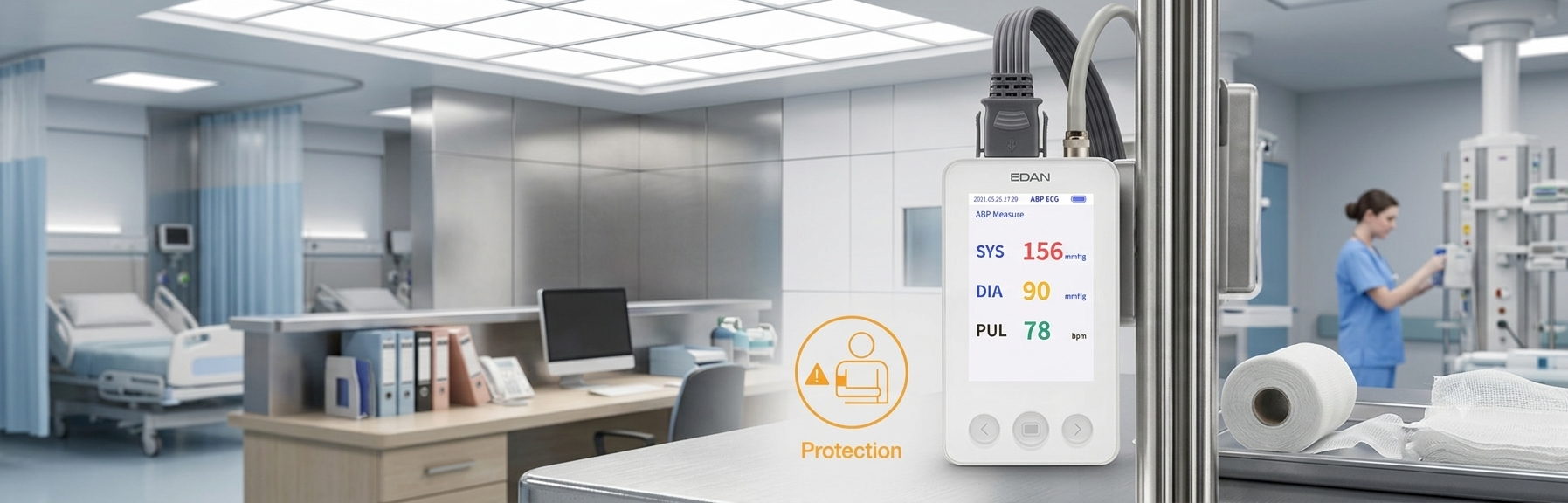

  • Safety Protection: Built-in overpressure protection mechanism (indicated by the arm protection icon).

  • Power: Rechargeable internal battery or standard battery operation for all-day mobile recording.
