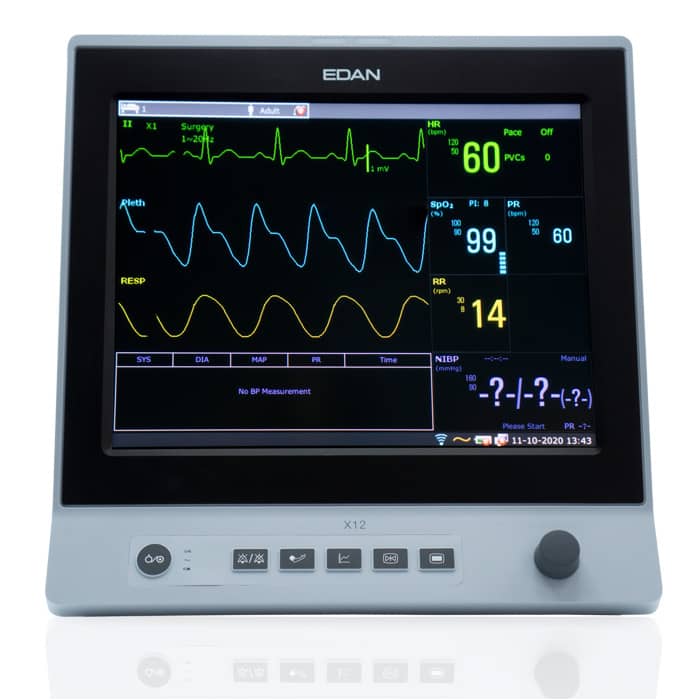

The Edan X12 Patient Monitor features a 12-inch touch screen and includes a skin temperature probe, NIBP tubing, an adult cuff, a reusable SpO2 sensor, a battery, snap electrodes, a power cable, a 3-Lead ECG cable, and a grounding cable.
Features
Edan X12 Patient Monitor Features
- Optional CO2.
- 8 GB internal memory.
- 240 hours of trend graph and table review.
- Arrhythmia and S-T analysis.
- Ultra slim 12-inch touch screen.
- Intuitive shortcut menu.
- Wifi capability.
- Cable receiving design.
- Built-in carry handle.
Specifications
Edan X12 Patient Monitor Specifications
-
Anti-electroshock Type: Class I equipment and internal powered equipment.
-
Anti-electroshock Degree: CF.
-
Ingress Protection: IPX1.
-
Working System: Continuous operation equipment.
-
Compliant with Standards: IEC 60601-1: 2005+A1 :2012; IEC 60601-1-2: 2014; EN 60601-1: 2006+A1 :2013; EN 60601-1-2: 2015; IEC 60601-2-49: 2011.
-
Size: 306 ± 2 mm (W) × 309 ± 2 mm (H) ×151 ± 2 mm (D).
-
Weight: 3.5 kg.
-
Working: +0° C to + 40° C (32° F ~ 104° F). When the battery is charged: +0° C to +35° C (32° F ~ 95° F).
-
Transport and Storage: -20° C to + 55° C (-4° F ~ 131° F).
-
Humidity:
-
Working: 15%RH ~ 95%RH (non-condensing).
-
Transport and Storage: 15%RH ~ 95%RH (non-condensing).
-
Altitude:
-
Working: 86 kPa ~ 106 kPa.
-
Transport and Storage: 70 kPa ~ 106 kPa.
-
Power Supply: 100 V-240 V~,50 Hz/60 Hz. Current = 1.4 A-0.7 A.
-
Display Screen: 12.1-inch color TFT, supporting touch screen.
-
Resolution: 800 × 600. A maximum of 13 waveforms.
