Edan SE-601 6-Channel ECG

Kaarya

Edan SE-601 6-Channel ECG

Rs. 0.00
Rs. 0.00
Sold out
Tax included. Shipping calculated at checkout.
26 people are viewing this right now

Availability: In stock

Our Advantages

  1. 1. GST Invoice
  2. 2. Brand New Products
  3. 3. Easy Replacements
  4. 4. Authorized Distributor
  5. 5. Best Price Guaranteed
  6. 6. Multiple Payment Options

Shipping & Returns

Free shipping and returns available on all orders!

We ship all US domestic orders within 5-10 business days

View full product details

Key Features

  • SKU: EDN-SE-601A
  • Condition:
    Factory New
  • Weight: 6.61 lb
  • Cost-effective solution for hospital wards, routine checks, home visit, and emergency cases
  • Intended to acquire ECG signals from adult and pediatric patients through body surface ECG electrodes
  • 800 ECG test memory
  • Built-in rechargeable Li-on battery, 2500 mAh, for 1.5 hours of continuous printing, 300 ECG reports

Description

The Edan SE-601 6-Channel ECG includes:

  • ECG Cable [(4 mm, banana connector, AHA) (#01.57.471614)].
  • (100x) Bio ProTech Resting Tab Electrodes (#PT-2334).
  • (10x) 10-Lead Universal Clips (#01.57.040172).
  • Recording Paper [(Z-fold, 110 mm x 140 mm x 144 p) (#SE-601P)].
  • Fuse [(T400 mA, USA standard) (#01.21.64074)].
  • Power Cord [(USA Standard) (#21.13.036384)].
  • Power Adapter - 16 V (#21.21.064244).
  • Rechargeable Lithium Battery [(2500 mAH) (#21.21.064149)].



The SE-601 series is a cost-effective solution for hospital wards, routine checks, home visit, and emergency cases. It is intended to acquire ECG signals from adult and pediatric patients through body surface ECG electrodes. The cardiogram recorded by the electrocardiograph can help users to analyze and diagnose heart disease.

Features

Edan SE-601 6-Channel ECG Features

  • FDA Approved.
  • Heart rate variability (HRV) and R to R Trending analysis.
  • Auto analyzing and Diagnostic software (Glasgow Interpretation).
  • Portable, lightweight design.
  • Easy data input and operation.
  • Alphanumeric keyboard and one-touch operation.
  • Built-in rechargeable battery, AC/DC power supply.
  • Pacemaker detection which meet the requirements of ANSI/AAMI EC11.
  • Automatic analysis and diagnostic software for adults and pediatrics.
  • Two-step exercise test with periodic recording.
  • Weak signal detection.

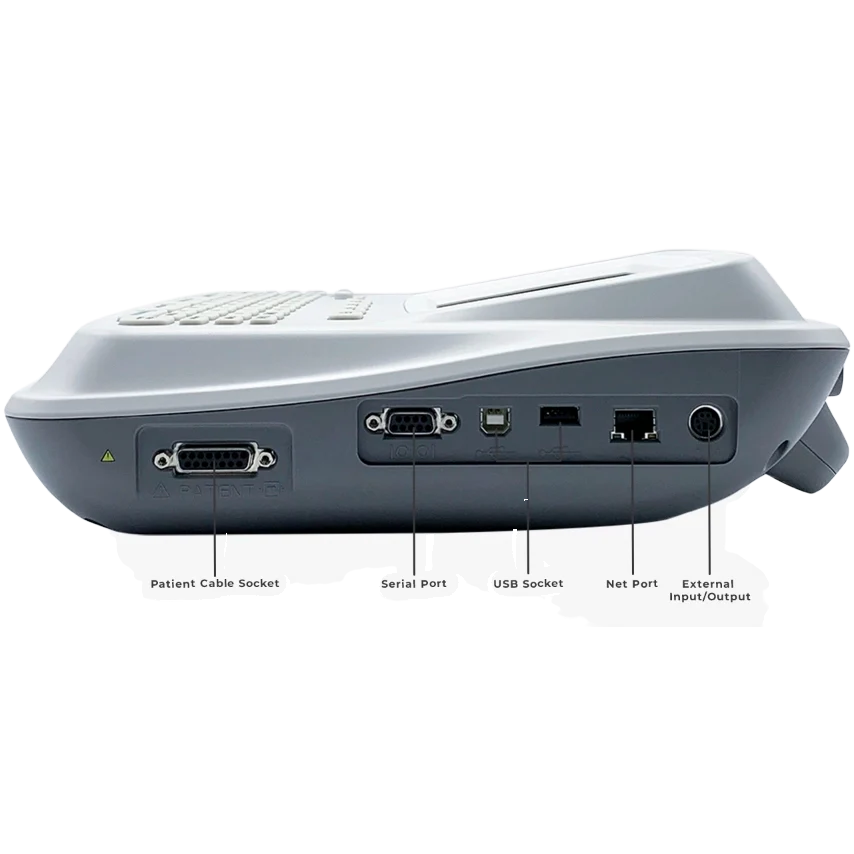

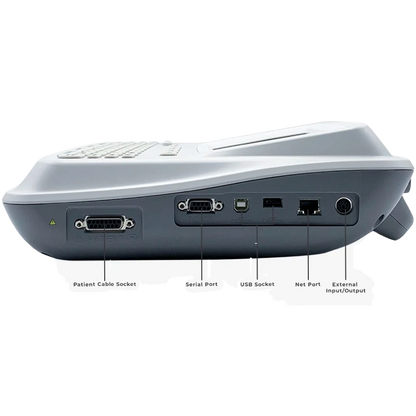

  • Support external archiving: USB flash disk, card reader.
  • Standard 12 leads.
  • 800 ECG test memory.
  • Acquisition Mode: 12 channel simultaneous acquisition (10 to 24 s adjustable).
  • Recorder: Thermal dot-matrix.
  • Data Transmission: Wi-Fi, Ethernet, RS232.

Specifications

Edan SE-601 6-Channel ECG Specifications

  • Weight: 6.6 lb (3 kg) excluding battery and paper.
  • Dimensions: 310 mm x 322 mm x 101 mm.
  • A/D Converter: 24 bits.
  • Sampling Frequency: 16000 Hz.
  • Time Constant: ≥ 3.2 s.
  • Frequency Response: 0.01 to 300 Hz (-3 dB).
  • Calibration Voltage: 1 mV ± 2%.
  • Gain: 2.5, 5, 10, 20, 10/5, mm/mV, AGC.
  • Input Impedance: ≥ 100 MΩ (10 Hz).
  • Input Circuit Current: ≤ 0.01 µA.
  • Filter:
    • AC Filter: 50 Hz / 60 Hz.
    • DFT Filter: 0.01 Hz / 0.05 Hz / 0.15 Hz / 0.25 Hz / 0.32 Hz / 0.5 Hz / 0.67 Hz.
    • EMG Filter: OFF / 25 Hz / 35 Hz / 45 Hz.
    • LOWPASS Filter: 300 Hz / 270 Hz / 150 Hz / 100 Hz / 75 Hz.
  • Power Supply:
    • AC: 100 to 240 V, 50/60 Hz.
    • Li-on battery.
  • Battery: Built-in rechargeable Li-on battery, 2500 mAh, for 1.5 hours of continuous printing, 300 ECG reports.
  • Record Paper: 110 mm x 140 mm x 150 p (Z-fold).
  • Paper Speed: 5 mm/s, 6.25 mm/s, 10 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s (± 3%).

Configurations

Edan SE-601 6-Channel ECG Configurations

Part Number Screen Internal Speaker

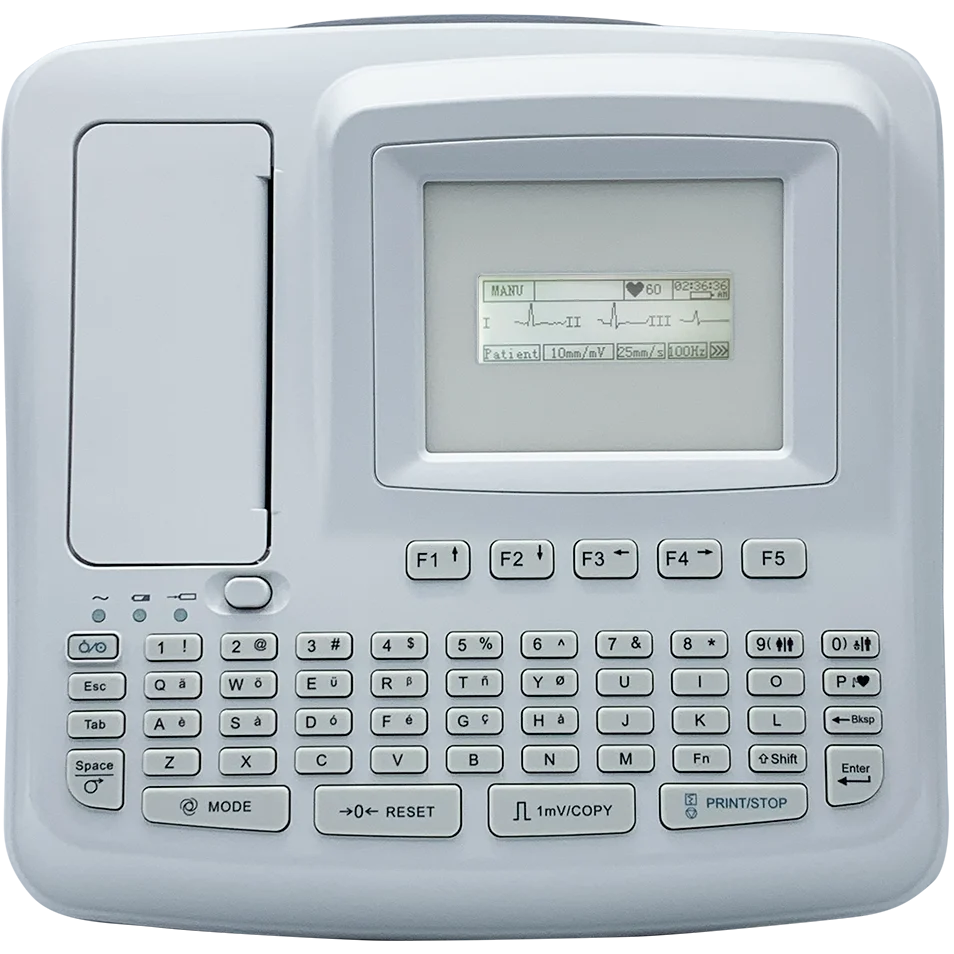

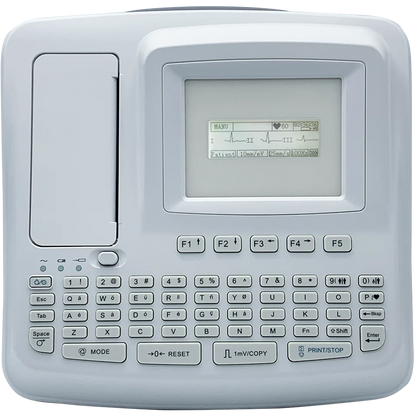

#SE-601A 3.5" STN LCD, 192 x 64 dots Buzzer
#SE-601B 5.7" STN LCD, 320 x 240 dots Loudspeaker

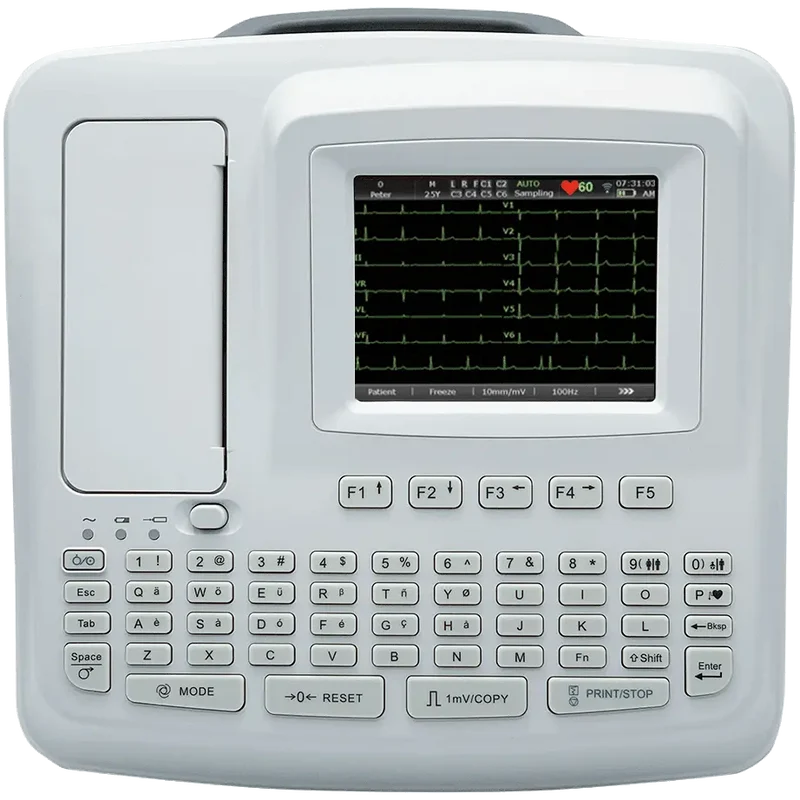

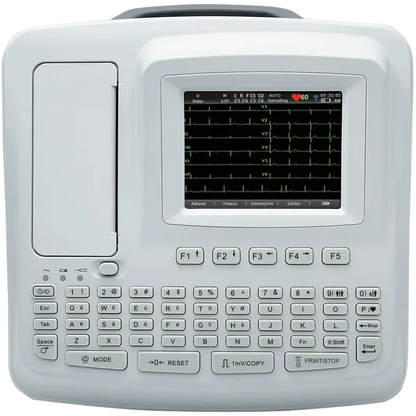

#SE-601C 5.7" TFT Touchscreen color LCD, 640 x 480 dots Loudspeaker
