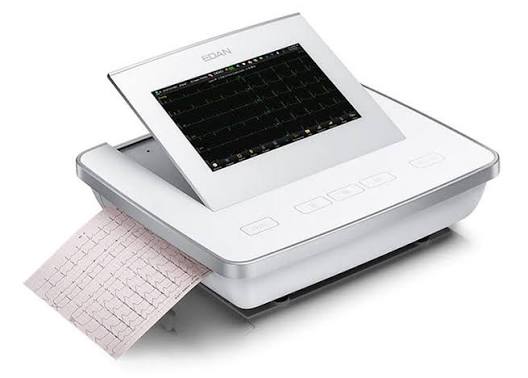

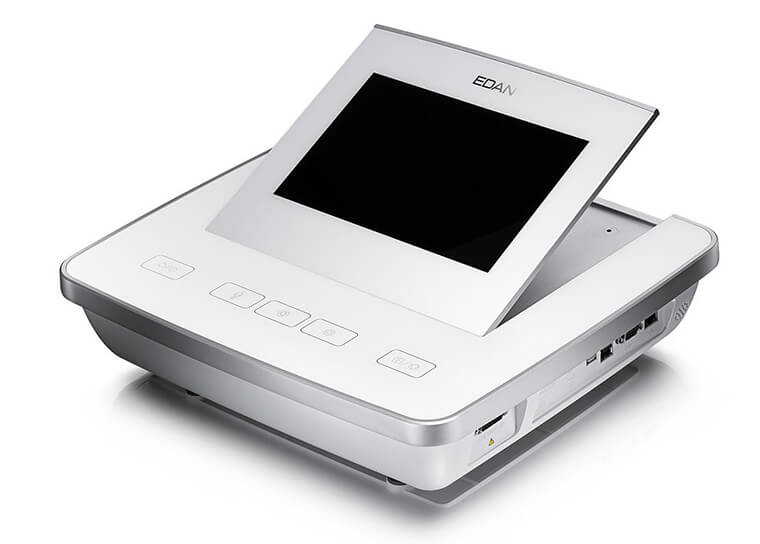

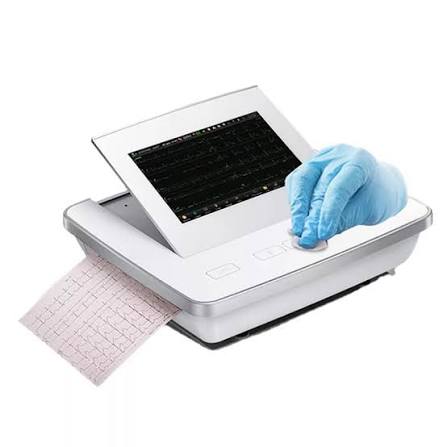

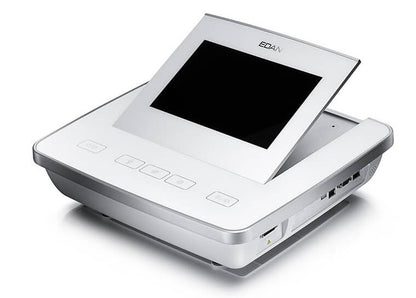

Edan SE-1202 12-Channel EKG Machine

Kaarya

Edan SE-1202 12-Channel EKG Machine

Rs. 0.00
Rs. 0.00
Sold out
Tax included. Shipping calculated at checkout.
19 people are viewing this right now

Availability: In stock

Our Advantages

  1. 1. GST Invoice
  2. 2. Brand New Products
  3. 3. Easy Replacements
  4. 4. Authorized Distributor
  5. 5. Best Price Guaranteed
  6. 6. Multiple Payment Options

Shipping & Returns

Free shipping and returns available on all orders!

We ship all US domestic orders within 5-10 business days

View full product details

Key Features

  • SKU: EDN-SE-1202
  • Condition: Factory New
  • Country of Origin: China
  • Warranty: 1 Years
  • Weight: 14.33 lb
  • Glasgow interpretation
  • 10.1" LCD display with intuitive touch screen interface
  • Preview and printing for waveform and analysis
  • Built-in rechargeable Lithium battery

Description

The Edan SE-1202 12-Channel EKG Machine (#SE-1202) includes an ECG Cable (4mm, banana connector, AHA), 100 resting tab electrodes, 10 Unomedical 10-Lead universal clips, Recording Paper (Z-fold, 210 mm x 295 mm x 100 P), a Power Cord (USA standard), a Rechargeable Lithium Battery (2200 mAH), a Fixed Bar for Battery (Necessary accessory for 2200 mAH battery), and two Fuses (1 A).

Powerful and sleek, the SE-1202 12-Channel EKG Machine provides a comprehensive set of cardiac diagnosis tools paired with cutting-edge to ensure the high-quality performance you've come to expect from Edan. It also features a glass-covered surface which supports easy cleaning and disinfection.

Features

Edan SE-1202 12-Channel EKG Machine Features

  • Glasgow interpretation.
  • Auto analyzing and diagnostic software (interpretation).
  • Preview and printing for waveform and analysis.
  • 10.1" LCD display with intuitive touch screen interface.
  • USB data export.
  • Wifi enabled.
  • Built-in rechargeable Lithium battery.
  • Built-in thermal printer.

Specifications

Edan SE-1202 12-Channel EKG Machine Specifications

  • Dimensions: 400 mm x 360 mm x 90 mm.
  • Weight: 14.33 lb (≤ 6.5 kg - excluding recorder paper and battery).
  • Display: 10.1'', 1280 x 800 multicolor LCD Screen (the display can be flipped 25 degrees clockwise).
  • Power Supply:
    • Mains Supply:
      • Operating Voltage: 100 V - 240 V~.
      • Operating Frequency: 50 Hz/60 Hz.
      • Input Current: 0.9-0.4 A.
    • Internal Li-ion Battery Pack:
      • Rated Voltage: 14.8 V.
      • Rated Capacity: 2,500 mAh or 5,000 mAh.
      • Necessary Charge Time: 3 hours or 6 hours.
  • HR Recognition:
    • HR Range: 30 BPM ~300 BPM.
    • Accuracy: ±1 BPM.
  • ECG Unit:
    • Leads: 9 or 12 standard leads.
    • A/D Converter: 24 bits.
    • Time Constant: ≥ 5 s.
    • Sampling Frequency: 64,000 Hz/channel.
    • Input Impedance: ≥ 100MΩ (10Hz).
    • Input Voltage Range: ≤ ±5 mVpp.
    • CMRR: ≥140dB (AC on). ≥123dB (AC off).
    • Acquisition Mode: 9 or 12 leads acquisition simultaneously.
    • Resolution: 0.1192uV/LSB.
    • Frequency Response: 0.01 Hz ~ 350 Hz (-3 dB).
    • Gain: 1.25, 2.5, 5, 10, 20, 10/5 mm/mV, AGC, ±5%.
    • Input Circuit Current: ≤ 0.01μA.
    • Calibration Voltage: 1mV±2%.
    • QTc Formulas: Bazzet, Fridericia, Framingham, Hodges, and QRS.
  • Pacemaker:
    • Amplitude: ±500μV to ±700 mV.
    • Sampling Frequency: 80,000 Hz, Rhythm Lead.
    • Width: 30μs to 2.0 ms.
  • Filter:
    • AC Filter: Off/50 Hz/60 Hz.
    • EMG Filter: Off/25 Hz/35 Hz/45 Hz.
    • DFT Filter: 0.01 Hz/0.05 Hz/0.32 Hz/0.67 Hz.
    • LOWPASS Filter: 350 Hz/300 Hz/270 Hz/150 Hz/100 Hz/75 Hz.
  • Environment Specifications:
    • Temperature:
      • Transport & Storage: -20º C (-4º F) ~ +55º C (+131º F).
      • Working: +5º C (+41º F) ~ +40º C (+104º F).
    • Atmospheric Pressure:
      • Transport & Storage: 70 kPa ~106 kPa.
      • Working: 70 kPa ~106 kPa.
    • Relative Humidity:
      • Transport & Storage: 15%~95% Non-Condensing.
      • Working: 15%~95% Non-Condensing.
