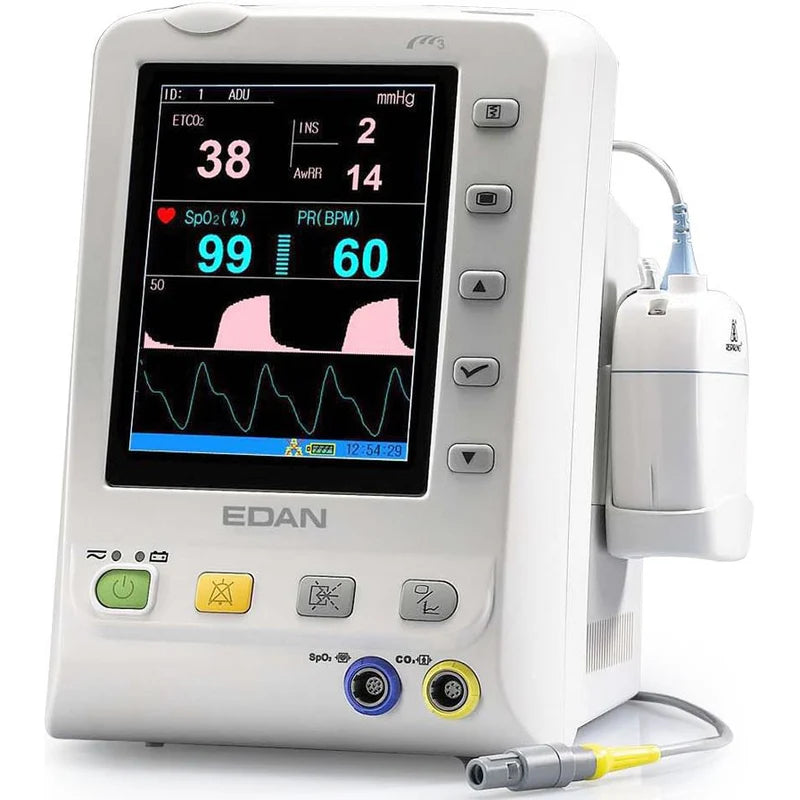

Edan M3B Vital Signs Monitor

Kaarya

Edan M3B Vital Signs Monitor

Rs. 0.00
Rs. 0.00
Sold out
Tax included. Shipping calculated at checkout.
29 people are viewing this right now

Availability: In stock

Our Advantages

  1. 1. GST Invoice
  2. 2. Brand New Products
  3. 3. Easy Replacements
  4. 4. Authorized Distributor
  5. 5. Best Price Guaranteed
  6. 6. Multiple Payment Options

Shipping & Returns

Free shipping and returns available on all orders!

We ship all US domestic orders within 5-10 business days

View full product details

Key Features

  • SKU: EDN-M3B-S
  • Condition:
    Factory New
  • Warranty:
    1 year
  • Weight: 6.61 lb
  • 5.7" high resolution, color TFT screen display for easy reading (640 x 480 resolution)
  • Lightweight, portable design and user-friendly interface for easy operation
  • Edan SpO2, Pulse Rate, and Respironics sidestream or mainstream CO2 measurement
  • Backlight control and standby mode for power saving

Description

The Edan M3B Vital Signs Monitor comes standard with:

  • Edan Adult Reusable SpO2 Sensor [(Lemo) (#02.01.210119-11)].
  • Power Cord [(USA standard) (#01.13.036106)].
  • Rechargeable Lithium-ion Battery [(14.8 V, 2.2 Ah) (#21.21.064168)].
  • Ground Cable (#11.13.114214).
  • User Manual.

Features

Edan M3B Vital Signs Monitor Features

  • 5.7" high resolution, color TFT screen display for easy reading (640 x 480 resolution).
  • Lightweight, portable design and user-friendly interface for easy operation.
  • Edan SpO2, Pulse Rate, and Respironics sidestream or mainstream CO2 measurement.
  • Backlight control and standby mode for power saving.
  • Display numeric and waveform information simultaneously.
  • Nurse call.
  • Powerful storage capacity.
  • Built-in lithium-ion battery for eight hours continuous working.
  • Trend table review and record.
  • Trend graph review and record.
  • USB data storage and review.
  • Wired and wireless network capability.

Specifications

Edan M3B Vital Signs Monitor Specifications

  • Physical:
    • Dimensions: 200.8 mm (L) x 241 mm (H) x 189 mm (D).
    • Weight: 6.6 lb (3 kg).
  • Power Supply:
    • AC Power: 100 - 240 VAC, 50/60 Hz.
    • Battery Type: Lithium-ion.
    • Voltage: 14.8 V DC.
  • Edan SpO2:
    • Measurement and Alarm Range: 0 ~ 100%.
    • Resolution: 1%.
    • Accuracy:
      • Adult/Pediatric: ± 2% (70 ~ 100%).
      • Neonate: ± 3% (70 ~ 100%).
    • PR Measurement and Alarm Range: 25 ~ 300 bpm.
    • Resolution: 1 bpm.
    • Accuracy: 3 bpm.
    • Refresh Rate: 1 s.

Edan M3B Vital Signs Monitor Configurations

Respironics LoFlo EtCO2 Side-Stream Module (#M3B.S): Sidestream is most often used for non-intubated patients with the use of nasal or nasal/oral cannulas. However, the Sidestream module can also be used on intubated patients with the use of an airway adapter (typically used for shot term ventilator care - under three days). Sidestream is commonly used in Emergency Medicine and Procedural Sedation. Side-Stream Module includes all standard accessories, plus:

  • Respironics Disposable CO2 Nasal Cannula - Adult (#3468ADU-00).
  • Respironics Adult/Pediatric Airway Adapter Set With Dehumidification tubing (#3473ADU-00).
  • Respironics Disposable Sampling Line Kit with Nafion and Dehumidification Tubing (#3475-00).
  • #M3B.S-P: Optional Thermal Printer Kit (#12.01.19084).

Respironics CAPNOSTAT5 EtCO2 Main-Stream Module (#M3B.M): The Mainstream sensor can only be used on patients who are intubated and on ventilators. The CAPNOSTAT Mainstream technology is designed for use for long-term ventilator care, typically longer than three days and up to 30 days or longer. Main-Stream Module includes all standard accessories, plus:

  • Respironics Disposable Adult Airway Adapter (#6063-00).
  • Respironics Disposable Neonatal Airway Adapter (#6312-00).
  • #M3B.M-P: Optional Thermal Printer Kit (#12.01.19084).



Accessories

Edan M3B Vital Signs Monitor Accessories

The M3B Vital Signs Monitor is commonly purchased with:

  • #12.01.19084: Thermal Printer Upgrading Kit.
  • #01.57.78035: Thermal Printing Paper for M3, M3B, M50, iM50, and M80 Patient Monitors.
  • #02.04.240050: Data Management Kit.
  • #MT-207: Rolling Stand with upper basket and plate.
