EDAN ECG iSE Series

Kaarya

EDAN ECG iSE Series

Rs. 0.00

Sold out

Tax included. Shipping calculated at checkout.

24 people are viewing this right now

Availability: In stock

Product variants

Quantity

Our Advantages

1. GST Invoice
2. Brand New Products
3. Easy Replacements
4. Authorized Distributor
5. Best Price Guaranteed
6. Multiple Payment Options

Shipping & Returns

Free shipping and returns available on all orders!

We ship all US domestic orders within 5-10 business days

View full product details

Description

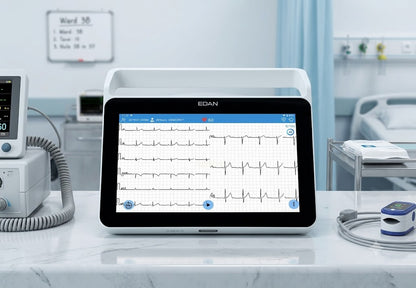

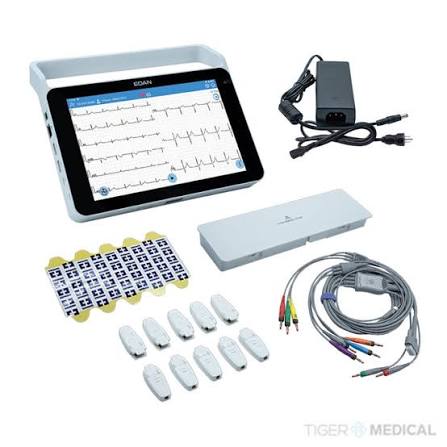

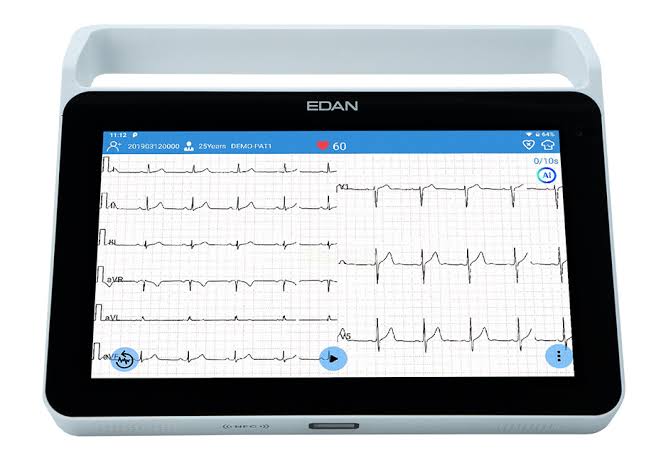

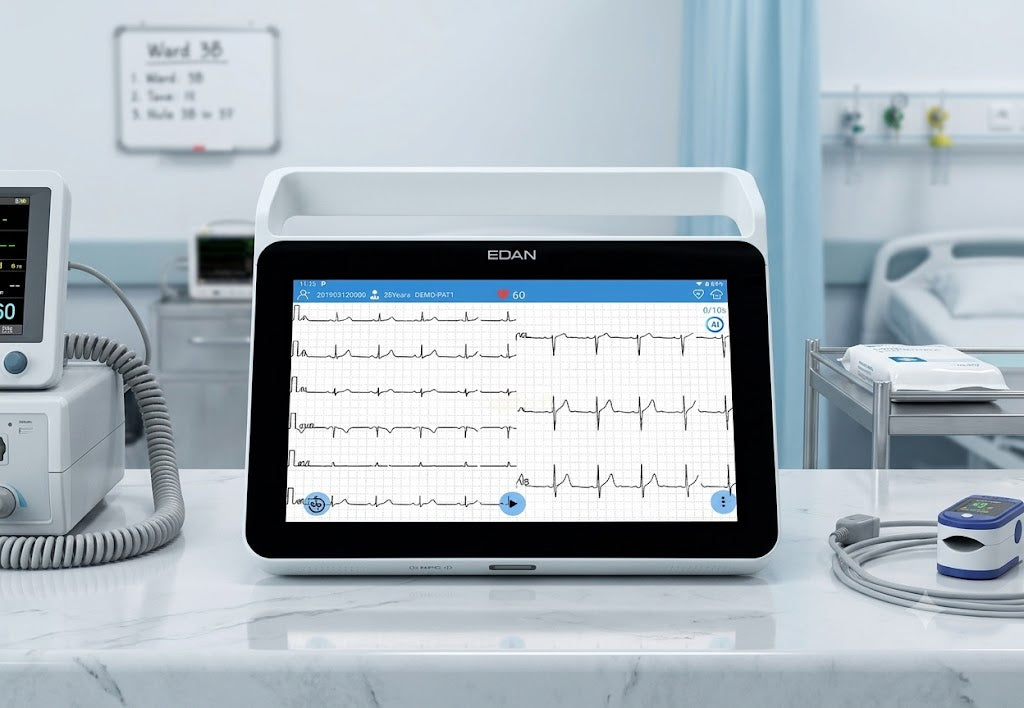

The EDAN ECG iSE Series an advanced, ultra-lightweight, tablet-style electrocardiograph supporting both 12-lead and 18-lead applications. Key features include self-adaptive AC filter technology, a high-definition touch screen, and powerful wireless IT connectivity

Core Features

Display: High-resolution HD touch screen (up to 10" or higher) with a clean, modern tablet interface.

Lead Support: Effortless switching between 12-lead and 18-lead cardiac monitoring.

Smart Filtering: Self-adaptive AC filter technology to dramatically improve signal quality during unstable voltage or noise interference.

Advanced Analysis: Built-in auto-arrhythmia detection, QTc analysis, and Glasgow interpretation.

Battery Life: Long-lasting internal rechargeable lithium-ion battery providing up to 8 hours of continuous use

Connectivity and Workflow

Data Sharing: Bi-directional sync and direct file export via Wi-Fi, Bluetooth, LAN, or 4G/LTE SIM card slot.

System Integration: Seamless communication with EMR, HIS, and DICOM/HL7 hospital networks.

Formats: Generates standard reports in PDF, JPG, FDA XML, and DICOM.

Key Technical Specifications

Display & Build:
- Screen: 10.1-inch high-resolution multicolor LCD capacitive touchscreen (1920 × 1200 / 1280 × 800).
- Design: Lightweight tablet form factor with integrated carrying handle, anti-glare glass screen, and easy-clean surface.
ECG Performance & Acquisition:
- Channels: 12-lead (or optional 18-lead) simultaneous resting ECG acquisition.
- Sampling Frequency: Up to 64,000 Hz/sec per channel.
- A/D Converter: 24-bit resolution.
- Frequency Response: 0.01 Hz to 350 Hz.
- Features: Automatic arrhythmia detection, Glasgow ECG Interpretation, Pacemaker detection, ST-View, and Vector ECG (VCG).
Data Management & Connectivity:
- Storage: Onboard memory stores thousands of examination records (up to 100,000 files).
- Data Export: PDF, JPG, BMP, PNG, FDA-XML, and DICOM.
- Connectivity: Built-in Wi-Fi (2.4 GHz & 5 GHz), Ethernet LAN, Bluetooth, NFC, and optional 4G network support for HIS/EMR integration.
Power & Battery:
- Power Supply: 100V–240V AC, 50Hz/60Hz mains supply.
- Battery: Internal rechargeable Li-ion battery providing up to 8 hours of continuous operation.
