EDAN ECG SE 1200 Express-12-Channel Electrocardiograph

Kaarya

EDAN ECG SE 1200 Express-12-Channel Electrocardiograph

Rs. 0.00
Rs. 0.00
Sold out
Tax included. Shipping calculated at checkout.
24 people are viewing this right now

Availability: In stock

Our Advantages

  1. 1. GST Invoice
  2. 2. Brand New Products
  3. 3. Easy Replacements
  4. 4. Authorized Distributor
  5. 5. Best Price Guaranteed
  6. 6. Multiple Payment Options

Shipping & Returns

Free shipping and returns available on all orders!

We ship all US domestic orders within 5-10 business days

View full product details

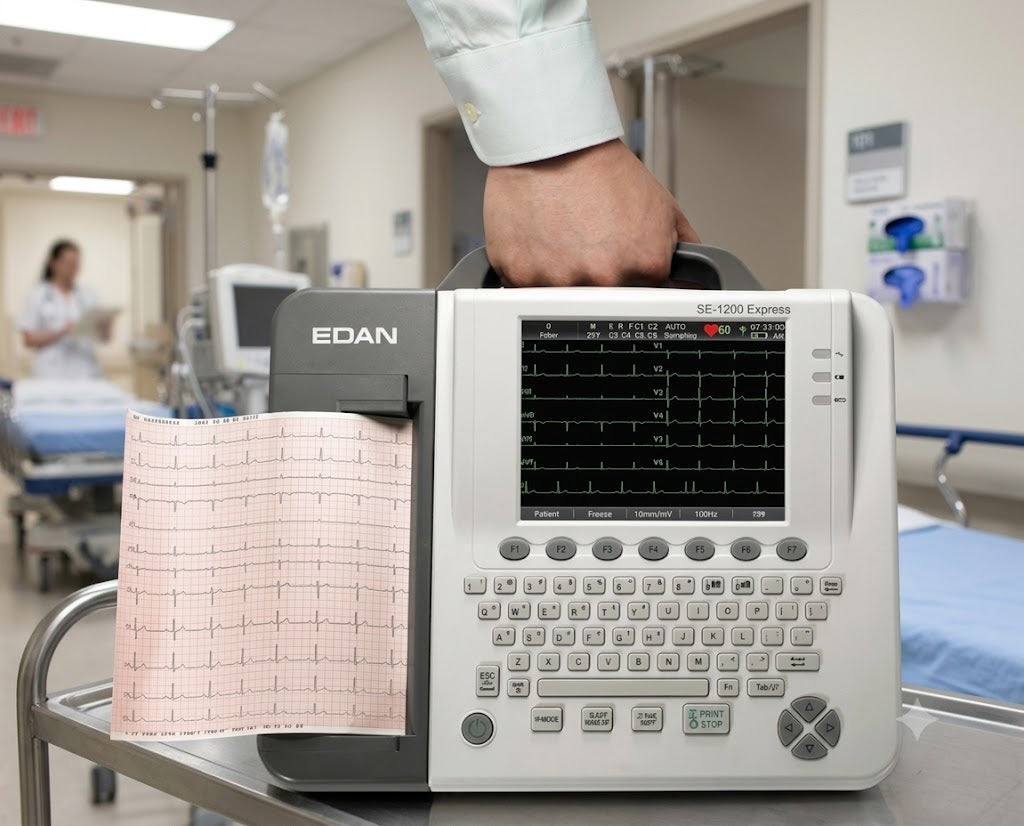

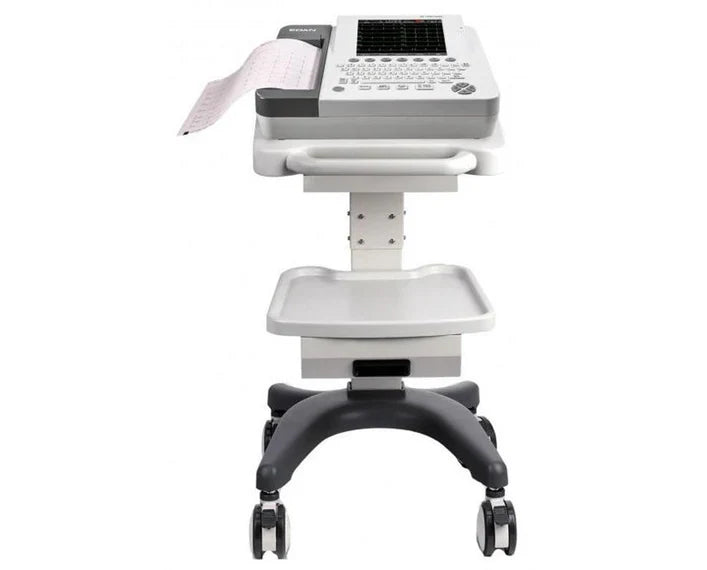

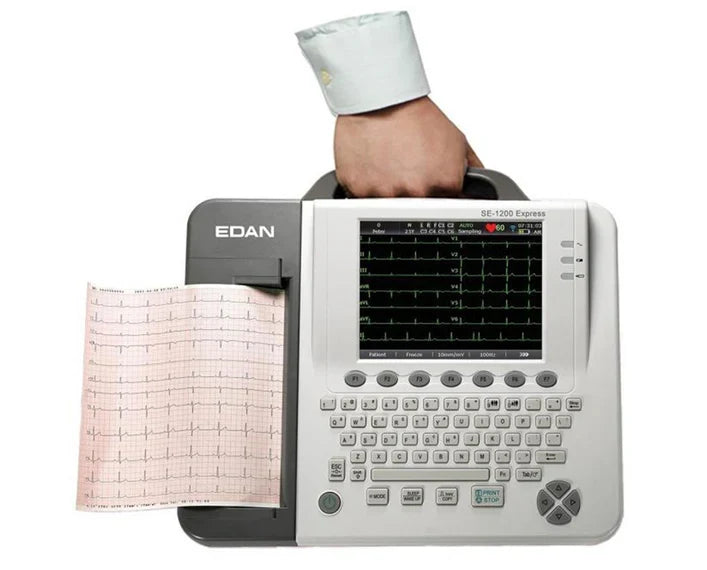

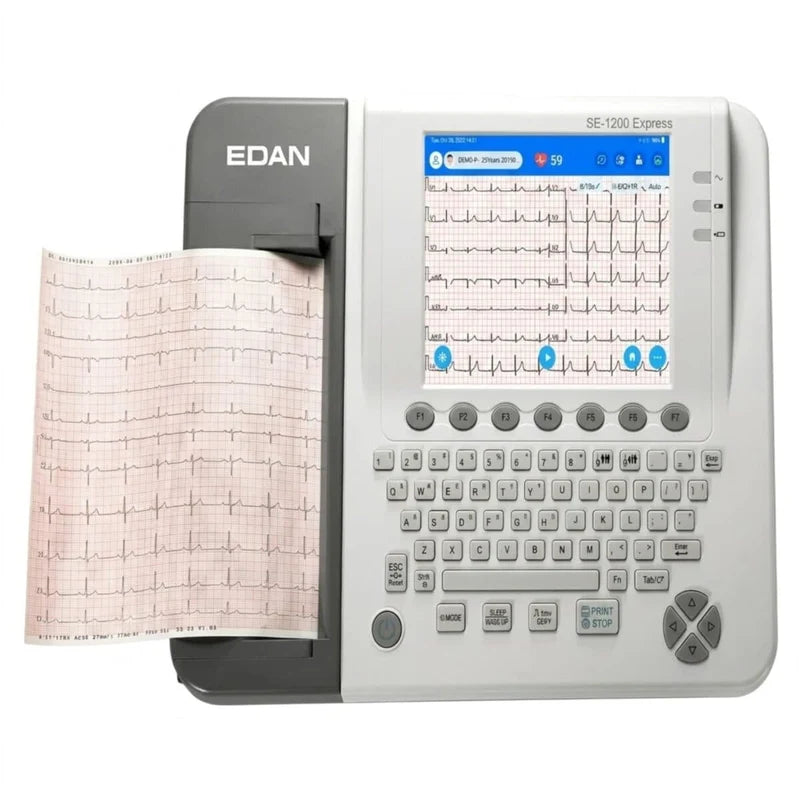

  • ECG SE-1200 Express 12-Channel Electrocardiograph is a high-performance diagnostic ECG system designed for hospitals, clinics, and cardiac care centers. Featuring simultaneous 12-lead acquisition, an 8-inch color touchscreen, automatic ECG interpretation, built-in thermal printer, and advanced signal processing technology, it delivers fast, accurate, and reliable cardiac assessments for healthcare professionals.

# DESCRIPTION

The ECG SE-1200 Express – 12-Channel Electrocardiograph is an advanced diagnostic device designed for accurate and efficient cardiac monitoring in hospitals, clinics, and healthcare centers. Built with cutting-edge technology and a user-friendly interface, it delivers high-quality ECG recordings with enhanced workflow efficiency.

Featuring a capacitive touchscreen display, the system offers an intuitive Android-based interface, making operation simple and seamless. With intelligent acquisition technology, the device automatically begins recording once optimal signal quality is detected, eliminating manual intervention and ensuring precise results. In case of signal disturbance or lead disconnection, the system automatically restarts acquisition to maintain data accuracy.

The ECG supports 12-channel simultaneous acquisition, providing comprehensive cardiac analysis. Advanced diagnostic tools such as ST VIEW and ST MAP offer graphical ST segment analysis, aiding clinicians in quick and reliable decision-making. The device also includes AI-based pacemaker detection, reverse electrode detection, and on-screen waveform analysis for enhanced diagnostic support.

With 10,000 record storage capacity, seamless connectivity to EMR/HIS/PACS systems via DICOM, HL7, and GDT protocols, and secure Wi-Fi encryption, the ECG SE-1200 Express ensures efficient data management and integration within modern healthcare systems.

Ideal for hospitals, diagnostic centers, and clinics, this electrocardiograph combines precision, automation, and connectivity to support high-quality cardiac care.



# SPECIFICATION



Product Name............................................................ECG SE 1200 Express-12-Channel Electrocardiograph
ECG Channels............................................................12 Channels
Lead Acquisition........................................................Simultaneous 12 Leads
Display........................................................................High-Resolution Color LCD Screen
Recording Mode.........................................................Automatic, Manual and Rhythm Recording
Printer Type................................................................Built-in Thermal Printer
Paper Size..................................................................210 mm Thermal ECG Paper
ECG Analysis.............................................................Automatic Measurement & Interpretation
Sampling Frequency..................................................High Precision Digital Sampling
Data Storage..............................................................Internal Memory Storage
Connectivity..............................................................USB Interface
Patient Database......................................................Supported
Power Supply...........................................................AC Power Supply with Rechargeable Battery
Portability.................................................................Compact & Lightweight
Application...............................................................Hospitals, Clinics, Diagnostic Centers
Operating Mode.......................................................Continuous ECG Monitoring & Recording


 # FAQ

1. What is the ECG SE 1200 Express used for?

It is used for recording and analyzing 12-lead electrocardiograms (ECG) to diagnose heart conditions.

2. How many ECG channels does it support?

The device supports simultaneous 12-channel ECG acquisition and printing.

3. Does it include automatic ECG interpretation?

Yes, it includes automatic ECG measurement and interpretation software.

4. What display does the machine use?

It features an 8-inch/8.4-inch color LCD touchscreen display with 800×600 resolution.

5. Can ECG data be transferred digitally?

Yes, ECG reports can be transferred using USB, LAN, Wi-Fi, RS232, and DICOM connectivity.

6. Does it have battery backup?

Yes, it includes a rechargeable lithium-ion battery supporting portable operation and hundreds of ECG recordings.

7. What paper type does it use?

The ECG machine uses 210 × 295 mm Z-fold thermal ECG paper.

8. Is the ECG machine portable?

Yes, its compact ~5 kg design makes it suitable for mobile clinical and ambulance use.

9. What operating modes are available?

It supports Auto, Manual, Rhythm, and R-R analysis modes.

10. Where can the SE-1200 Express be used?

It is ideal for hospitals, diagnostic centers, clinics, emergency rooms, and ambulances.
