Product Description

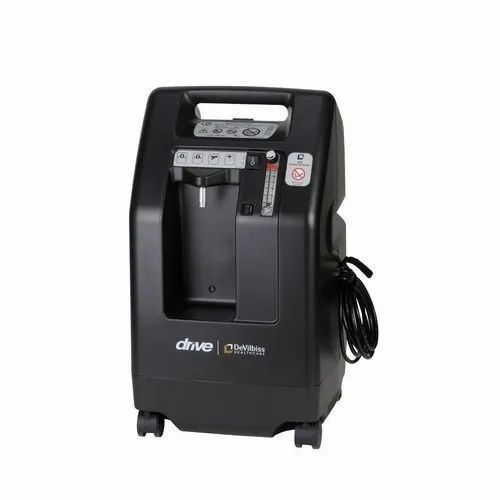

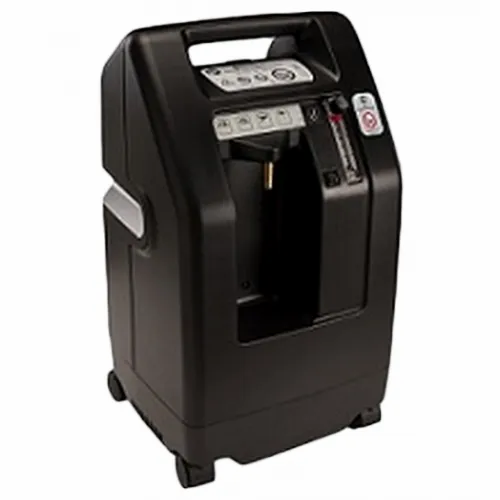

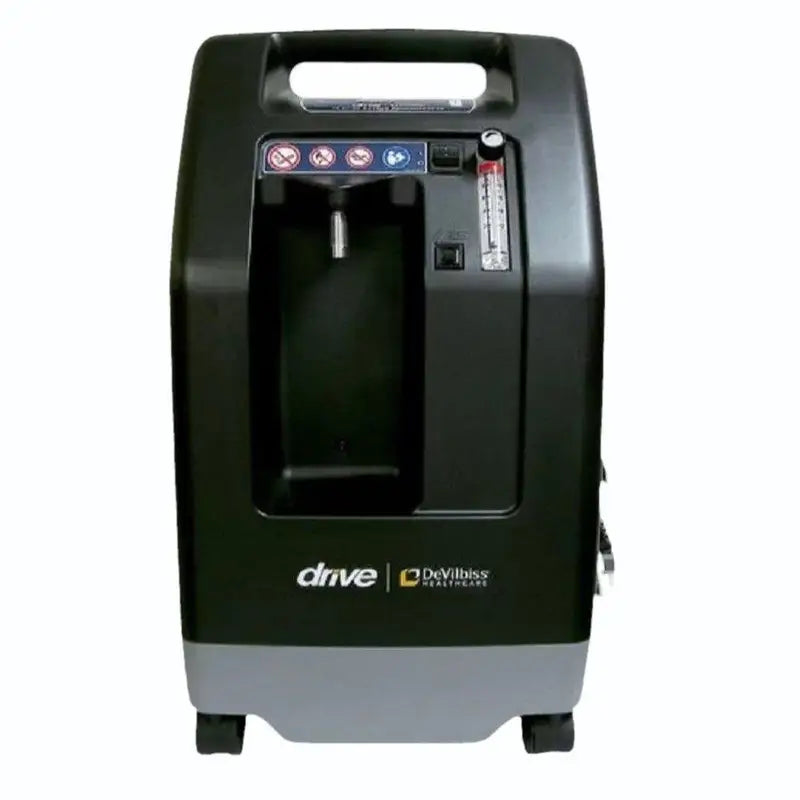

The Drive DeVilbiss Compact 525 is a robust, stationary oxygen concentrator engineered to deliver a continuous, uninterrupted supply of supplemental oxygen therapy for home use. Assembled at a dedicated oxygen therapy facility in Pennsylvania, USA, the device functions by drawing in ambient room air, isolating the oxygen by separating it from other environmental gases using a built-in molecular sieve, and dispensing high-concentration oxygen directly to the patient. It balances a cool, quiet operation with enhanced internal structural reliability to lower operational overhead.

Technical Specifications

Key Features

• Integrated OSD® Sensor: Equipped with an exclusive Oxygen Sensing Device (OSD) that continuously monitors oxygen purity levels at the output stage to guarantee long-term precision and patient safety.
• Intelligent Power Management: Utilizes "Turn-Down Technology," reducing current draw and lowering power consumption by 15% or more when operating at flow rates below 2.5 LPM.
• Comprehensive Alarm Matrix: Features completely battery-free audible and visual warning indicators that alert the user to power failures, low/high flow states, high gas temperatures, system pressure drops, or required device servicing.
• Auxiliary Oxygen Port: Includes a built-in rear auxiliary port capable of interfacing with FDA-cleared cylinder transfill systems (such as the DeVilbiss iFill).

Product Highlights

• Service-Centric Architecture: Designed with a 2-part modular casing to ease maintenance pathways and expedite field servicing.
• Patient-Focused UI: Formed with highly visible, clear pictograms on the front face label, a recessed humidifier nook to shield components from impact, and protected cannula fittings.
• High Environmental Tolerance: Internally tested under extreme heat and elevated relative humidity conditions for long periods to assure compressor and sieve durability.
• Mobility Facilitation: Equipped with a molded top handle, integrated side handles, and four heavy-duty swivel castors to smoothly transport the unit across domestic flooring.

Use Cases

• Stationary Home Oxygen Therapy: Designed for long-term, 24-hour continuous oxygen supplementation prescribed to manage chronic respiratory limitations.
• High-Altitude Accommodation: Tailored for individuals living in or visiting high-altitude regions who suffer from hypoxia due to low ambient air pressures.
• Targeted Clinical/Paediatric Flow: Frequently integrated with low-output/paediatric flowmeters (ranging from 0.125 to 2.0 LPM) to accommodate infants or sensitive flow requirements.
• Management of Chronic Conditions: Utilized as a home therapy solution to alleviate blood-oxygen drops associated with Chronic Obstructive Pulmonary Disease (COPD), emphysema, chronic bronchitis, and severe asthma.

In the Box

• DeVilbiss 5-Liter Stationary Oxygen Concentrator Unit (Model 525 Series)
• Standard Air Filter / Coarse Dust Filter (Pre-installed)
• Main Power Cord (Regional Plug Pattern)
• Bubble Humidifier Bottle Adapter Tubing / Connector
• Standard Adult Nasal Cannula
• Official Manufacturer User Manual / Patient Instruction Guide
