Covidien Handheld Pulse Oximeter - Nellcor PM10N

Kaarya

Covidien Handheld Pulse Oximeter - Nellcor PM10N

Rs. 0.00
Rs. 0.00
Sold out
Tax included. Shipping calculated at checkout.
15 people are viewing this right now

Availability: Low stock: 1 left

Our Advantages

  1. 1. GST Invoice
  2. 2. Brand New Products
  3. 3. Easy Replacements
  4. 4. Authorized Distributor
  5. 5. Best Price Guaranteed
  6. 6. Multiple Payment Options
SKU: 18966

Shipping & Returns

Free shipping and returns available on all orders!

We ship all US domestic orders within 5-10 business days

View full product details

Product Description

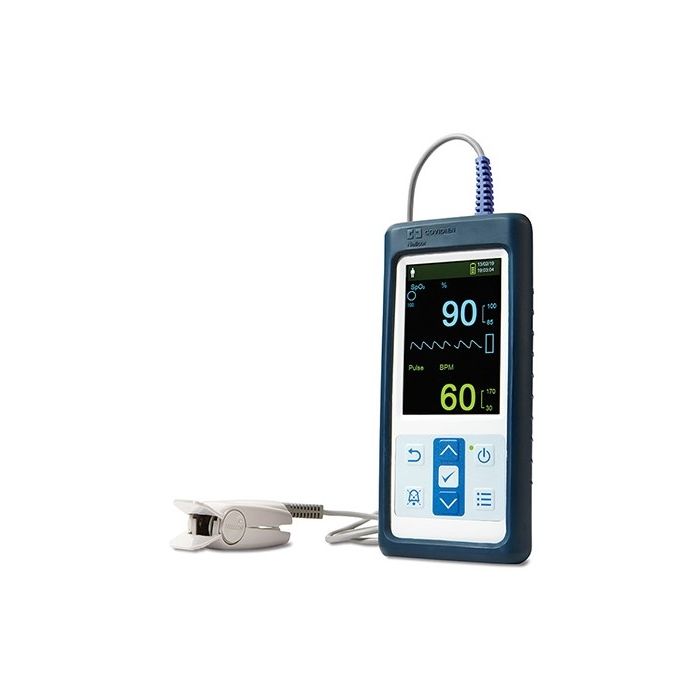

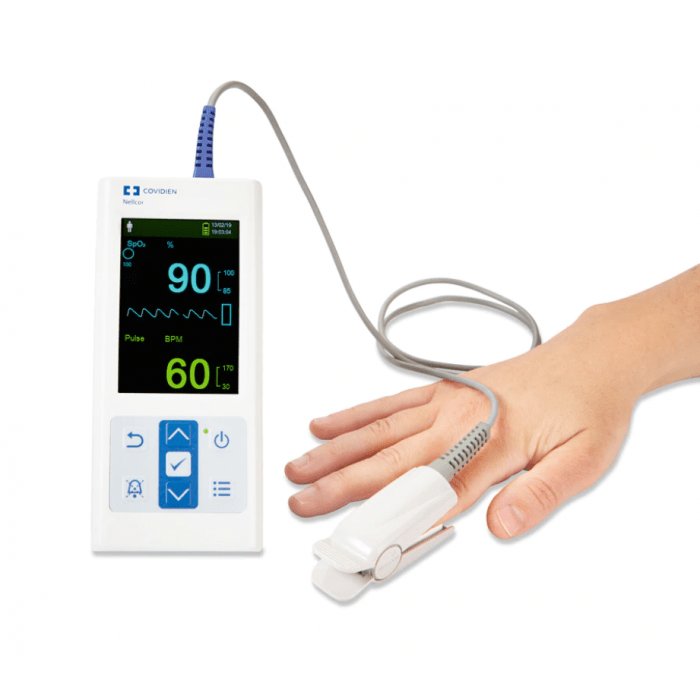

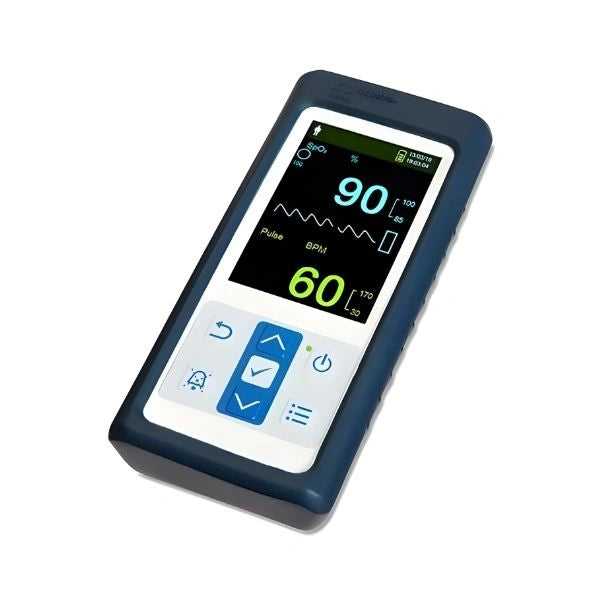

The Nellcor™ Portable SpO₂ Patient Monitoring System (PM10N) is a highly convenient, lightweight, handheld monitor engineered for both continuous monitoring and spot-check diagnostic testing. It leverages advanced digital signal processing technology to deliver highly accurate oxygen saturation (SpO₂) and pulse rate values, even under challenging clinical environments such as patient motion or low perfusion.

Technical Specifications

Parameter

Specification Details

Dimensions

70 mm W x 156 mm H x 32 mm D (2.76 in x 6.14 in x 1.26 in)

Weight

274 g (0.604 lbs), including 4 batteries

Display

3.5-inch TFT LCD, white LED backlight, 320 x 480 pixel resolution

Measurement Ranges

SpO₂: 1% to 100%

Pulse Rate: 20 to 250 beats per minute (bpm)

Perfusion Range: 0.03% to 20%

SpO₂ Accuracy

Adults/Neonates: 70% to 100% (±2 digits)

Low Saturation (Adult/Neonate): 60% to 80% (±3 digits)

With Motion (Adult/Neonate): 70% to 100% (±3 digits)

Pulse Rate Accuracy

Adult/Neonate: 20 to 250 bpm (±3 digits)

With Motion: 20 to 250 bpm (±5 digits)

Data Storage

Up to 80 hours of memory capability (saves date, time, trends, and alarms)

Power / Battery

4 x Lithium AA 1.5V batteries (typically provides 20 hours of operation)

Ingress Protection

IP22 (Protected against common foreign objects and light moisture)



Key Features

  • SatSeconds Alarm Management: A built-in feature that differentiates between serious, clinical desaturations and minor transient events to prevent unnecessary alarm fatigue.
  • Vivid Color Display: Features a bright 3.5-inch graphical interface displaying real-time numerical readings, plethysmographic waveforms, blip bars, and tabular historical trend screens.
  • Ergonomic Design: Small, rounded handheld layout designed for comfort and portability during long shifts or home health checkups.
  • Multi-Mode Functionality: Built with specific patient operational profiles including Standard, Home-Care, and Sleep Study modes.

Product Highlights

  • Advanced Signal Processing: Delivers reliable diagnostic readings even when faced with high patient movement or extremely weak vascular signals (low perfusion).
  • LoSat™ Extended Accuracy: Extends verification security to a wider range (60% to 100% SpO₂) when paired tightly with Nellcor™ adhesive sensors using OxiMax™ technology.
  • Universal Connectivity: Fully compatible with the comprehensive line of reusable, single-patient-use, and specialty veterinary sensors manufactured by Nellcor.
  • Data Portability: Supports wired external data exports directly to a personal computer via a mini-USB connection for robust clinical analysis or chart printing.

Use Cases

  • Hospital & Clinical Wards: Perfect for rapid bedside vitals checks or transient monitoring across medical-surgical floors and emergency rooms.
  • Home Health Monitoring: The designated "Home-Care Mode" limits accidental system parameter modifications, making it highly secure for non-technical caregivers.
  • Patient Transport: Highly portable and resilient form factor fits easily in ambulance, mobile transport, or intra-hospital clinic moves.
  • Sleep Laboratories: The "Sleep Study Mode" allows medical technicians to dim the backlight and mute active audible notifications to protect a patient’s uninterrupted rest phase.

In the Box

  • 1 x Nellcor™ PM10N Handheld Pulse Oximeter Unit
  • 1 x Nellcor™ DS100A Adult Reusable Finger Clip Sensor (standard package inclusions may vary based on specific medical kits like Pediatric or Veterinary variants)
  • 4 x AA 1.5V Lithium Batteries
  • 1 x Official Product User Manual & Documentation Guide
