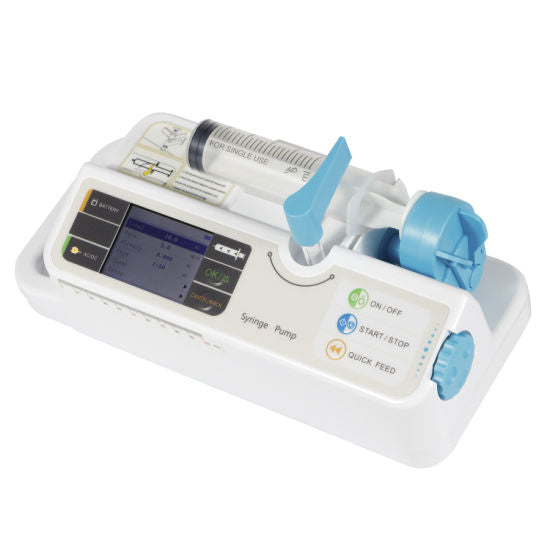

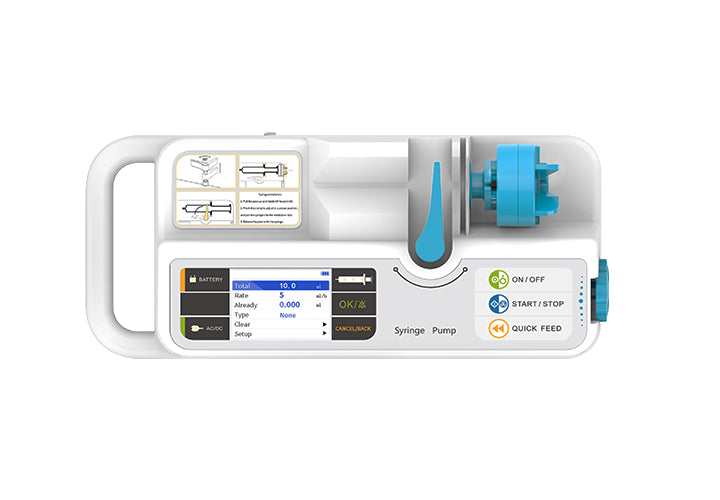

Contec SP950 Precise Syringe Pump

Kaarya

Contec SP950 Precise Syringe Pump

Rs. 16,000.00
Rs. 36,300.00 Rs. 16,000.00
Sold out
Tax included. Shipping calculated at checkout.
19 people are viewing this right now

Availability: Low stock: 5 left

Our Advantages

  1. 1. GST Invoice
  2. 2. Brand New Products
  3. 3. Easy Replacements
  4. 4. Authorized Distributor
  5. 5. Best Price Guaranteed
  6. 6. Multiple Payment Options
SKU: 7543

Shipping & Returns

Free shipping and returns available on all orders!

We ship all US domestic orders within 5-10 business days

View full product details

Product Description

The SP950 utilizes microcomputer and microelectronic technology to provide precise intravenous medication delivery. It features a 2.8-inch TFT LCD for real-time monitoring of infusion parameters, audible and visual alarms to ensure patient safety, and automated syringe size detection. The device is designed to be user-friendly with password-protected settings to prevent unauthorized changes and is compatible with various syringe brands (CNS standard).

Technical Specifications

Feature Specification
Compatible Syringe Sizes 10ml, 20ml, 30ml, 50ml (National Standards/CNS)
Infusion Accuracy ±3%
Infusion Rate Range 0.1 ml/h to 1200 ml/h (varies by syringe size)
Bolus Rate 10ml: 200 ml/h; 20ml: 400 ml/h; 30ml: 600 ml/h; 50ml: 1200 ml/h
Accumulated Volume 0 ml – 9999 ml
KVO Rate 0.1 ml/h to 5 ml/h (adjustable)
Occlusion Alarm Pressure Low: 40 kPa (± 16 kPa); Middle: 70 kPa (± 30 kPa); High: 100 kPa (± 35 kPa)
Power Supply AC 100-240V, 50/60Hz; Built-in rechargeable Lithium battery (7.4V, 5000 mAh)
Dimensions 305 mm (L) x 132 mm (W) x 114 mm (H)
Weight Approx. 1.7 kg
Safety Classification Class II, type BF applied part



Key Features

  • Intelligent Recognition: Automatically detects syringe specifications and alarms for improper installation.

  • Dual-Way Power Supply: Operates on AC power with an automatic switch to a high-capacity rechargeable battery for transport or power interruptions.

  • Safety Alarms: Includes comprehensive alerts for occlusion, syringe displacement, motor abnormalities, empty/near-empty syringe, battery exhaustion, and communication errors.

  • Data Management: Saves injection parameters after shutdown and allows for treatment history review.

  • KVO Function: Automatically switches to "Keep Vein Open" (KVO) mode once the injection is complete.

  • Purge/Bolus Function: Enables rapid delivery of medication when needed.

Product Highlights

  • High Versatility: Supports multiple working modes (rate, time, gradient).

  • Adjustable Thresholds: 10 levels of adjustable occlusion thresholds allow for real-time pressure monitoring.

  • Connectivity: Supports connection to Central Infusion/Management Systems for centralized monitoring.

  • Security: Parameters and syringe type settings are password-protected.

Use Cases

The SP950 is widely utilized in medical institutions for clinical nursing and various intravenous injection requirements, including:

  • Intensive Care Units (ICU) and Cardiac Care Units (CCU)

  • Neonatology and Pediatrics

  • Obstetrics and Gynecology

  • Internal Medicine and Surgery

  • Operating and Emergency Rooms

In the Box

  • Contec SP950 Syringe Pump unit

  • Versatile mounting bracket

  • Power cord

  • User manual

  • Two fuses
