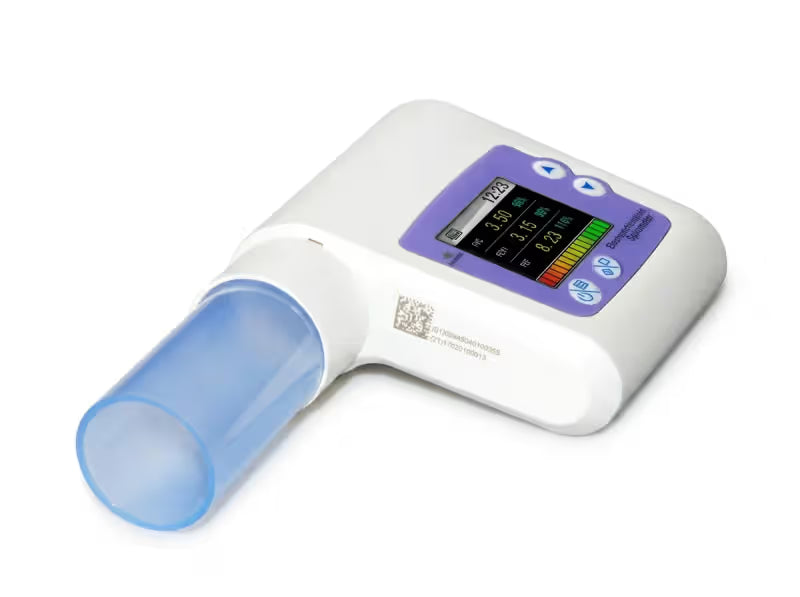

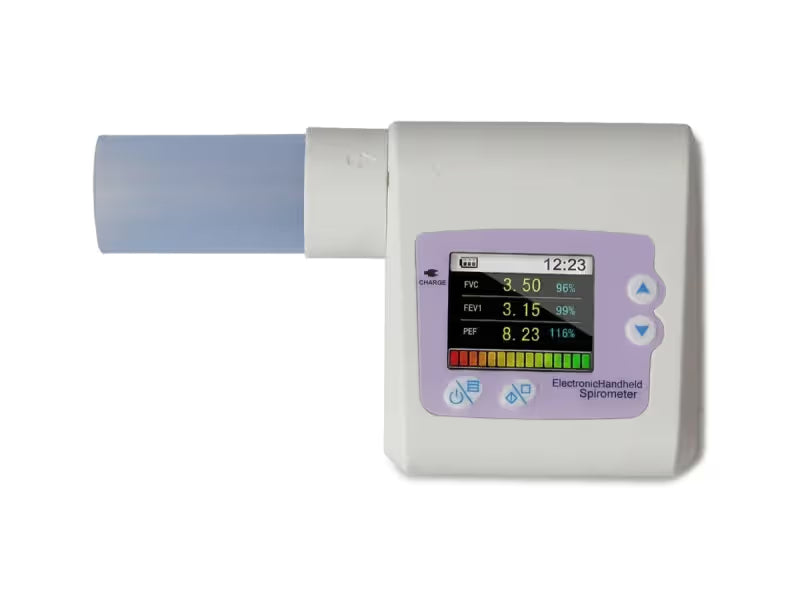

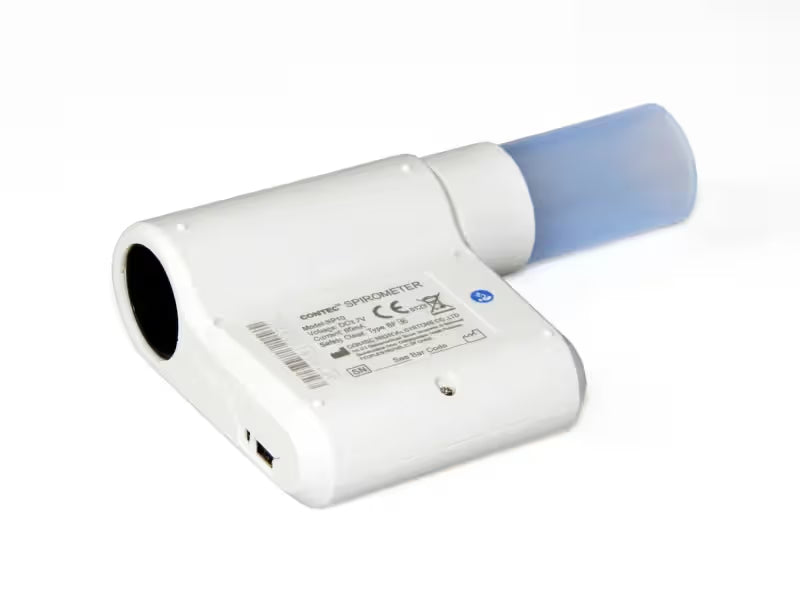

Contec Hand Held CMS-SP10 Spirometer

Kaarya

Contec Hand Held CMS-SP10 Spirometer

Rs. 17,200.00
Rs. 19,300.00 Rs. 17,200.00
Sold out
Tax included. Shipping calculated at checkout.
15 people are viewing this right now

Availability: Low stock: 5 left

Our Advantages

  1. 1. GST Invoice
  2. 2. Brand New Products
  3. 3. Easy Replacements
  4. 4. Authorized Distributor
  5. 5. Best Price Guaranteed
  6. 6. Multiple Payment Options
SKU: 7533

Shipping & Returns

Free shipping and returns available on all orders!

We ship all US domestic orders within 5-10 business days

View full product details

Product Description

The Contec CMS-SP10 is an ultra-thin, portable handheld spirometer designed for checking and monitoring lung conditions. Adopting a reliable infrared mode for measuring relative airflow items, it operates as a lightweight, standalone screening unit. It features a built-in 1.8" color LCD display to show critical respiratory parameters and real-time waveforms. This device makes it easy to measure and track pulmonary function without needing bulky equipment or constant smartphone pairing.

Technical Specifications

Parameter Specification
Display Mode 1.8'' TFT Color Screen (LED Backlight), 160 x 128 pixels
Measured Parameters FVC, FEV1, FEV1%, PEF, FEF25, FEF75, FEF2575
Volume Range 0 to 10 Liters (L)
Volume Accuracy ±3% or ±0.05 Liters (whichever is greater)
Flow Range 1 L/s to 16 L/s
Flow Accuracy ±10% or ±0.3 L/s (whichever is greater)
Power Supply DC 3.7V Rechargeable Lithium Battery
Working Current 60 mA
Battery Life Approximately 4 hours of continuous use
Safety Classification Internally powered equipment, Type BF applied part
Data Memory Stores up to 9,999 test records (depending on specific firmware version updates)
Highest Flow Resistance 6 Pa/L/s (typically occurring at 14 L/s)
Dimensions 97mm (L) × 89mm (W) × 36mm (H)
Net Weight 150 grams

Key Features

  • Dual Graphing Display: Instantly renders Flow Rate-Volume charts and Volume-Time charts on the color screen to assist in assessing test validity.

  • On-Board Data Management: Allows users to store, review, and delete records directly from the device memory.

  • Intelligent Alerts: Automated information prompts flag the user when a patient's volume or flow goes beyond established structural limits.

  • Smart Power Optimization: Features an automatic power-off mechanism that triggers after one minute of inactivity to preserve battery health.

  • Scaling & Calibration: Built-in system support for data scaling to keep sensor readings reliable over time.

  • PC Connectivity: Includes a dedicated USB data interface link to transfer stored testing trends and patient databases over to desktop management software.

Product Highlights

  • Maximum Portability: Weighing just 150g, it is exceptionally compact, making it convenient to transport for field screenings or move between clinic rooms.

  • Comprehensive Metrics: Tracks vital indices including Forced Vital Capacity (FVC), Peak Expiratory Flow (PEF), and the crucial FEV1/FVC ratio.

  • Patient Condition Comparison: Automatically evaluates the testee’s respiratory performance by calculating and displaying the ratio of the measured value against predicted healthy baseline values.

Use Cases

  • Routine Clinical Screenings: Employed by healthcare practitioners in general hospital wards, small clinics, and diagnostic labs for regular pulmonary function testing (PFT).

  • Chronic Condition Management: Frequently utilized for monitoring the daily baseline and tracking trends of patients diagnosed with Asthma, COPD, or other restrictive and obstructive lung conditions.

  • Home Health Care: Its straightforward, standalone interface allows home users to record accurate lung data without needing specialized clinical training.

In the Box

  • 1 × Contec CMS-SP10 Handheld Spirometer Main Unit

  • 1 × Plastic Reusable Turbine/Mouthpiece

  • 1 × USB Data Line (for PC software sync)

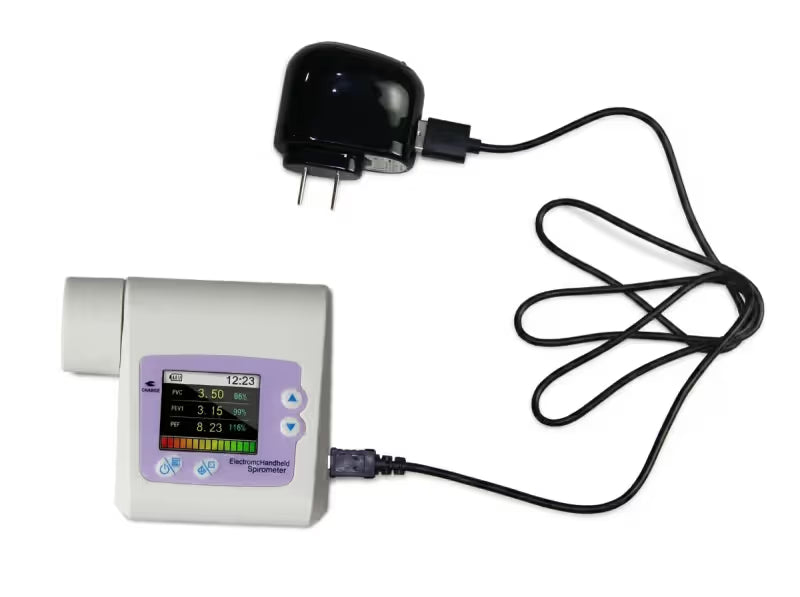

  • 1 × Power Adapter/Charging Kit

  • 1 × PC Data Management Software (download link or disc)

  • 1 × User Manual

  • 1 × Nose Clip (Optional accessory)
