Product Description

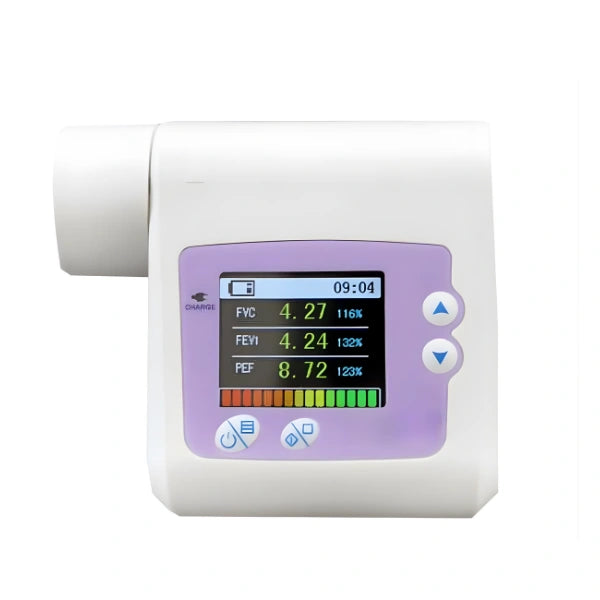

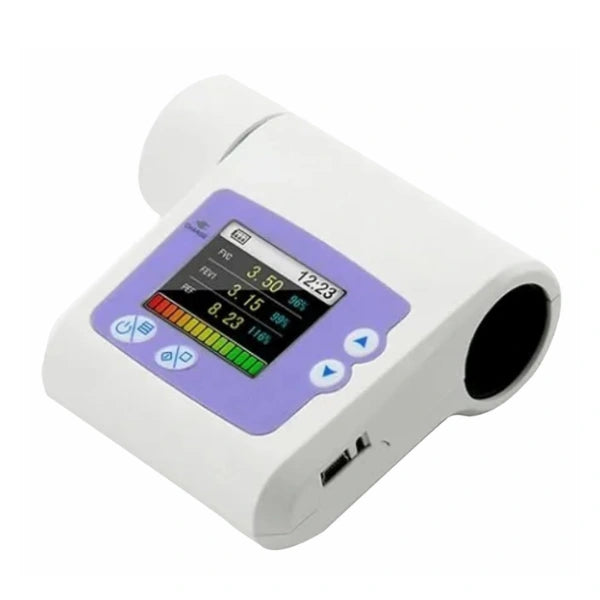

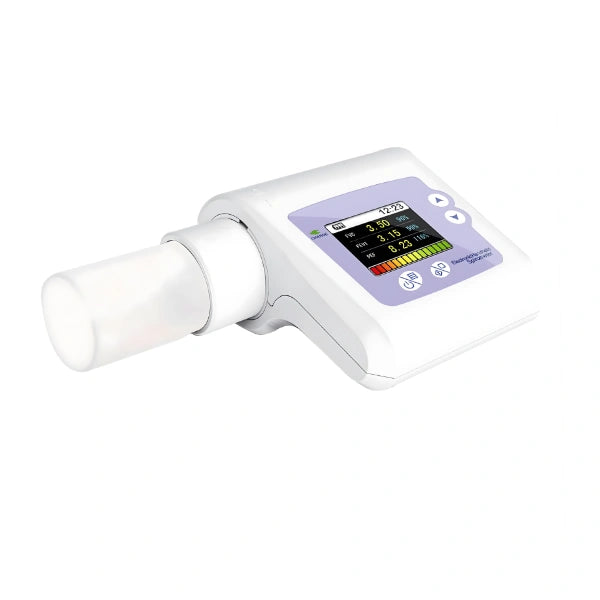

The Contec CMS-SP10 is a ultra-thin, portable, and compact handheld pulmonary function testing device designed to measure and monitor overall lung capacity and respiratory health. Operating via an internal infrared sensor mechanism triggered by a rotating blade turbine, it serves as an efficient screening tool for common obstructive or restrictive lung conditions. It functions as a fully standalone unit, immediately showing respiratory curves on its color display without needing a computer to generate basic test results.

Technical Specifications

Key Features

• Real-Time Visual Graphing: Instantly plots and displays Flow-Volume loops and Volume-Time curves directly on the integrated TFT screen.
• On-Board Diagnostic Analysis: Calculates the ratio between a patient’s measured parameters and standard predicted values to flag abnormalities.
• Automated Power Management: Powers off automatically after one minute of inactivity to preserve battery life.
• Out-of-Bounds Indicator Alerts: Provides information prompts and alerts if a user’s volume or flow readings go beyond default measurement limits.
• Memory & Trend Management: Saves history records on internal storage, allowing clinical staff to delete, review, or look at a patient’s overall health trend chart.

Product Highlights

• True Portability: Weighing only 150g, its small footprint allows health professionals to comfortably carry it from room to room or easily store it for traveling care providers.
• No Calibration Required: Built using an infrared-turbine structural design that operates reliably without requiring daily or routine user calibration routines.
• Comprehensive Data Sync: Comes standard with PC-compatible data management software to upload and map patient histories, change report formats to PDF, or organize records.
• Rechargeable Setup: Eliminates frequent battery changes with a built-in lithium-ion battery that gives up to 4 hours of backup or continuous usage alerts.

Use Cases

• Routine Clinical Screening: Used by hospitals, diagnostic labs, and general practitioner clinics for rapid baseline pulmonary function tests (PFTs).
• Chronic Disease Monitoring: Enables regular, in-home trend tracking for patients diagnosed with respiratory illnesses such as Asthma or Chronic Obstructive Pulmonary Disease (COPD).
• Pre-Operative Care: Assists anesthesia and surgical teams in assessing lung performance before scheduled surgeries.
• Rehabilitation Tracking: Helps respiratory therapists gauge patient progress throughout pulmonary rehabilitation regimens.

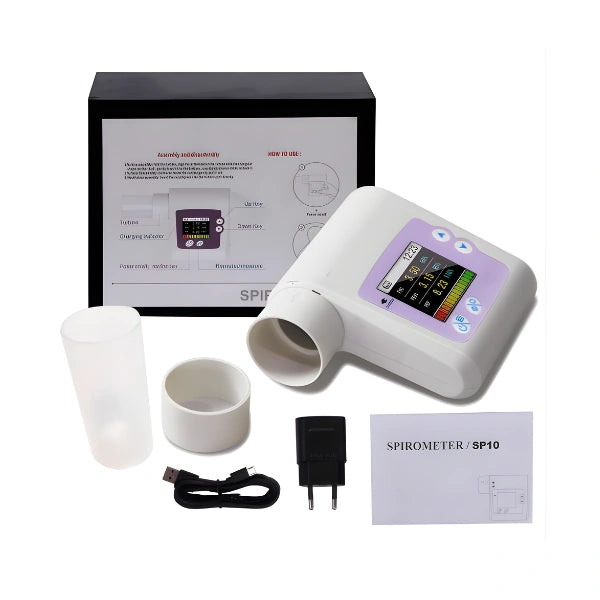

In the Box

• 1 × Contec CMS-SP10 Handheld Spirometer Main Unit
• 1 × PC Connectivity Software (provided via CD or download link)
• 1 × USB Data Cable
• 1 × Disposable Mouthpiece (additional packs sold separately)
• 1 × Power Adapter Charger
• 1 × User Operation Manual
• 1 × Nose Clip (Optional/Depending on specific regional packaging)
