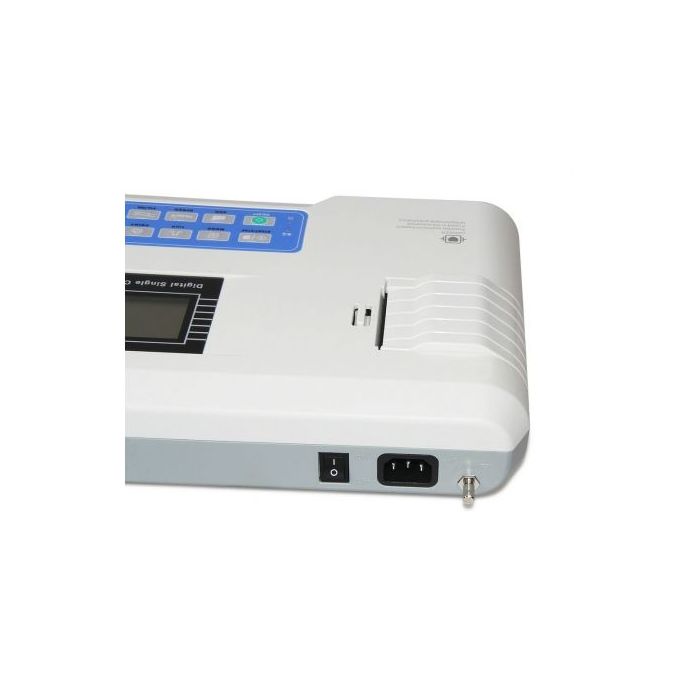

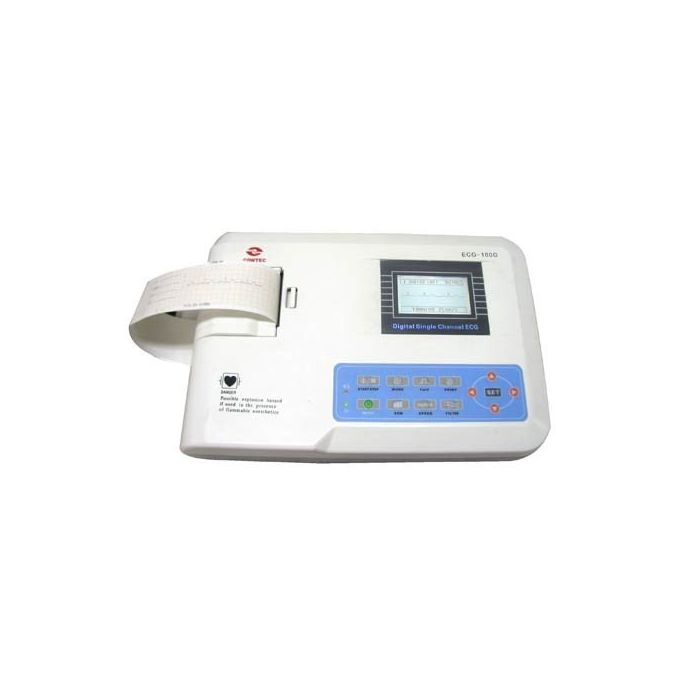

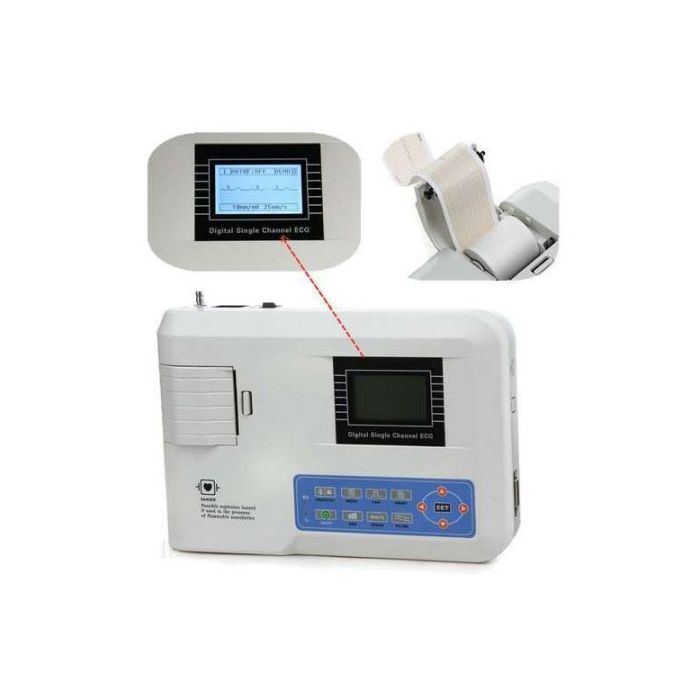

The Contec CMS 100G is a compact, digital, single-channel electrocardiograph designed for routine cardiac diagnostics and heart monitoring. It utilizes advanced digital signal processing (DSP) technology to deliver clean, clinical-grade ECG waveforms. Equipped with a built-in high-resolution thermal printing system and a clear 2.7" to 2.8" STN-LCD display, this device allows healthcare professionals to review waveforms, lead status, sensitivity settings, and filters in real time. Its multi-language capability and dual AC/DC power options make it a reliable and versatile tool for mobile and stationary healthcare facilities.
| Parameter | Details |
| Product Type | Single Channel ECG Machine |
| Lead Configuration | Standard 12-lead acquisition |
| Input Mode | Floating circuit with built-in defibrillation protection |
| Frequency Response | 0.05Hz to 150Hz (-3dB to +0.4dB) |
| A/D Conversion | 12-bit accuracy |
| Sampling Frequency | 800Hz / 1000Hz |
| Common Mode Rejection Ratio (CMRR) | Greater than 60dB (Greater than 100dB with filter added) |
| Time Constant | Greater than or equal to 3.2 seconds |
| Patient Leakage Current | Less than 10µA |
| Noise Level | Less than or equal to 15µVp-p |
| Input Impedance | Greater than or equal to 50MΩ |
| Built-In Filters | EMG Filter: 35Hz (-3dB); AC Filter: 50Hz/60Hz (-20dB); Baseline drift filter |
| Recording System | High-resolution thermal dot array printing system (8 dots/mm) |
| Paper Size / Dimensions | 50mm (Width) × 20m (Length) thermal roll paper |
| Paper Speed Options | 25 mm/s, 50 mm/s (with an error margin of ±5%) |
| Sensitivity Selection | 5, 10, 20 mm/mV (Standard sensitivity is 10mm/mV) |
| Power Supply |
AC: 100V–240V (50/60Hz) DC: 7.4V/2000mAh to 3700mAh rechargeable lithium battery |
| Battery Performance | Up to 7 hours standby; up to 4 hours continuous printing (approx. 150 ECGs) |
| Safety Classification | Class I, Type CF applied part (defibrillation-proof) |
| Dimensions | 315 mm (L) × 215 mm (W) × 77 mm (H) |
| Net Weight | Approximately 1.5 kg to 2.25 kg (depending on battery pack version) |
Advanced Digital Filtering: Employs precise power frequency, baseline, and EMG filters to neutralize electrical noise and muscle tremors without causing waveform distortion.
Dual Operation Modes: Supports both AUTO mode (where a single button press handles auto lead-switching, measurement, and recording to maximize efficiency) and Manual mode for custom targeted tracing.
Real-Time Data Annotation: Automatically prints crucial parameters alongside the waveform, including lead marks, sensitivity settings, paper speed, and filter statuses.
Smart Indicator Safeguards: Features clear "Lead off" visual alerts if a sensor detaches from the patient and a "Lack of paper" notification when the thermal roll is empty.
Multilingual System: Accessible user interface and printed report options in English, French, Italian, German, Spanish, Turkish, Russian, and Kazakh.
High-Definition Printouts: The maintenance-free 8 dots/mm thermal printing array renders crystal-clear diagnostic details instantly.
Exceptional Portability: At under 2.5 kg with an integrated carry-handle form factor, it is highly optimized for travel and point-of-care diagnostics.
Excellent Battery Lifecycle: Its high-capacity DC lithium pack easily manages over 50 patient examinations on a single standalone charge.
Defibrillation Proof: Built with strict electrical separation layers (Class I, Type CF) ensuring complete patient and machine insulation even if a defibrillator is deployed concurrently.
Hospitals and Outpatient Departments (OPDs): Ideal for quick, routine triage screenings and initial cardiac evaluations.
Private Medical Clinics & Nursing Homes: Provides a cost-effective, daily workflow diagnostic solution for family physicians and general practitioners.
Emergency Medical Services (EMS) & Field Camps: The robust battery, lightweight frame, and physical durability make it a go-to tool for disaster relief camps and rural health drives.
Bedside Monitoring: Allows clinicians to easily move the machine to non-ambulatory or ICU patients without disrupting heavy equipment.
1 × Contec ECG/CMS 100G Main Unit
1 × Patient ECG Cable (Standard 12-Lead)
1 × Set of Limb Electrode Clamps (4 pieces)
1 × Set of Chest Suction Electrodes (6 pieces)
1 × Thermal Recording Paper Roll
1 × Power Supply Cable
1 × Earth Grounding Wire
1 × User Manual
