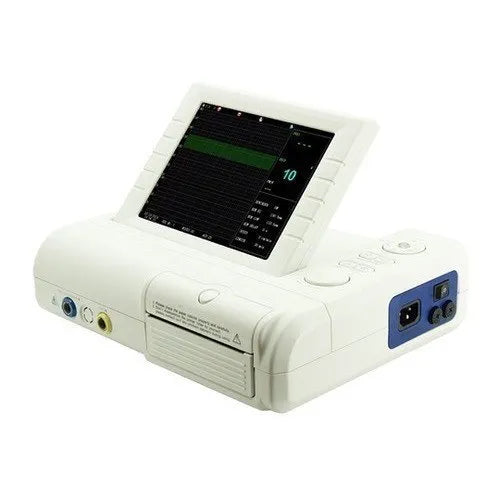

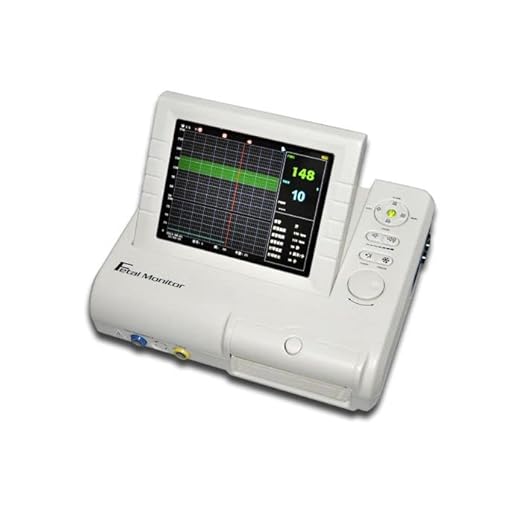

Contec 800G Fetal Monitor

Kaarya

Contec 800G Fetal Monitor

Rs. 47,890.00
Rs. 79,000.00 Rs. 47,890.00
Sold out
Tax included. Shipping calculated at checkout.
24 people are viewing this right now

Availability: Low stock: 5 left

Our Advantages

  1. 1. GST Invoice
  2. 2. Brand New Products
  3. 3. Easy Replacements
  4. 4. Authorized Distributor
  5. 5. Best Price Guaranteed
  6. 6. Multiple Payment Options
SKU: 7569

Shipping & Returns

Free shipping and returns available on all orders!

We ship all US domestic orders within 5-10 business days

View full product details

Product Description

The CONTEC CMS800G Fetal Monitor is a high-performance clinical device designed to acquire real-time data for Fetal Heart Rate (FHR), Uterine Contraction (TOCO), and Fetal Movement (FMOV) for pregnancies over 28 weeks. Engineered to deliver reliable reference data for clinical assessment, it can be utilized as a standalone workstation in obstetrical clinics or networked directly with a central monitoring system in hospitals via its built-in communication port.

Technical Specifications

Parameter Specification Details
Display 8.0" Color TFT LCD, foldable up to 60 degrees
Ultrasound Frequency 1.0 MHz (±10% working frequency)
FHR Range & Accuracy 50 BPM – 240 BPM; Accuracy: ±2 BPM (Resolution: 1 BPM)
TOCO Range & Resolution 0 – 100%; Resolution: 1% (Non-linear error ≤ ±10%)
Fetal Movement (FMOV) Manual and Automatic tracking options available
Transducer Technology 9-crystal or 12-crystal wide-beam pulsed wave transducer
Recorder Type Built-in high-resolution thermal printer (Z-fold paper)
Print Width & Speeds 112mm paper width (104mm valid width); Speeds: 1, 2, 3 cm/min
Network Interface Built-in RJ45 communication port
Storage Expansion Supports external USB flash disk and SD cards for data storage
Power Supply & Battery AC 100V – 240V, 50/60Hz; Built-in rechargeable backup battery (> 3 hours)
Dimensions & Weight 320 mm (L) × 260 mm (W) × 80 mm (H); Weight: ~3.0 kg
Safety Classification Class I equipment, Type B applied part

Key Features

  • Dual Multi-Crystal Transducers: Features a highly sensitive wide-beam pulse doppler transducer with auto-correlation processing to lock onto fetal signals smoothly.

  • Integrated Thermal Printing: Long-life, built-in thermal recorder prints real-time trend graphs, hospital information, patient numbers, and clinical markers simultaneously.

  • Data Archiving & Recall: Offers up to 12 hours of continuous patient wave and curve storage, allowing medical professionals to playback, review, and print historical sessions.

  • Visual Alert Indicators: Visually highlights the normal FHR baseline zone (120 BPM – 160 BPM) on screen and sets off immediate color-coded and audible alarms for abnormal heart rates.

  • Automatic Scoring Evaluation: Built-in capability to execute diagnostic scoring matrices like Fischer, NST (Non-Stress Test), and Krebs.

Product Highlights

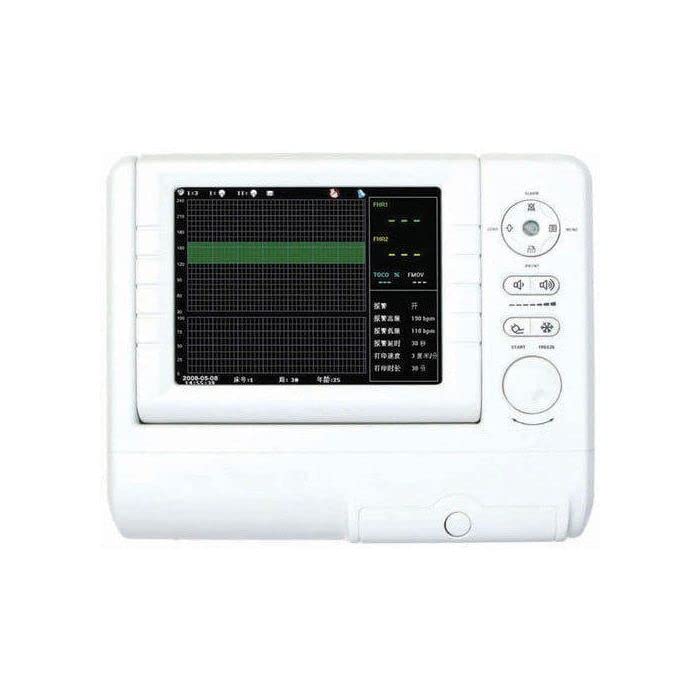

  • Flexible Display & Ergonomics: The 8-inch screen can be tilted up to 60 degrees to accommodate multiple viewing angles when sitting on desks or mounted to clinical carts.

  • Dual Monitoring Capacity: Offers optional software configuration to seamlessly execute twins monitoring simultaneously.

  • Uninterrupted Power Backup: Features a robust rechargeable internal battery, allowing the monitor to run completely uninterrupted for more than three hours during acute facility power failure.

  • Space-Saving Mounting: A sleek, lightweight form factor allows the monitor to rest horizontally or be securely wall-hoisted in tight examination rooms.

Use Cases

  • Obstetric Clinics & Hospitals: Serving as a day-to-day workhorse in antepartum triage units, labor rooms, and delivery wards.

  • Centralized Network Monitoring: Integrated into an overarching hospital network where multi-bed data feeds instantly into central monitoring dashboards via RJ45 interfaces.

  • Remote & Home-Health Monitoring: Handled by traveling professional medical personnel for bedside home-visits and remote prenatal checks for high-risk pregnancies past 28 weeks.

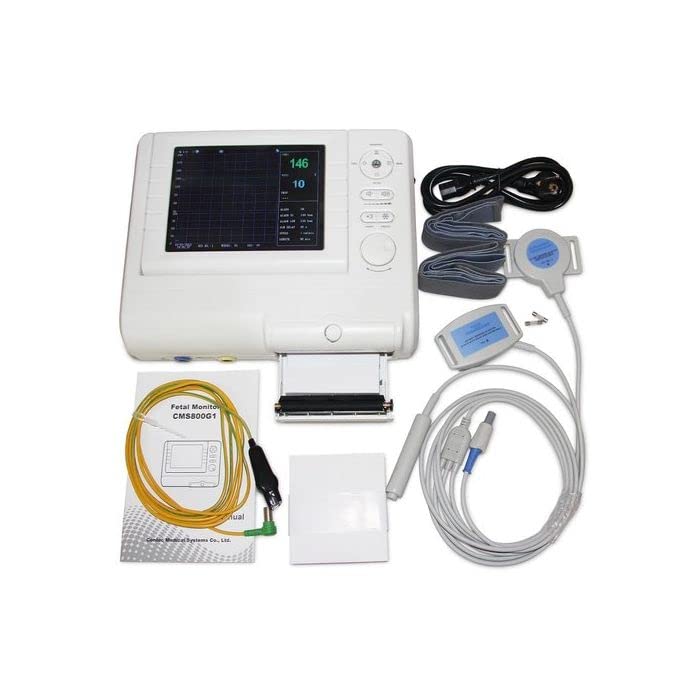

In the Box

  • 1 × CONTEC CMS800G Fetal Monitor Main Unit

  • 1 × 3-in-1 Transducer Assembly (Ultrasound Transducer I, TOCO Transducer, and Remote Event Marker)

  • 2 × Adjustable Abdomen Belts

  • 2 × Packs of Z-Fold Thermal Record Paper

  • 1 × Grounding / Earth Line Wire

  • 1 × AC Power Cord

  • 2 × Backup Fuses

  • 1 × Comprehensive User Manual
