Product Description :

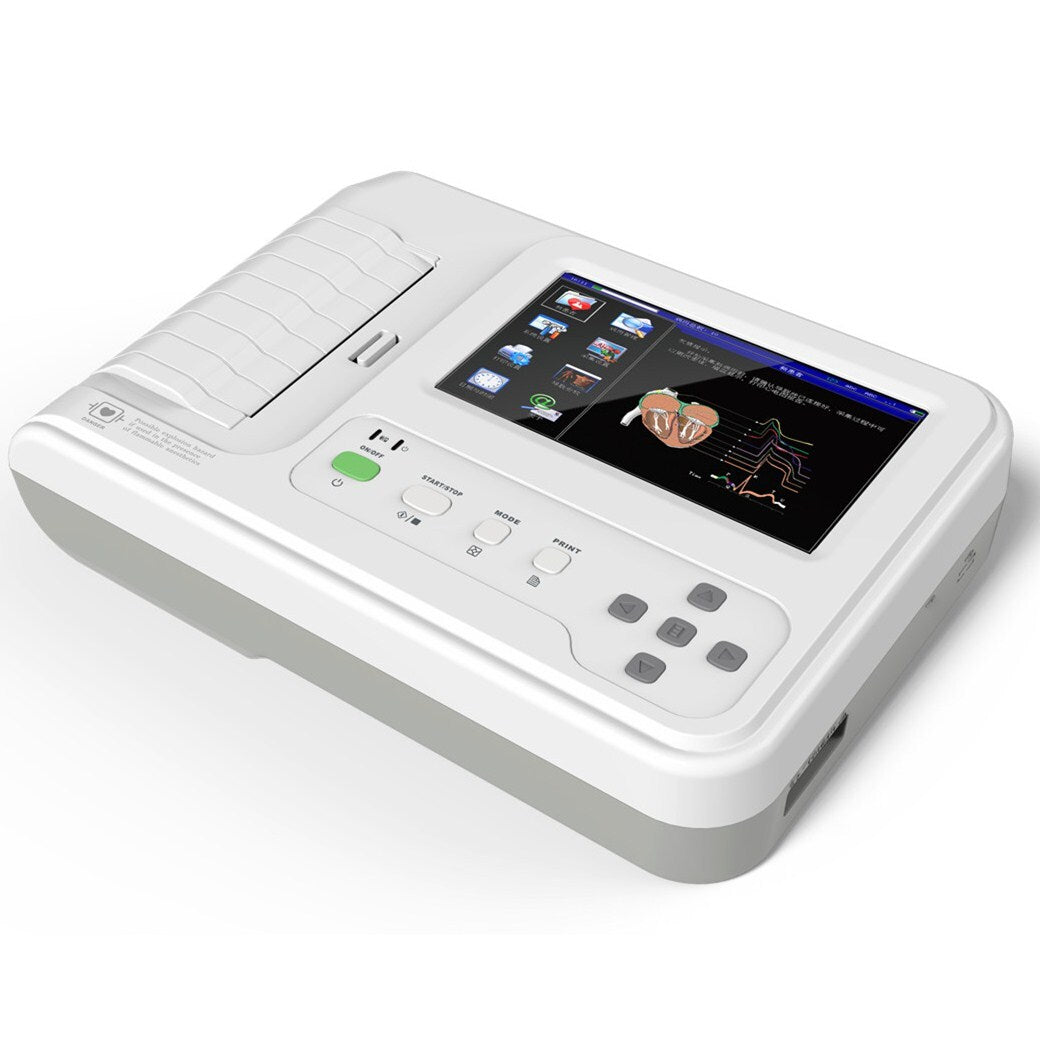

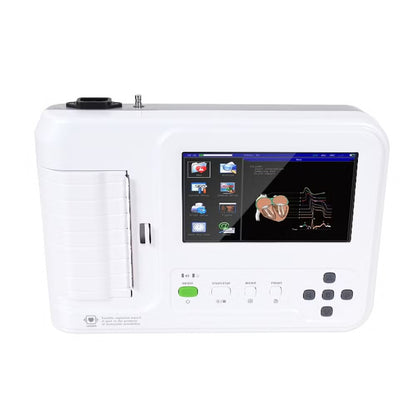

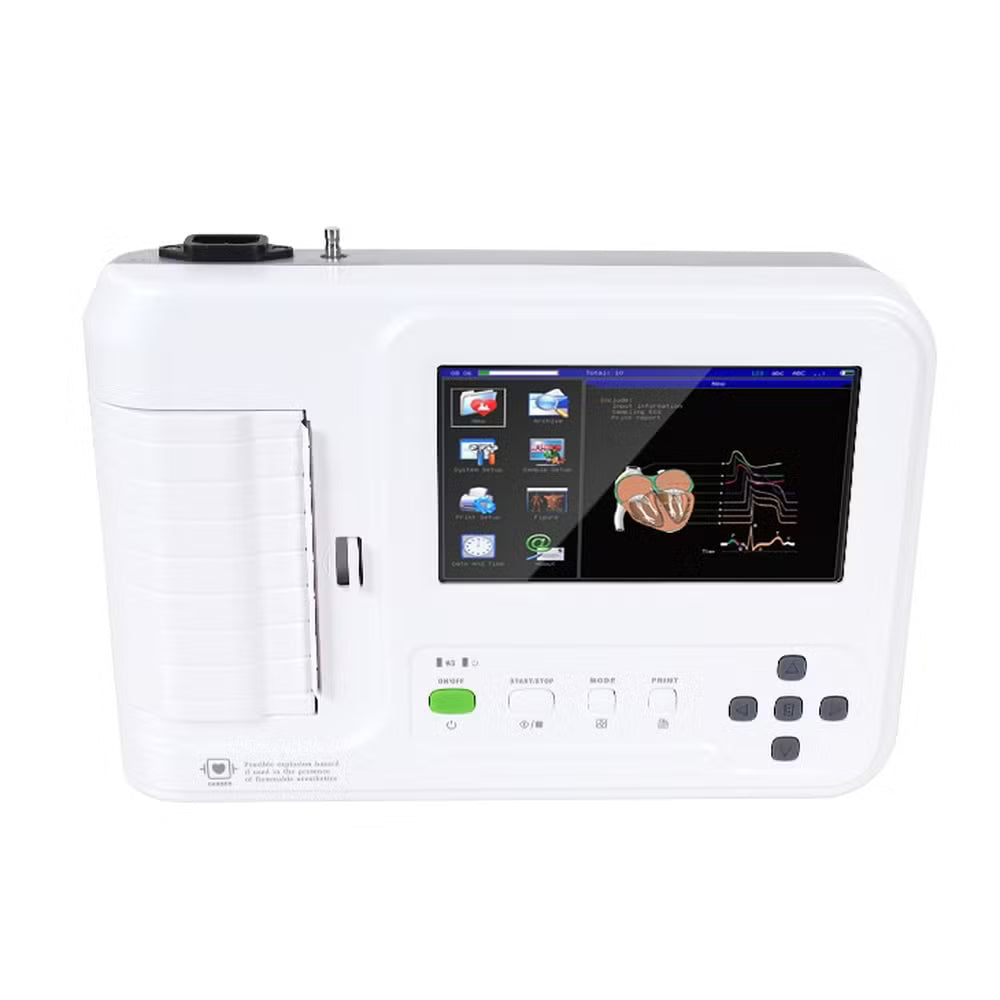

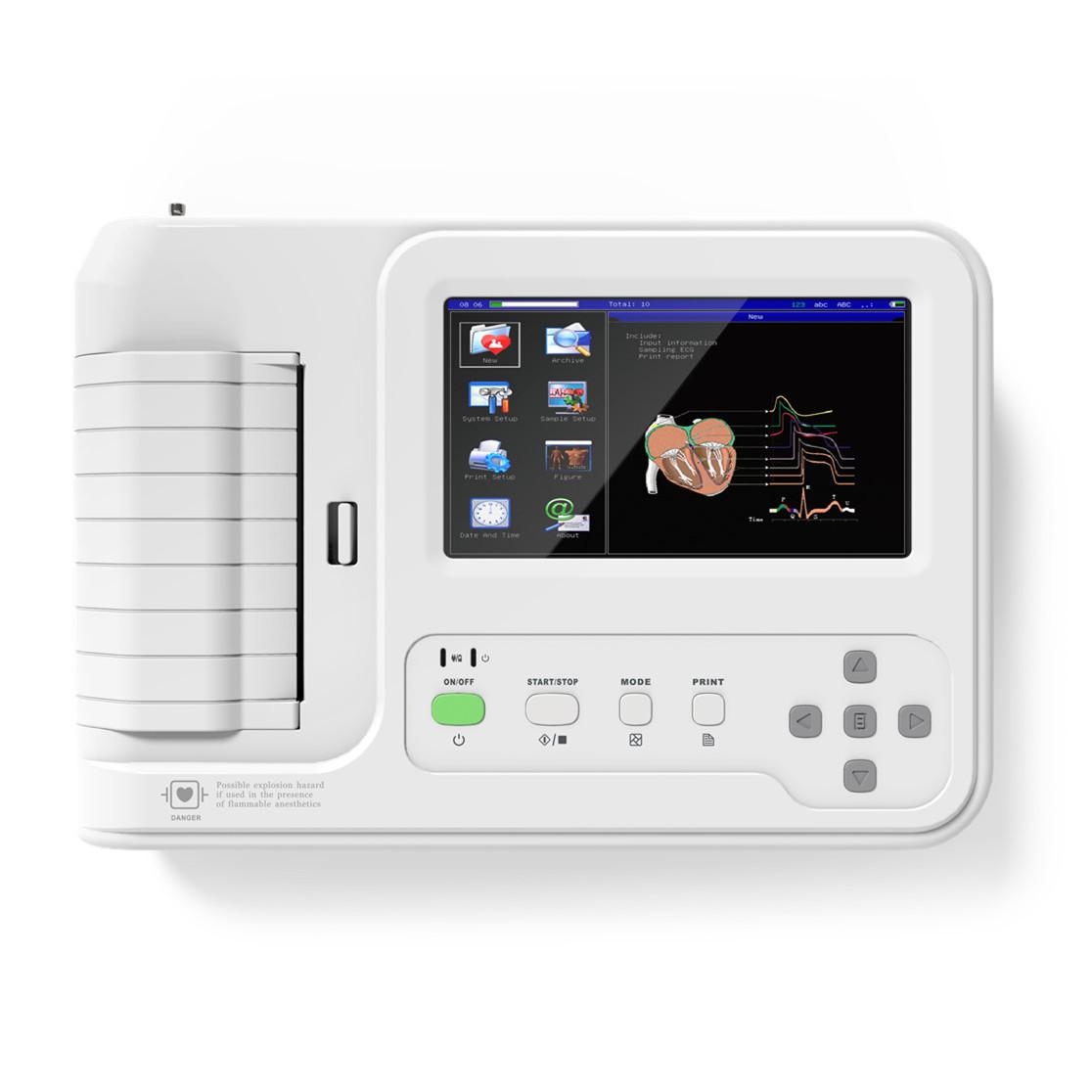

The Contec 600G is a high-resolution ECG machine featuring a 7-inch color TFT touchscreen that provides real-time visualization of all 12 leads simultaneously. It utilizes advanced digital signal processing (DSP) to deliver clean, noise-free waveforms and includes a high-speed thermal printer that supports 110mm wide paper. Designed for high-volume use, it features an extensive internal database for storing over 1,000 cases and an automated interpretation engine to assist in rapid clinical decision-making. The Contec 600G is a professional 6-channel digital electrocardiograph that bridges the gap between portability and comprehensive clinical data. It is a preferred choice for clinicians who require more detail than a basic 3-channel machine but need a more compact form factor than a full 12-channel workstation.
Technical Specifications :
| Category | Specification |
| Lead System | Standard 12 leads, simultaneous acquisition |
| Display | 7-inch Color TFT LCD Touchscreen ($800 \times 480$ resolution) |
| Input Way | Floating and defibrillation protection |
| A/D Conversion | 12-bit |
| Sampling Rate | 1,000 Hz |
| Frequency Response | 0.05 Hz to 150 Hz |
| Common Mode Rejection (CMRR) | $> 60\text{ dB}$, $> 100\text{ dB}$ (with filters active) |
| Input Impedance | $\geq 50\text{ M}\Omega$ |
| Patient Leak Current | $< 10\mu\text{A}$ |
| Recording Way | Thermal printing system (8 dots/mm) |
| Paper Size | 110 mm (W) x 20 m (L) High-speed thermal paper |
| Sensitivity Choice | 2.5, 5, 10, 20, 40 mm/mV |
| Paper Speed |
Auto/Rhythm: 25, 50 mm/s
Manual: 5, 6.25, 10, 12.5, 25, 50 mm/s |
| Storage | Internal memory for $> 1,000$ patient records |
| Safety Class | Class I, Type CF applied part (Defibrillation-proof) |
| Power Supply |
AC: 100V–240V (50/60Hz)
DC: 7.4V, 3700 mAh rechargeable lithium battery |
| Battery Life | ~90 mins continuous printing / 150 ECGs |
| Net Weight | Approximately 1.7 kg |
Features :
7-inch Color Touchscreen: A high-definition TFT display that allows clinicians to view all 12 leads simultaneously in real-time, significantly reducing the risk of printing errors.
Synchronous 12-Lead Acquisition: Captures the full cardiac profile at once using 12-bit A/D conversion, ensuring high-fidelity signal reproduction.
Automated Interpretation: Built-in "Auto-Analysis" and "Auto-Diagnosis" functions provide preliminary results for parameters like HR, P-R interval, and QRS duration, helping to speed up clinical workflows.
Versatile Printing Formats: Features a high-resolution thermal printer that supports multiple layouts (6+1, 3x4, 3x4+1, 2x6, 2x6+1, and rhythm modes) on 110mm paper.
Massive Internal Case Database: Can store more than 1,000 patient records, allowing for instant historical review, re-printing, and case editing.
Full Digital Filtering: Advanced DSP (Digital Signal Processing) effectively filters out AC interference, baseline drift, and EMG (muscle tremor) noise for crystal-clear waveforms.
Highlights :
User-Friendly Interface: Supports both touchscreen navigation and physical buttons, making it easy to use even with gloves.
Compact & Portable: Despite its large screen and 6-channel capability, it is lightweight (approx. 1.7 kg) and includes a built-in handle for easy transport between wards.
Powerful Rechargeable Battery: The high-capacity lithium battery supports up to 150 continuous ECG recordings or 90 minutes of continuous printing on a single charge.
PC Sync & Digital Archiving: Includes a USB interface for connection to a PC. Using the provided ECG-Sync software, you can export records as PDF/JPG and print full A4 reports via a standard laser printer.
Emergency-Ready: Features built-in defibrillation protection, ensuring the device remains safe and functional if a patient requires immediate shock therapy while connected.
Multi-Language Support: The system interface can be toggled between several languages, catering to diverse medical teams.
In the Box :
Main Unit: 1 x Contec 600G ECG Machine (with 7" color touchscreen).
Patient Cable: 1 x 12-Lead ECG Patient Cable (10-wire, standard 4.0mm banana plug).
Limb Electrodes: 1 Set of 4 Reusable Limb Clamp Electrodes (Color-coded).
Chest Electrodes: 1 Set of 6 Reusable Suction Bulb Chest Electrodes.
Thermal Paper: 1 x Starter Roll of 110mm Thermal Recording Paper.
Power & Battery:
1 x Medical Grade AC Power Cord.
1 x Built-in Rechargeable Lithium Polymer Battery (7.4V, 3700mAh).
Grounding Wire: 1 x Earth/Potential Equalization Cable (for electrical safety).
Connectivity:
1 x USB Data Cable.
1 x ECG-Sync Software (CD or download link for PC management).
Documentation:
1 x User Manual (English).
1 x Warranty Card & Quality Certificate.
