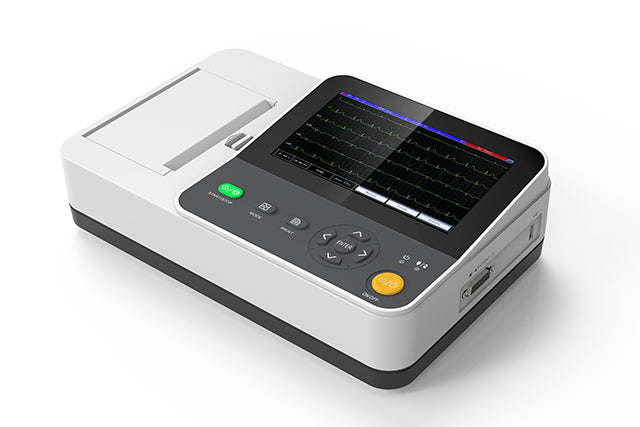

The Contec E6 is a digital ECG machine featuring a high-resolution 7-inch color TFT touchscreen, allowing for intuitive navigation and clear visualization of waveforms. It supports both automatic and manual recording modes, utilizing a thermal printing system to produce accurate, real-time ECG reports. The device is equipped with advanced digital signal processing technology, including multiple filters (AC, EMG, DFT, and low-pass) to ensure clear signals by minimizing baseline drift and interference. It also includes internal storage for over 1,000 cases and supports USB connectivity for PC software integration, making it a reliable solution for hospitals, clinics, and emergency services.
| Feature | Specification |
| Channels | 6-Channel |
| Lead Acquisition | Simultaneous 12-lead |
| Display | 7-inch color TFT touchscreen |
| Sampling Frequency | 1000 Hz |
| Frequency Response | 0.05 Hz – 150 Hz (-3dB to +0.4dB) |
| Input Impedance | ≥50 MΩ |
| CMRR | >60dB (up to >100dB with filters) |
| Recording System | Thermal printing |
| Paper Size | 80mm (width) × 20m (length) |
| Storage Capacity | 1000+ cases |
| Power Supply | AC (100V-240V) / DC (built-in rechargeable lithium battery) |
| Dimensions | 315mm (L) × 215mm (W) × 92mm (H) |
| Weight | ~1.7 kg |
Advanced Processing: Digital isolation and advanced filtering (AC, EMG, DFT) for high-quality, interference-free ECG waveforms.
Intuitive Controls: 7-inch color touchscreen combined with physical function keys for efficient operation.
Automated Diagnostics: Built-in software for automatic measurement, analysis, and interpretation of ECG parameters (HR, PR interval, QRS duration, QT/QTc, P/QRS/T axis, etc.).
Flexible Printing: Supports multiple printing formats (e.g., 1×12, 2×6, 3×4, 4×3, 6×2) and rhythm leads.
Connectivity: USB port for data export to PC software and external printer support.
Portable Design: Compact, lightweight construction with a built-in battery, ideal for bedside monitoring or medical camps.
Patient Management: Allows for the entry and storage of patient clinical information (ID, Name, Age, Sex, etc.).
Safety Standards: Class I, Type CF defibrillation-proof applied part ensures patient safety during procedures.
Real-time Monitoring: Simultaneous display of up to 12 leads on the screen, with real-time status updates (paper levels, "lead-off" detection).
Efficient Workflow: Fast-acquisition modes minimize the time required per patient, reducing doctor burden.
Hospitals & Emergency Departments: Rapid cardiac assessment for incoming patients.
Outpatient Clinics: Routine cardiac diagnostics and physical examinations.
Mobile Health: Ideal for ambulances and remote healthcare screening camps due to its portability and battery life.
Physician Offices: Convenient storage and review of patient case history.
ECG machine unit (Contec E6/ECG600G)
12-lead patient cable
Set of limb electrodes (clamps)
Set of chest electrodes (suction bulbs)
Thermal recording paper roll
Power cord/Adapter
Grounding wire
User manual
PC software (typically provided via USB or digital link)
