Contec 12-Lead ECG Holter System - TLC5000

Kaarya

Contec 12-Lead ECG Holter System - TLC5000

Rs. 0.00
Rs. 0.00
Sold out
Tax included. Shipping calculated at checkout.
27 people are viewing this right now

Availability: Low stock: 1 left

Our Advantages

  1. 1. GST Invoice
  2. 2. Brand New Products
  3. 3. Easy Replacements
  4. 4. Authorized Distributor
  5. 5. Best Price Guaranteed
  6. 6. Multiple Payment Options
SKU: 19100

Shipping & Returns

Free shipping and returns available on all orders!

We ship all US domestic orders within 5-10 business days

View full product details

Product Description:

The Contec TLC5000 is a portable, lightweight ECG recorder that adheres to international 12-lead standards. It is designed for use in hospitals and community medical institutions to capture high-fidelity cardiac waveforms. The device features an OLED screen for real-time monitoring and utilizes an internal TF card (up to 2GB) to store uncompressed data, which can then be transferred via USB 2.0 to Windows-based PC software for advanced clinical analysis, report generation, and case management.

Technical Specifications :

Feature

Specification

Number of Channels

12 channels

Recording Time

24 hours

Sampling Accuracy

12 Bit

Power Supply

2 × AA batteries

Interface

USB 2.0

Scale Voltage

1mV ± 5%

Standard Sensitivity

10mm/mV ± 5%

Noise Level

≤ 30μV

CMRR

≥ 60dB

Time Constant

≥ 3.2s

Scan Speed

25mm/s ± 5%

Least Measure Signal

50μV (p-p)

Safety Type

Type B (Internally powered)

Dimensions

111(L) × 60(W) × 25(H) mm

Weight

~105g (without batteries)



Key Features

  • Synchronous Analysis: 12-lead sync analysis ensures accurate QRS waveform detection without distortion.
  • Template Diversity: Includes over 10 templates (e.g., atrial/ventricular premature beats, atrial fibrillation, long intervals) and supports user-defined templates for identifying pathologic waveforms.
  • Pacemaker Analysis: Powerful analysis capability for various pacemaker types, including AAI, VVI, and DDD.
  • Advanced Diagnostics: Includes ST-segment analysis, heart rate variability (HRV) analysis (short and long-range), "HRT" analysis for myocardial infarction risk, and "T-Wave alternation" analysis for malignant arrhythmia prediction.
  • Sleep Analysis: Features a unique "Sleep breath pause syndrome" analysis to predict risks related to sleep apnea.



Product Highlights

  • Portable & User-Friendly: Compact design with an OLED display and built-in real-time clock.
  • Anti-Jamming: Equipped with high-precision technology to ensure stable and durable recording.
  • Efficient Workflow: Supports one-key report printing and fast data transfer (a single case can typically be reviewed in under 40 seconds).
  • Data Integrity: Uses an inbuilt TF card to store original, non-compressed data.



Use Cases

  • Cardiac Monitoring: Continuous 24-hour ambulatory ECG recording for clinical diagnosis.
  • Clinical Settings: Widely used in hospitals, cardiology centers, and community clinics for assessing arrhythmias, myocardial ischemia, and other cardiac abnormalities.
  • Research & Screening: Useful for clinical screening and research regarding heart rate variability and sleep-disordered breathing.

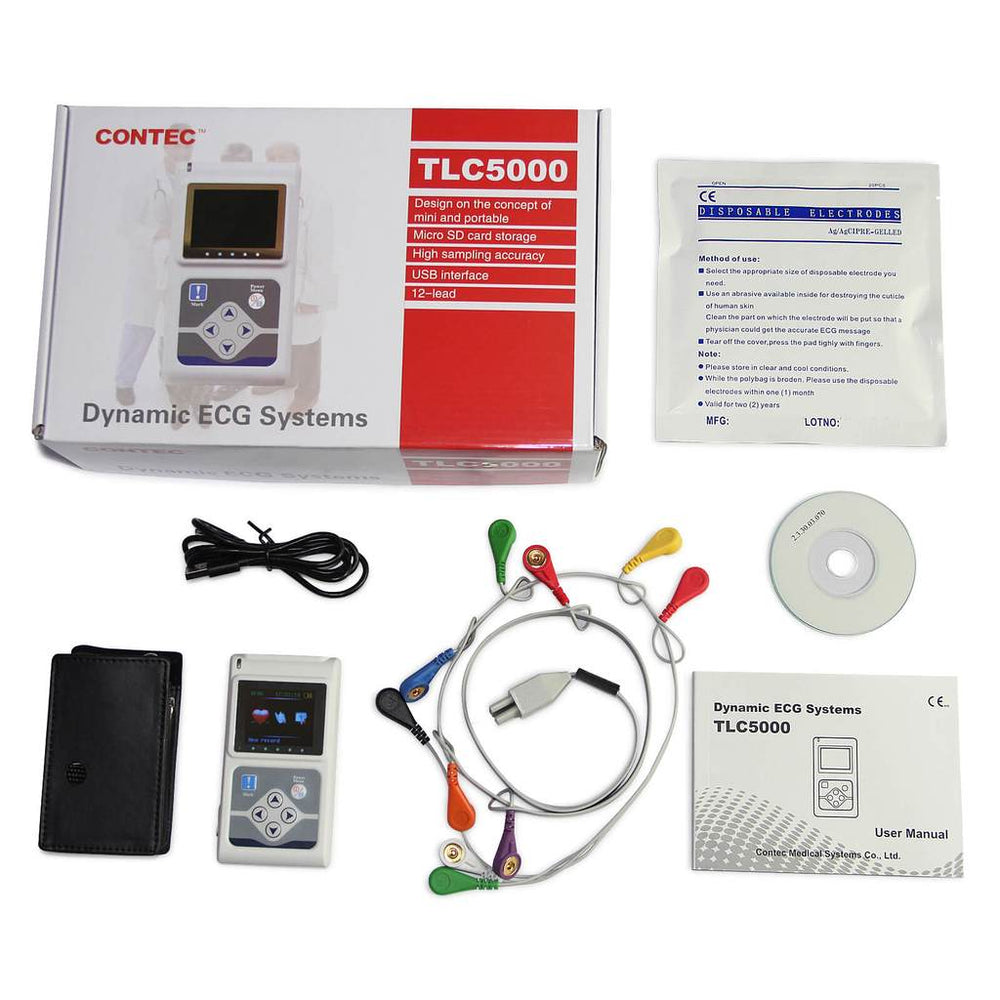

In the Box

  • 1 × TLC5000 Holter Recorder
  • 1 set × 12-lead ECG lead wires
  • 1 bag × ECG electrodes (typically 20 electrodes)
  • 1 × USB data cable
  • 1 × Software Disk (PC Analysis Software)
  • 1 × Carrying Pouch/Bag
  • 1 × User Manual
