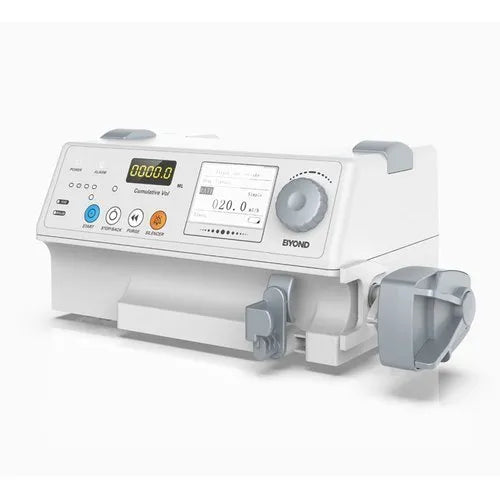

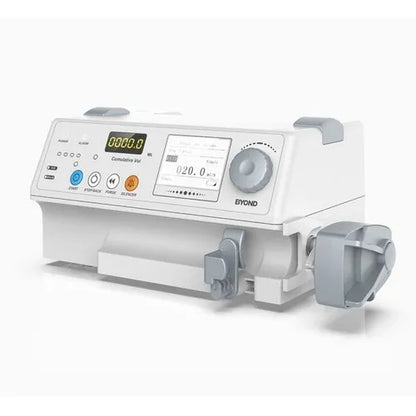

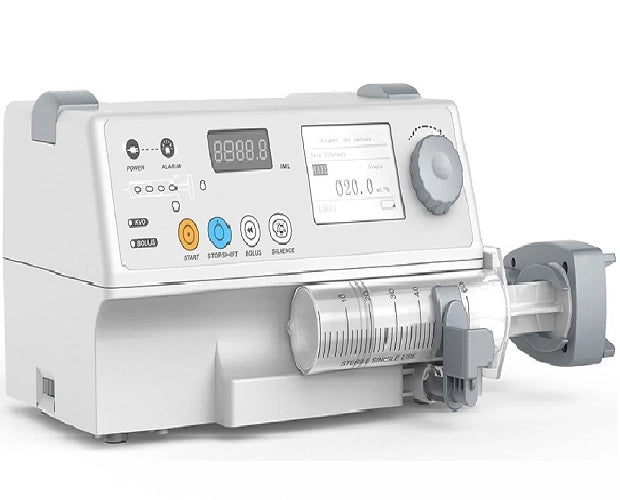

Byond Byz-810 Syringe Infusion Pump

Kaarya

Byond Byz-810 Syringe Infusion Pump

Rs. 19,300.00
Rs. 25,000.00 Rs. 19,300.00
Sold out
Tax included. Shipping calculated at checkout.
23 people are viewing this right now

Availability: Low stock: 5 left

Our Advantages

  1. 1. GST Invoice
  2. 2. Brand New Products
  3. 3. Easy Replacements
  4. 4. Authorized Distributor
  5. 5. Best Price Guaranteed
  6. 6. Multiple Payment Options
SKU: 7593

Shipping & Returns

Free shipping and returns available on all orders!

We ship all US domestic orders within 5-10 business days

View full product details

Product Description

The Byond BYZ-810 is a portable, compact, and highly precise medical device designed for controlled delivery of essential therapeutics through multiple standard routes, including intravenous (IV), intramuscular (IM), and subcutaneous lines. Equipped with an innovative dual-display system (featuring both a high-definition LCD screen and a numerical digital tube), it provides real-time tracking of parameters. It features a standout Unique Human Voice Alarm system alongside standard audio-visual cues to maximize clinical safety and simplify troubleshooting during critical healthcare workflows.

Technical Specifications

Parameter Specification Details
Product Type Single-Channel Syringe Infusion Pump
Compatible Syringe Sizes 10 mL, 20 mL, 30 mL, 50/60 mL (Supports all major brands after calibration)
Infusion Flow Rate Range

• 10 mL Syringe: 0.1 – 300.0 mL/h


• 20 mL Syringe: 0.1 – 600.0 mL/h


• 30 mL Syringe: 0.1 – 900.0 mL/h


• 50/60 mL Syringe: 0.1 – 1,500.0 mL/h (increments of 0.1 mL/h up to 999.9 mL/h)
Flow Rate Accuracy Within ±3% (Mechanical precision within ±2%)
Bolus Rate

• 10 mL: 240 mL/h


• 20 mL: 480 mL/h


• 30 mL: 720 mL/h


• 50/60 mL: 1,200 mL/h
Purge Rate

• 10 mL: 300 mL/h


• 20 mL: 600 mL/h


• 30 mL: 900 mL/h


• 50/60 mL: 1,500 mL/h
Volume Limit Range 0.1 mL – 9,999.9 mL (0.1 mL increments)
Total Accumulated Volume 0.1 mL – 9,999.9 mL
KVO (Keep-Vein-Open) Rate 1.0 mL/h to 5.0 mL/h (Adjustable)
Occlusion Pressure Levels

Three levels selectable:


• High: 800 mmHg ±200 mmHg


• Medium: 600 mmHg ±100 mmHg


• Low: 300 mmHg ±100 mmHg
Power Source AC 100V – 240V, 50/60Hz; 12V DC car charging support
Internal Battery Backup Rechargeable Lithium battery (≥1,600 mAh) offering up to 4 hours of backup
Power Consumption 30VA
Ingress Protection Level IPX4 (Splash-proof design)
Dimensions 280 mm (L) × 210 mm (W) × 130 mm (H)
Net Weight 2.2 kg

Key Features

  • Three Flexible Infusion Modes: Tailors medication administration to multiple clinical scenarios using Rate Mode, Time-Volume Mode, or Dosage-Weight Mode.

  • Intelligent Syringe Recognition: Automatically detects the size of the inserted syringe (10/20/30/50/60 mL) and adjusts safe delivery defaults.

  • Auto-Save Settings: Automatically records the configuration of the last injection so you don't lose key parameters if a quick reboot is needed.

  • Anti-Bolus & Purge Functionality: Prevents large accidental doses of medication post-occlusion while keeping the line clear.

  • Flexible Stackable Design: Individual pumps can be easily stacked on top of one another to deliver complex, multi-drug therapies side-by-side on a single IV pole.

Product Highlights

  • Voice-Guided Safety: The integrated voice prompt acts as a vocal assistant, verbally calling out the specific error (e.g., "Occlusion", "Battery Low") and stopping operation instantly if a serious fault occurs.

  • High Brand Compatibility: Open system architecture allows it to work safely with any manufacturer's syringe line following a simple configuration calibration.

  • Engineered for Low Noise: Utilizes high-end German motor driver ICs and internal components to minimize operational vibrations and noise, creating a quieter healing environment for the patient.

Use Cases

  • Intensive Care Units (ICU / CCU / HDU): Crucial for delivering high-potency, life-support medications like vasopressors or antiarrhythmics where even slight dosage deviations carry massive risks.

  • Neonatal & Pediatric Care (NICU / PICU): Perfect for small volume, highly precise fluid or medication delivery matching strict pediatric weight-based constraints.

  • Operation Theatres (OT) & Anesthesia: Supports the precise administration of anesthetics and analgesics during continuous intraoperative care.

  • Emergency Transport & Ambulances: Compact, lightweight layout backed by an integrated battery and 12V DC capability makes it highly suited for en-route emergency treatment.

In the Box

  • 1 × Byond BYZ-810 Syringe Infusion Pump Unit

  • 1 × AC Power Cord (Three-pin plug)

  • 1 × Pole Mounting Clamp / Screw Assembly (Attached or included for IV stand securing)

  • 1 × Comprehensive User Manual / Operating Instructions Booklet

  • 1 × Manufacturer Warranty Card
