Byond BYS820D Volumetric Infusion Pump

Kaarya

Byond BYS820D Volumetric Infusion Pump

Rs. 21,000.00
Rs. 36,000.00 Rs. 21,000.00
Sold out
Tax included. Shipping calculated at checkout.
28 people are viewing this right now

Availability: Low stock: 5 left

Our Advantages

  1. 1. GST Invoice
  2. 2. Brand New Products
  3. 3. Easy Replacements
  4. 4. Authorized Distributor
  5. 5. Best Price Guaranteed
  6. 6. Multiple Payment Options
SKU: 7597

Shipping & Returns

Free shipping and returns available on all orders!

We ship all US domestic orders within 5-10 business days

View full product details

Product Description

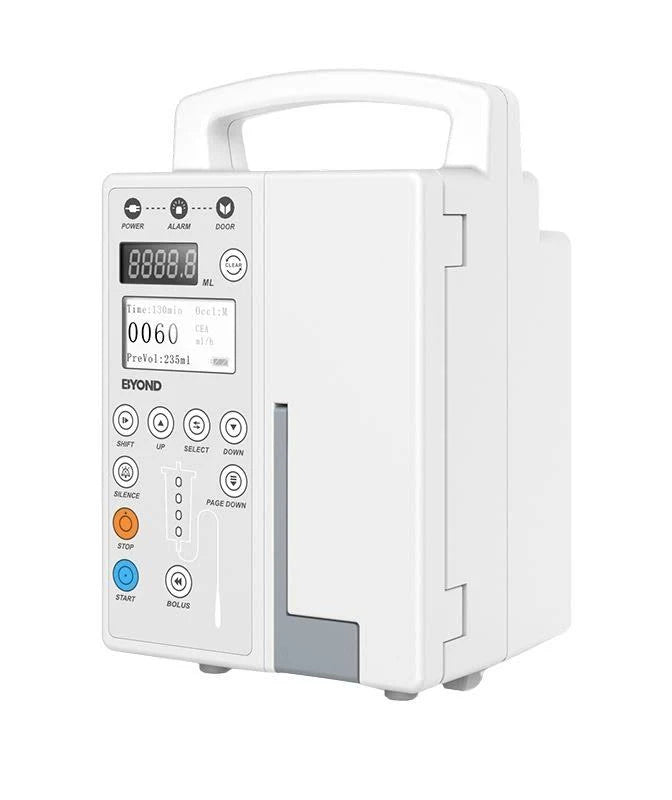

The Byond BYS-820D is a smart, volumetric infusion pump engineered for accurate and safe administration of continuous medications, parenteral fluids, and nutrients. Designed as a portable, microcomputer-controlled system, it features a dual CPU architecture to ensure real-time safety monitoring. The BYS-820D is specifically enhanced with built-in memory capabilities, accommodating an integrated drug library and an exhaustive history log. This makes it an ideal fit for medical settings requiring meticulous flow rate oversight over extended periods.

Technical Specifications

Parameter Specification
Infusion Modes ml/h mode, d/min (drops/minute) mode, and Vol/T mode (auto-calculation)
Infusion Rate Range

ml/h mode: 1 to 1200 ml/h (1 ml/h steps)


d/min mode: 1 to 266 d/min (1 d/min steps)
Flow Rate Accuracy

ml/h mode: Within $\pm$5% (after calibration)


d/min mode: Within $\pm$3% (after calibration)
VTBI (Volume to be Injected) 1 to 9999 ml
Cumulative Volume Display 0 to 9999.9 ml
KVO (Keep-Vein-Open) Rate 1.0 to 5.0 ml/h (1 ml/h steps)
Purge / Bolus Rate 100 to 1200 ml/h (100 ml/h steps)
Occlusion Pressure Levels 3 Levels: High, Medium, Low
Air Bubble Detector Ultrasonic wave detector (Sensitivity: $\le$25 $\mu$l)
Medicine / Drug Library Up to 1000 drugs stored
History Records Up to 2000 events (infusion start/finish times, rates, alarms, and volumes)
Power Supply

1. AC 100–240V, 50/60Hz


2. Internal rechargeable Lithium battery (11.1V, $\ge$1800mAh)


3. External DC 12V supply
Battery Backup $\ge$4 hours at a continuous delivery rate of 25 ml/h
Waterproof Rating IPX2
Dimensions 140 mm (L) $\times$ 128 mm (W) $\times$ 228 mm (H) (Note: alternate base casing measures 153x162x227mm)
Net Weight 1.8 kg

Key Features

  • Dual CPU Architecture: Operations and safety monitoring are handled by independent microprocessors to guarantee reliable, fail-safe operation.

  • One-Key Conversion: Fast, seamless toggle between ml/h and d/min configurations with a single button press.

  • Anti-Bolus Function: Automatically releases built-up tube pressure upon detecting an occlusion, preventing accidental post-blockage over-infusion.

  • Patented Voice Alarm System: Combines a human voice broadcast with clear display layout wording and visual flashing lights.

  • Universal IV Set Calibration: Compatible with any standard brand of gravity-feed IV sets once calibrated into the device interface.

  • Automatic Session Saving: Remembers and auto-loads the settings of the last completed infusion when powered back on.

Product Highlights

  • Precision Control Componentry: Built with a motor imported from Japan and a motor driver IC imported from Germany, yielding significantly lower operating noise and minimal mechanical vibration.

  • Double Screen Design: Incorporates a dual HD LCD and LED display interface, allowing nurses to review the equipment status from a distance or during low-light night shifts.

  • Power Tri-Option: Supports standard AC mains, internal battery reserve for emergency transport, or an external 12V direct current vehicle power line.

  • Pre-Set Management: Empowers clinicians to pre-program fluid limits, dramatically decreasing the direct monitoring workload on busy floor nurses.

Use Cases

The BYS-820D is ideal for long-term, strictly regulated infusion supervision across multiple clinical specialties:

  • Critical Care Environments: Intensely utilized within Intensive Care Units (ICU), Cardiac Care Units (CCU), and Operating Rooms.

  • General Wards: Applied widely in internal medicine, surgical wards, and obstetrics/gynecology clinics.

  • Pediatric Care: Beneficial for pediatric wards where precise micro-dosing of parenteral liquids is vital.

  • Contraindication Note: Per the manufacturer's official guidelines, this device is not suitable for direct blood transfusions.

In the Box

Standard packaging contents generally include:

  1. Byond Volumetric Infusion Pump (BYS-820D Main Unit)

  2. AC Power Cord

  3. Drop Sensor (Standard or Optional depending on localized regional listing)

  4. Comprehensive Operating Manual

  5. Warranty Certificate
