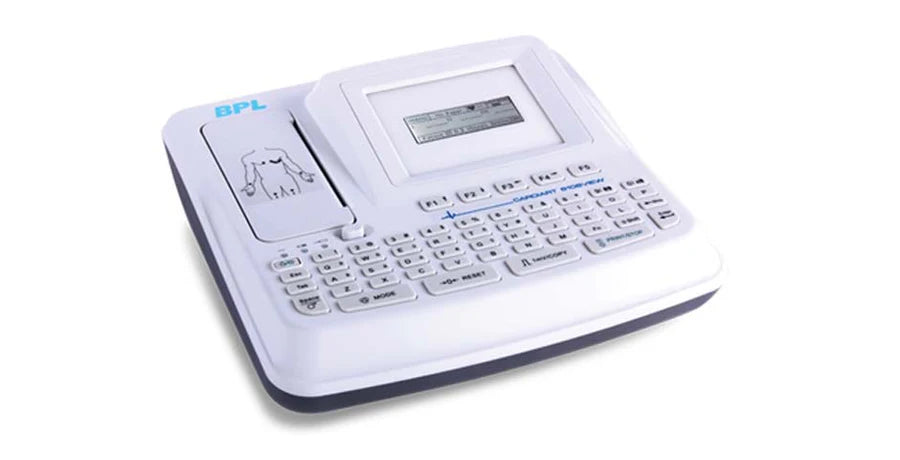

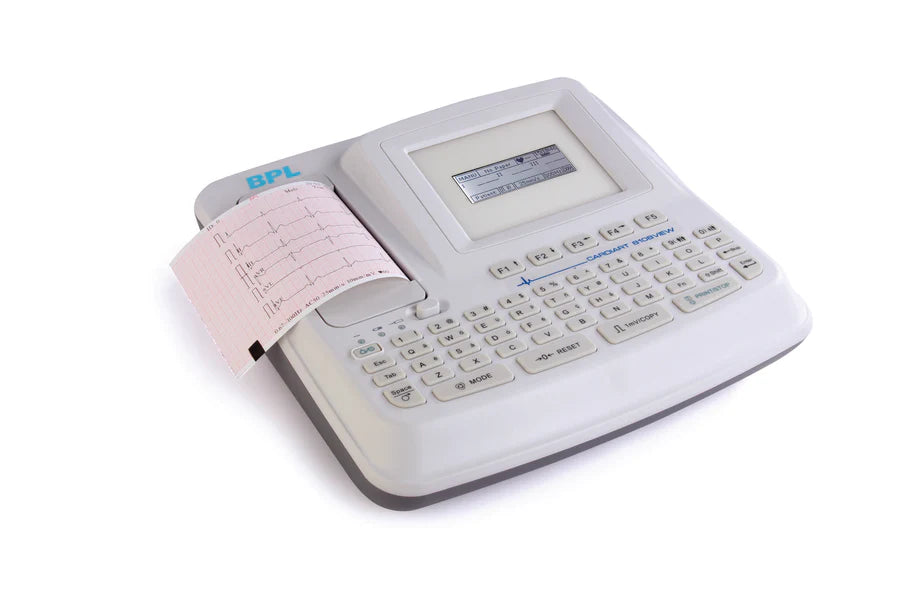

The Cardiart 8108 View enables simultaneous 12-lead ECG acquisition and 6-channel recording. It features an intuitive 5.7-inch color LCD screen and a user-friendly alphanumeric keyboard, making it suitable for high-pressure medical environments. The device includes built-in ECG parameter measurement and interpretation software to assist clinicians with rapid cardiac analysis.
| Specification | Details |
| Channels | 6-Channel |
| Lead Acquisition | Simultaneous 12-lead |
| Display | 5.7-inch Color LCD |
| A/D Converter | 24-bit |
| Sampling Rate | 1000 Hz per channel |
| Frequency Response | 0.05 Hz – 150 Hz |
| Internal Storage | Up to 800 ECG records |
| Battery | Built-in rechargeable Li-ion (2200 mAh) |
| Connectivity | USB, FTP, optional PC interface, barcode scanner support |
| Dimensions | 322 mm x 310 mm x 101 mm |
| Weight | Approx. 2.6 kg (excluding battery/paper) |
Simultaneous Acquisition: Captures 12 leads simultaneously for comprehensive heart monitoring.
Advanced Interpretation: Integrated software provides automatic ECG measurements and interpretive statements for adult and pediatric patients.
High-Resolution Display: A 5.7-inch color screen allows for real-time waveform viewing and patient information management.
Flexible Printing: Features a built-in thermal printer with multiple print modes (Manual, Auto, Rhythm, and Arrhythmia-triggered).
Data Archiving: Supports storage expansion via USB drive, flash disk, or SD card, alongside optional PC connectivity for data management.
Portability: Lightweight and compact design makes it highly mobile for use in various hospital departments.
Ease of Use: "One-Touch" operation combined with an alphanumeric keyboard simplifies clinical workflows.
Safety: Includes built-in defibrillation protection and supports both AC and battery-powered operation.
Compatibility: Export formats include PDF; optional support for SCP/FDA-XML/DICOM formats.
Clinical Settings: Ideal for hospitals, ICUs, emergency rooms, and outpatient clinics.
Cardiac Diagnostics: Routine resting ECGs for adults and pediatric patients.
Pre- and Post-Surgical Assessment: Used for fast, accurate cardiac monitoring before and after procedures.
Data Management: Suitable for facilities requiring digital archiving and PC-based transmission of cardiac data.
1 x ECG Cable
1 x Set of Bulb Electrodes (Adult)
1 x Set of Clamp Electrodes (Adult)
1 x Gel Bottle
1 x ECG Paper (Z-fold)
1 x Rechargeable Battery (Built-in)
1 x Power Cable
1 x User Manual/Guide
