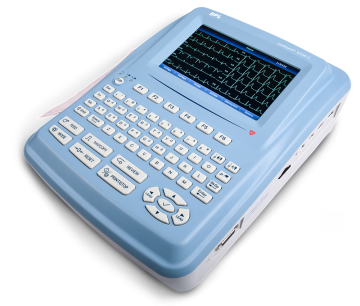

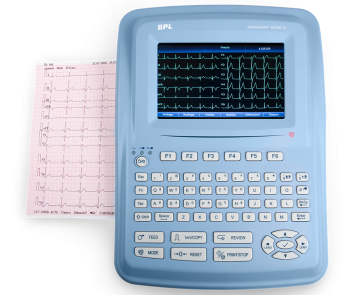

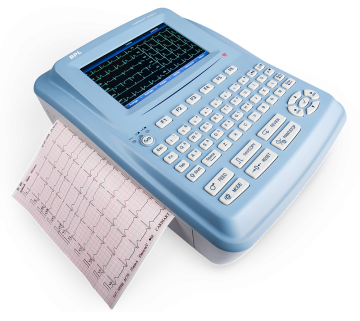

The BPL Cardiart 9108D is a compact, high-performance 12-channel ECG recorder engineered to deliver fast, accurate, and seamless ECG workflows. Designed specifically for busy hospital environments, clinics, and diagnostic labs, it combines advanced signal processing with digital connectivity. It features a large 7-inch high-resolution color screen (with touch functionality options) and utilizes the world-renowned Glasgow ECG Interpretation Algorithm to provide precise automated analysis, helping clinicians maximize diagnostic confidence and minimize human error.
| Parameter | Specification Details |
| Leads / Acquisition | 12 Standard Leads, Simultaneous 12-lead acquisition |
| A/D Converter | 24-Bit high resolution |
| Sampling Frequency | 16,000 Hz |
| Frequency Response / Bandwidth | 0.01 Hz – 300 Hz |
| Common Mode Rejection Ratio (CMRR) | ≥ 140dB (AC Filter On) / ≥ 123dB (AC Filter Off) |
| Input Impedance | ≥ 100 MΩ (10Hz) |
| Filters | AC Filter (50Hz/60Hz/Off); DFT Filter (0.01Hz to 0.67Hz); EMG Filter (25Hz/35Hz/45Hz/Off); Lowpass Filter (75Hz to 300Hz) |
| Display | 7-inch, 800x480 TFT Color LCD Screen (Optional Touchscreen) |
| User Interface | QWERTY Alphanumeric Keyboard |
| Internal Memory Storage | Up to 800 ECG records |
| Recording Printer | Built-in high-resolution thermal dot-matrix printer |
| ECG Paper Formats | Z-Fold Thermal Paper: 210 mm x 140 mm x 144 pages (Optional sizes supported) |
| Paper Recording Speed | 5, 6.25, 10, 12.5, 25, 50 mm/s (±3%) |
| Pacemaker Detection | Available |
| Power Supply | AC Mains (100V-240V AC, 50Hz/60Hz) |
| Battery Specifications | Rechargeable Lithium-Ion (14.8V, 2500mAh); up to 4 hours backup or 300 continuous ECG prints |
| Data Export File Formats | Standard PDF; Optional SCP, XML, and DICOM formats |
| Connectivity & Interfaces | FTP, USB, Ethernet (LAN), barcode scanner, external USB printer support; Optional Wi-Fi |
| Dimensions (Main Unit) | 361 mm x 262 mm x 135 mm |
| Weight | Approx. 4.2 kg (Excluding battery and paper) |
Simultaneous 12-Lead Acquisition: Captures data across all 12 channels synchronously, preserving accuracy and eliminating lead-switching intervals.
Glasgow Interpretation Algorithm: Incorporates age, gender, and race-specific metrics to generate highly advanced automated resting ECG interpretation and measurements.
Vibrant User Display: Equipped with a 7-inch high-resolution color layout enabling clear, real-time visual assessment of patient demographics and waveforms prior to printing.
Flexible Printing & Recording: Features multiple operating modes (Auto, Manual, and Rhythm) backed by a built-in heavy-duty thermal array printer.
Extensive Internal & External Storage: Stores up to 800 records locally, with external support via USB flash drives or SD cards providing virtually unlimited archiving capacity.
High-Fidelity Signal Integrity: Built with a 24-bit A/D converter and low noise paths (≤ 12.5 μVp-p) to eliminate artifacts and baseline drift, yielding clean traces.
Hospital Ecosystem Integration: Supports optional PC interface software (Smart-View) allowing seamless linkage to EMR, PACS, and HIS platforms via HL7 network protocols.
Uncompromised Mobility: Lightweight footprint (4.2 kg) paired with a high-capacity rechargeable Li-ion battery enables standalone mobile operation across multiple hospital wards.
Hospital Emergency & Intensive Wards: Ideal for fast-turnaround cardiac evaluations where immediate, automated interpretation is required under time-sensitive conditions.
Cardiology Clinics & Diagnostic Labs: Highly efficient for executing routine adult or pediatric screening blocks without bottlenecking client volume.
Outreach & Health Camps: Fully functional as an off-grid diagnostic unit utilizing battery power in environments with unreliable electricity.
The standard commercial packaging of the Cardiart 9108D typically includes:
BPL Cardiart 9108D Main ECG Unit – 1 No.
Patient ECG Cable (10-Lead Variant) – 1 No.
Chest Bulb Electrodes – 1 Set (6 Nos.)
Limb Clamp Electrodes – 1 Set (4 Nos.)
Medical Ultrasound/ECG Gel Bottle – 1 No.
AC Power Cable & Adapter – 1 No.
Earthing (Grounding) Cable – 1 No.
Thermal Z-Fold Paper Pack – 1 No.
User Manual / Documentation Guide – 1 No.
