Availability: Low stock: 5 left
Couldn't load pickup availability
Free shipping and returns available on all orders!
We ship all US domestic orders within 5-10 business days

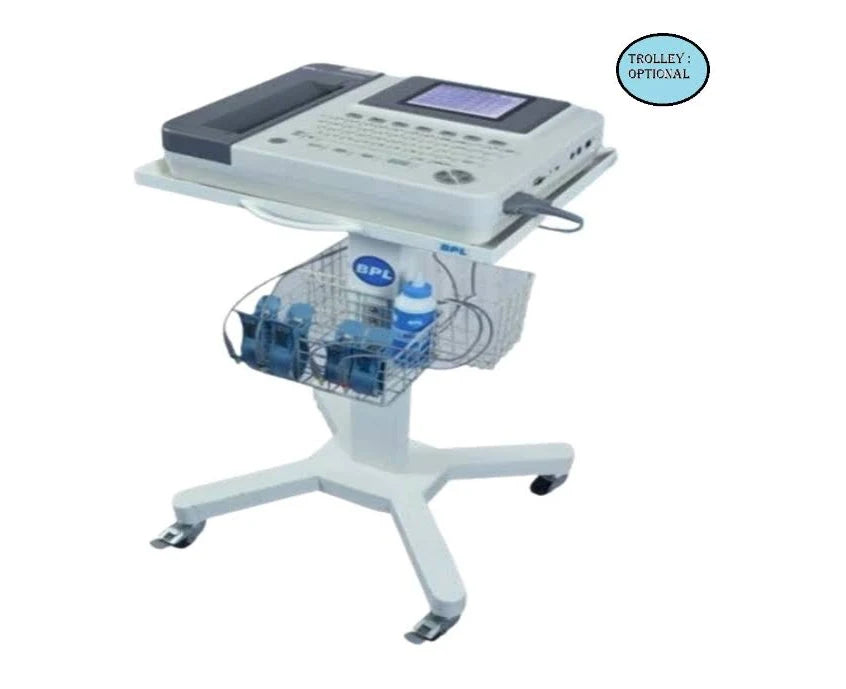

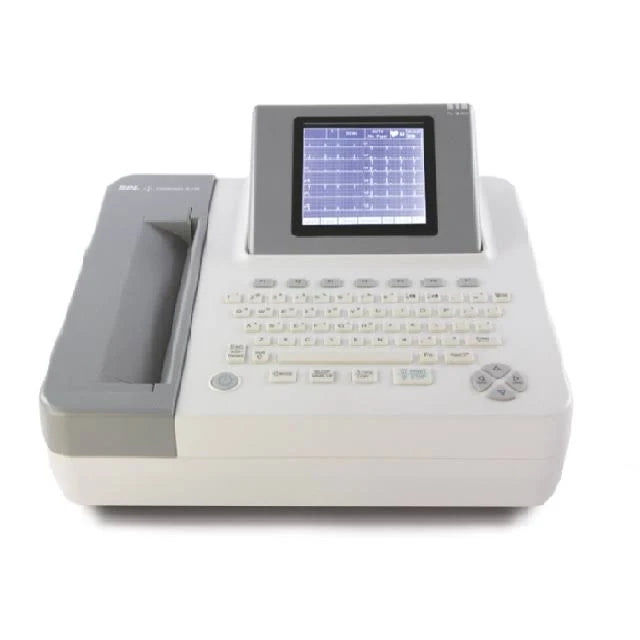

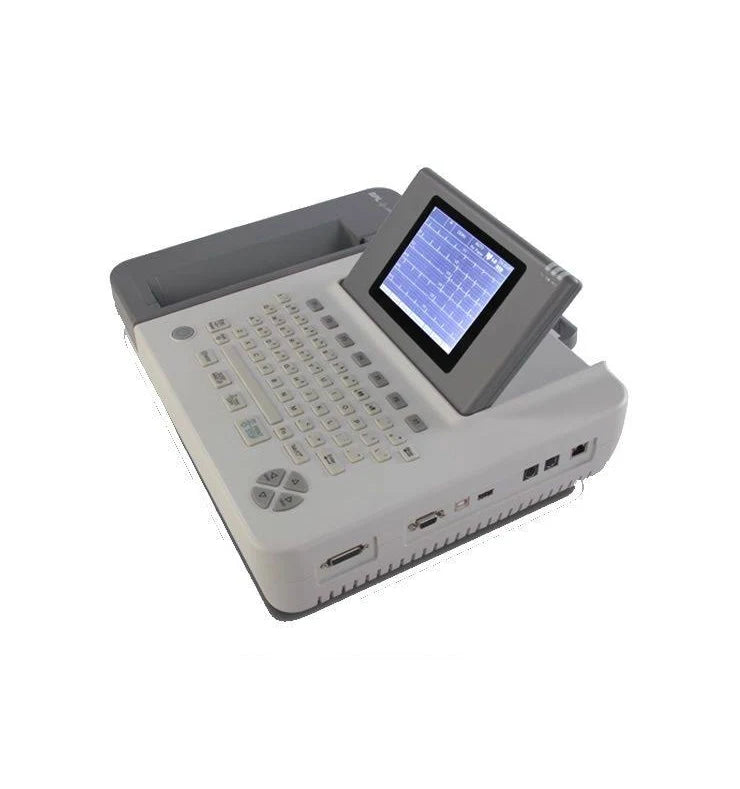

The Cardiart 9108 is an advanced electrocardiograph system capable of simultaneous 12-lead acquisition. It is engineered for efficiency in clinical workflows, providing automatic ECG parameter measurement and interpretation. Its portable and compact design, combined with a built-in rechargeable lithium-ion battery, makes it suitable for diverse healthcare environments, including hospitals, cardiology departments, intensive care units, and physician clinics.
| Feature | Details |
| Channels | 12 (Simultaneous 12-lead acquisition) |
| Display | 5.7-inch foldable high-resolution LCD |
| A/D Converter | 24-bit |
| Sampling Frequency | 16,000 Hz |
| Bandwidth | 0.01 Hz – 300 Hz |
| Internal Storage | Up to 800 ECG records (expandable via USB) |
| Connectivity | Ethernet, RS232, USB, optional Wi-Fi |
| Report Formats | PDF; optional SCP, FDA-XML, DICOM |
| Battery | Rechargeable Li-ion (14.8V, 2500 mAh) |
| Dimensions | 420 mm × 330 mm × 105 mm |
| Weight | Approx. 5 kg |
Intelligent Analysis: Automatic ECG measurement and interpretation software.
Display: Foldable 5.7-inch LCD screen for easy viewing of real-time waveforms and patient data.
High Performance: 24-bit A/D converter with a 16,000 Hz sampling frequency for superior signal quality.
Connectivity: Supports barcode scanners, external USB printers, and integration with EMR/PACS/GDT-based systems via HL7 protocol.
Interface: User-friendly QWERTY keyboard for easy operation and data entry.
Power: Built-in rechargeable Li-ion battery supports extended operation for portable use.
Versatile Reporting: Capable of printing A4-size ECG reports using the built-in thermal printer.
Data Management: Extensive internal storage of up to 800 ECGs, with further expansion possible using USB storage.
Advanced Filtering: Sophisticated digital filters (AC, EMG, and Lowpass) minimize interference and artifacts.
Clinical Flexibility: Supports multiple recording modes including Auto, Manual, and Rhythm modes.
Hospitals & ICUs: Ideal for routine diagnostic cardiac assessments and monitoring.
Cardiology Departments: Suitable for advanced diagnostic workflows and research.
Physician Clinics & Diagnostic Centers: Reliable for high-volume outpatient cardiac evaluations.
Healthcare Camps: The portable, battery-operated design allows for effective cardiac screening in mobile settings.
1x Patient ECG cable
6x Chest electrodes
4x Limb electrodes
1x Power cord
1x Cardi-Jelly bottle
1x Paper roll (Z-fold)
1x User manual
