BMC Y30T Bipap Machine

Kaarya

BMC Y30T Bipap Machine

Rs. 30,100.00
Rs. 55,000.00 Rs. 30,100.00
Sold out
Tax included. Shipping calculated at checkout.
17 people are viewing this right now

Availability: Low stock: 5 left

Our Advantages

  1. 1. GST Invoice
  2. 2. Brand New Products
  3. 3. Easy Replacements
  4. 4. Authorized Distributor
  5. 5. Best Price Guaranteed
  6. 6. Multiple Payment Options
SKU: 7625

Shipping & Returns

Free shipping and returns available on all orders!

We ship all US domestic orders within 5-10 business days

View full product details

Product Description

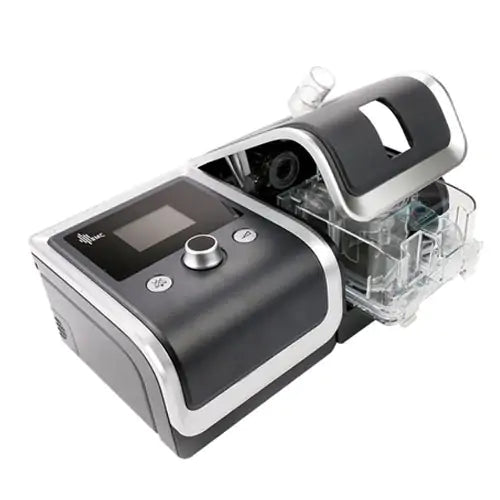

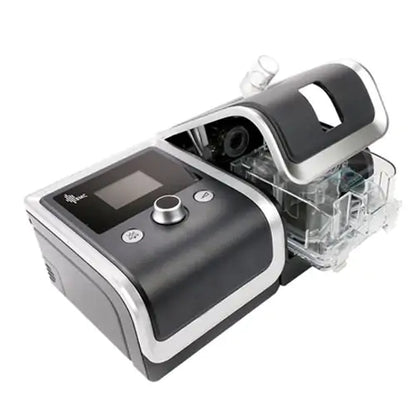

The BMC RESmart GII Y30T BiPAP Machine is an advanced, non-invasive bilevel positive airway pressure (BiPAP) ventilator designed to provide targeted respiratory support for individuals experiencing acute or chronic breathing difficulties. Engineered for both home care and clinical environments (such as sleep labs and hospitals), it delivers two distinct, synchronized levels of pressure—higher during inhalation (IPAP) and lower during exhalation (EPAP)—to make breathing more natural, reduce the overall work of breathing, and improve overall sleep quality.

Technical Specifications

Parameter Details
Operating Modes CPAP, S, S/T, T
Pressure Range

IPAP: 4 to 30 cmH₂O


EPAP: 4 to 30 cmH₂O
Breath Rate Range (Backup RR) 4 to 40 BPM (Beats Per Minute)
Inspiratory / Expiratory Time 0.3 to 3.0 seconds
Ramp Time 0 to 60 minutes (gradual pressure build-up)
Rise Time 1 to 4 (or up to 6) adjustable levels
Trigger Sensitivity 8-step inhalation-exhalation triggers
Humidifier Settings 1 to 5 steps adjustable (Detachable Heated Humidifier)
Water Chamber Capacity Approx. 350 mL
Noise Level Less than 30 dB(A) (Quiet operation)
Data Management & Logging SD Card / iCode QR system (Up to 365 days of data storage)
Display 3.5-inch Color LCD screen
Dimensions (W x H x D) ~ 22.4 cm x 11.8 cm x 19.3 cm (varies slightly with humidifier attached)
Weight ~ 1.5 kg (Main unit); ~ 2.5 kg (with Humidifier attached)
Power Supply AC 100–240 V, 50/60 Hz



Key Features

  • Multiple Therapy Modes: Supports CPAP, Spontaneous (S), Spontaneous/Timed (S/T), and Timed (T) modes to customize non-invasive ventilation depending on medical requirements.

  • 8-Step I/E Triggers: Highly responsive 8-step inhalation and exhalation sensitivity adjustment ensure the device synchronizes seamlessly with your natural respiratory rhythm.

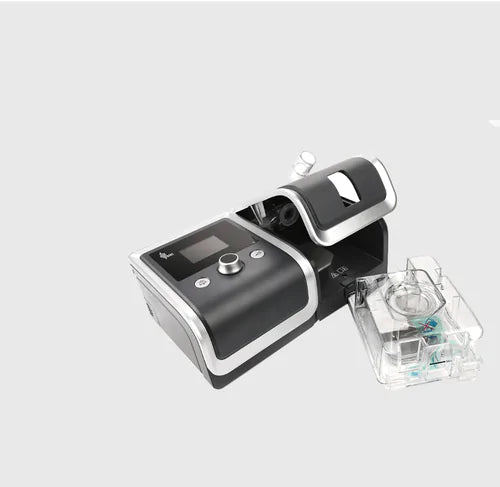

  • Eco-Smart Heated Humidifier: Features an integrated, detachable humidification chamber with a 5-step custom adjustment to deliver warm, moist air and actively reduce mucosal dryness or nasal irritation.

  • On-Screen Live Monitoring: The vibrant 3.5" color LCD displays vital real-time treatment data including Tidal Volume (Vt), Respiratory Rate (RR), Minute Ventilation (Min Vent), and Airway Leakage.

  • Comprehensive Alarm Systems: Outfitted with structural auditory and visual safety alerts covering mask-off detection, high/low pressure limits, power failure, and general system malfunctions.

Product Highlights

  • Advanced Synchronization: The internal sensors respond exceptionally fast to the patient's biological breathing cues, mitigating user-machine fighting.

  • Reslex™ Exhalation Relief: Reduces the expiratory pressure at the beginning of exhalation, maximizing user comfort during the breathing cycle.

  • Seamless Compliance Reporting: Utilizing the integrated iCode system, compliance data can be scanned directly off the display via a smartphone QR code reader for quick sharing with care providers.

  • Whisper-Quiet Performance: Operating at less than 30 dB, the unit ensures minimal disturbance to the user and bed partner.

Use Cases

  • Chronic Obstructive Pulmonary Disease (COPD): For managing hypercapnic respiratory failure and relieving overworked lung muscles.

  • Obstructive Sleep Apnea (OSA) & Complex Apnea: Ideal for patients requiring higher, advanced pressure adjustments that standard CPAP machines cannot comfortably deliver.

  • Respiratory Insufficiency / Chronic Hypoventilation: Provides non-invasive ventilation (NIV) support for domestic ambulatory care or clinical step-down units.

In the Box

Standard packaging for the BMC Y30T layout generally includes:

  1. BMC RESmart GII BPAP Y30T Main Device

  2. Detachable Eco-Smart Heated Humidifier Unit

  3. Standard Patient Breathing Tubing (Hose)

  4. Medical-Grade BiPAP Mask (Nasal or Full Face based on sizing selected)

  5. Power Adapter and AC Cable Cord

  6. SD Memory Card (pre-inserted for data tracking)

  7. Spare Air Filter

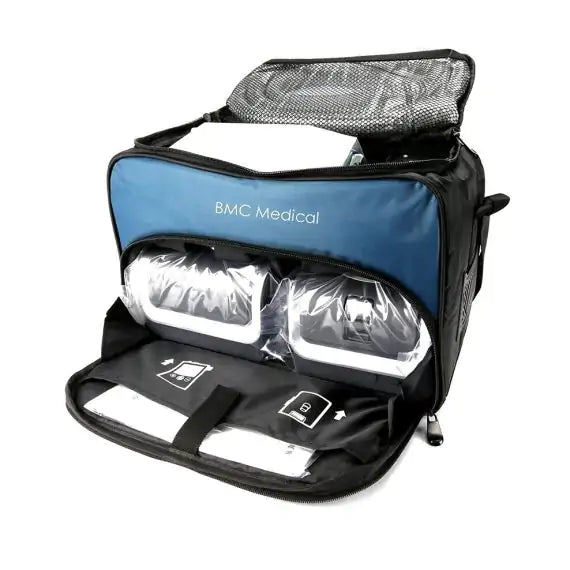

  8. Travel/Carry Bag

  9. User Manual & Quick Start Guide
