Product Description

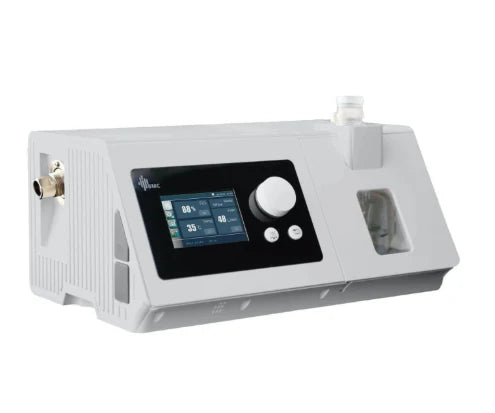

The BMC H-80M Respiratory High-Flow Therapy Device is a high-flow nasal cannula (HFNC) system designed for patients with spontaneous breathing. It delivers heated and humidified air/oxygen mixtures at flow rates of up to 80 L/min, helping improve oxygen therapy comfort and effectiveness. The device is suitable for humidification therapy, oxygen therapy, endotracheal intubation, and tracheotomy patients (not intended for life support). It features precise temperature control, advanced humidification technology, and comprehensive monitoring functions for efficient respiratory care.

Technical Specifications

Here is the official information and structural breakdown for the BMC Medical H-80M Respiratory High-Flow Therapy (HFNC) Device, sourced directly from BMC Medical's product line specifications.

Product Description

The H-80M is a highly integrated Respiratory High-Flow Therapy Device designed for patients with spontaneous breathing. It effectively treats respiratory insufficiency (such as in patients undergoing humidification therapy, oxygen therapy, endotracheal intubation, or tracheotomy) by delivering a precise, heated, and humidified blend of air and oxygen. It is intended for use in hospitals and long-term care institutions but is not a life-support device.

Technical Specifications

Key Features

• Precise Climate Control: Advanced temperature management combined with a 7-level humidity compensation feature allows the device to adapt flawlessly across varied geographic and environmental conditions.

• Granular Tracking: Features an integrated trend review memory spanning up to 7 days, allowing clinicians to review long-term metrics for oxygen concentration, respiratory rate, and sPEEP.

• Child-Friendly Adaptability: Includes an LFlow mode specifically tuned to accommodate safer, lower flow thresholds for pediatric applications alongside its standard HFlow mode for adult patients.

• Low Maintenance Overheads: Integrated automatic water-filling functionality and smart reminders for air filter replacements ensure smoother clinical workflows.

Product Highlights

• High Flow Capacity: Capable of outputting up to 80 L/min of blended gas, satisfying a broader spectrum of severe clinical respiratory needs compared to standard 60 L/min models.

• Disinfection-Free Architecture: Designed to minimize cross-contamination risks while streamlining quick turnarounds between patients.

• Backflow Prevention: Built-in backflow valve inside the water chamber prevents dangerous gas migration, prioritizing baseline patient safety.

Use Cases

• Spontaneous Breathing Insufficiency: For patients struggling with oxygenation but who still retain independent breathing drive.

• Post-Extubation Support: Assisting transition pathways for patients following endotracheal intubation or tracheotomy.

• Humidification & Oxygen Therapy: Managing artificial airways where traditional standard-flow oxygen delivery leaves mucous membranes dry or irritated.

• Clinical Environments: Routinely deployed across hospital intensive care units (ICUs), emergency rooms, and structured long-term sub-acute care facilities.

In the Box (Standard Accessories)

When procured, the standard kit for the H-80M setup typically includes:

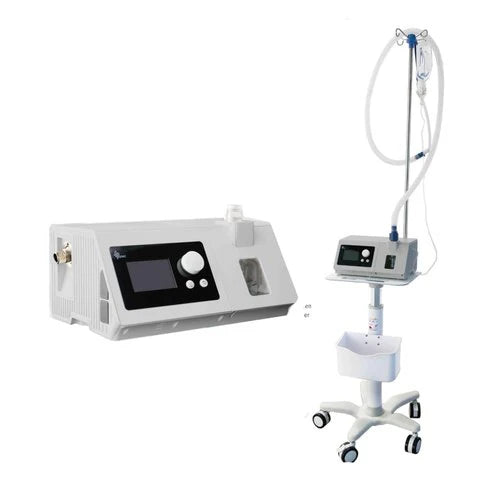

1. BMC H-80M High Flow Device Base Unit

2. Heating Circuit (Heated Breathing Tube)

3. High Flow Nasal Cannula

4. Auto-Water Humidification Chamber

5. Chamber Connector

6. High-Flow Oxygen Hose / Pipe

7. High-Flow Oxygen Flowmeter / Regulator

8. Mobile Trolley with Storage Basket & IV Stand
