The BMC G3 B30VT is an advanced, non-invasive bi-level positive airway pressure device designed to provide reliable respiratory support for patients with respiratory insufficiency, COPD, and obstructive sleep apnea (OSA). Engineered with an integrated heated humidifier, comprehensive smart ventilation algorithms, and multi-stage noise reduction technology, it ensures effective ventilation volume assurance while maintaining premium clinical comfort for long-term home and institutional care.
| Parameter | Specification |
| Device Type | Bi-level PAP / Non-Invasive Ventilator |
| Operating Modes | CPAP, S (Spontaneous), T (Timed), S/T (Spontaneous/Timed) |
| Pressure Range | IPAP: 4.0 – 30.0 $cmH_2O$; EPAP: 4.0 – 25.0 $cmH_2O$ (0.5 $cmH_2O$ increments) |
| CPAP Pressure Range | 4.0 – 20.0 $cmH_2O$ |
| Target Tidal Volume | Supported (Volume Assurance Technology) |
| Sound Level | $\le$ 26 dBA (Ultra-quiet performance) |
| Ramp Duration | 0 – 60 minutes (Adjustable with Auto-Ramp Sleep Detection) |
| Humidification | Integrated heated humidifier with unique "Pre-Heat" function |
| Water Chamber Capacity | 400 mL (Innovative PUSH-open design) |
| Display Screen | 3.5-inch full-color LCD screen (Displays real-time pressure & flow waveforms) |
| Data & Connectivity | SD Card, Wi-Fi, Cellular module, iCode / iCode QR / iCode QR+ |
| Therapy Analytics | AHI (Apnea-Hypopnea Index), leak rate, usage hours, pressure trends |
| Safety Features | Auto Leak Compensation, Central Sleep Apnea (CSA) detection, Mask Fit check |
| Patient Weight Profile | Intended for adult patients over 30 kg (66 lbs) |
| Power Supply Input | 100 – 240 V AC, 50/60 Hz (60W max power consumption) |
| Dimensions & Weight | 265 $\times$ 145 $\times$ 114 mm / Approx. 1.7 kg |
Target Tidal Volume Technology: Automatically measures and adjusts the inspiratory pressure support level dynamically to achieve the preset target lung tidal volume, mitigating hypoventilation.
S/T Mode Safety Backup: Synchronizes naturally with the patient's spontaneous breathing pattern. If the patient fails to initiate a breath within a specific window, the machine triggers forced safety ventilation.
Inspiratory Time Control: Independent Ti Min and Ti Max settings allow clinical operators to customize breathing rhythms and prevent brief or incomplete lung ventilation cycles.
Auto-Ramp with Sleep Detection: Delivers a gentle, lower baseline pressure at the start of therapy. Once the system detects the patient has transitioned into sleep, it smoothly increases to the prescribed therapeutic settings.
Innovative PUSH Water Chamber: A seamless structural redesign that lets users release, fill, and slide back the water chamber using a single push interaction, completely bypassing complicated latches.
Intelligent Pre-Heating: Features a pre-heat setting allowing users to warm the humidification water chamber before starting therapy, eliminating dry air shock during the first few minutes of sleep.
Extensive Sleep Ecosystem Diagnostics: Offers an accessible array of tracking methods, from cloud data storage platforms and the mobile PAP Link App to quick on-screen summary metrics and PC-based analysis software.
Chronic Obstructive Pulmonary Disease (COPD): Manages chronic hypercapnia (carbon dioxide retention) by aiding exhalation pressure drops.
Obesity Hypoventilation Syndrome (OHS): Compensates for shallow breathing during deep sleep phases through volume-targeted pressure adjustments.
Restrictive Lung & Neuromuscular Disorders: Delivers up to 30 $cmH_2O$ of high-pressure baseline ventilation support for patients suffering from low lung compliance.

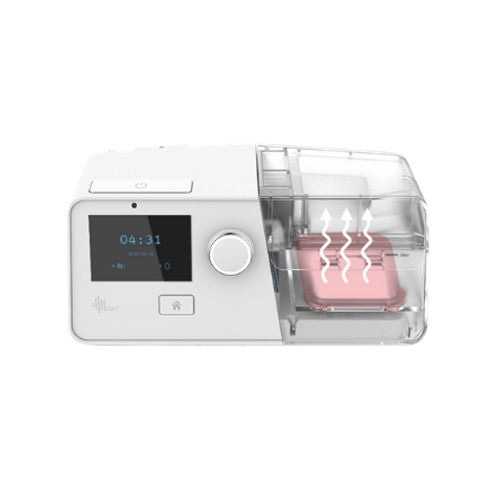

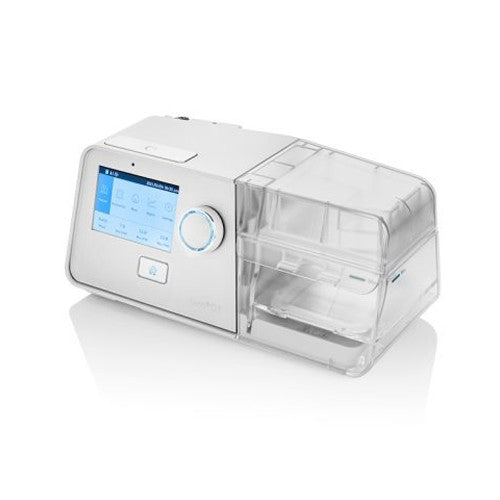

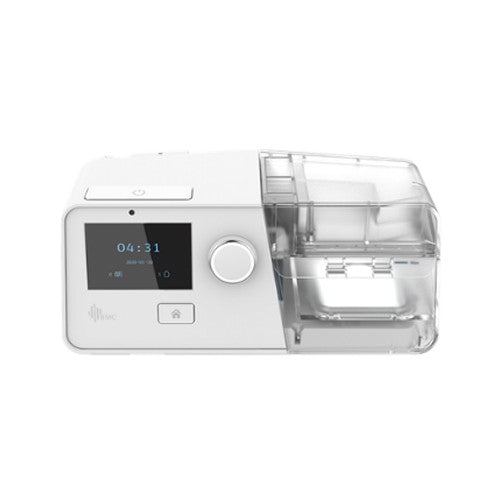

BMC G3 B30VT Bi-level Main Unit
Integrated Eco-Smart Heated Humidifier Water Tank
Standard Breath Tubing Hose (or optional Heated Hose, depending on region configuration)
Two Standard Air Filtration Layers
Secure SD Card (Pre-inserted for compliance data logging)
AC Power Adapter & Power Supply Cord
Premium Travel Carrying Case
User Operation Manual & Quick Setup Guide
