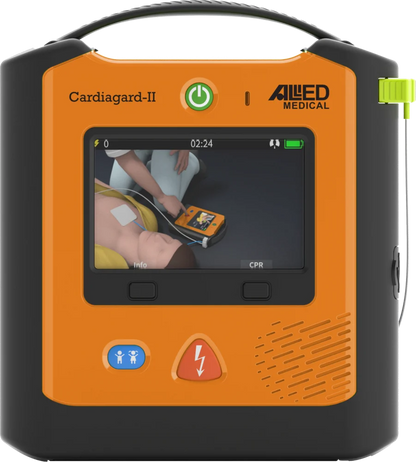

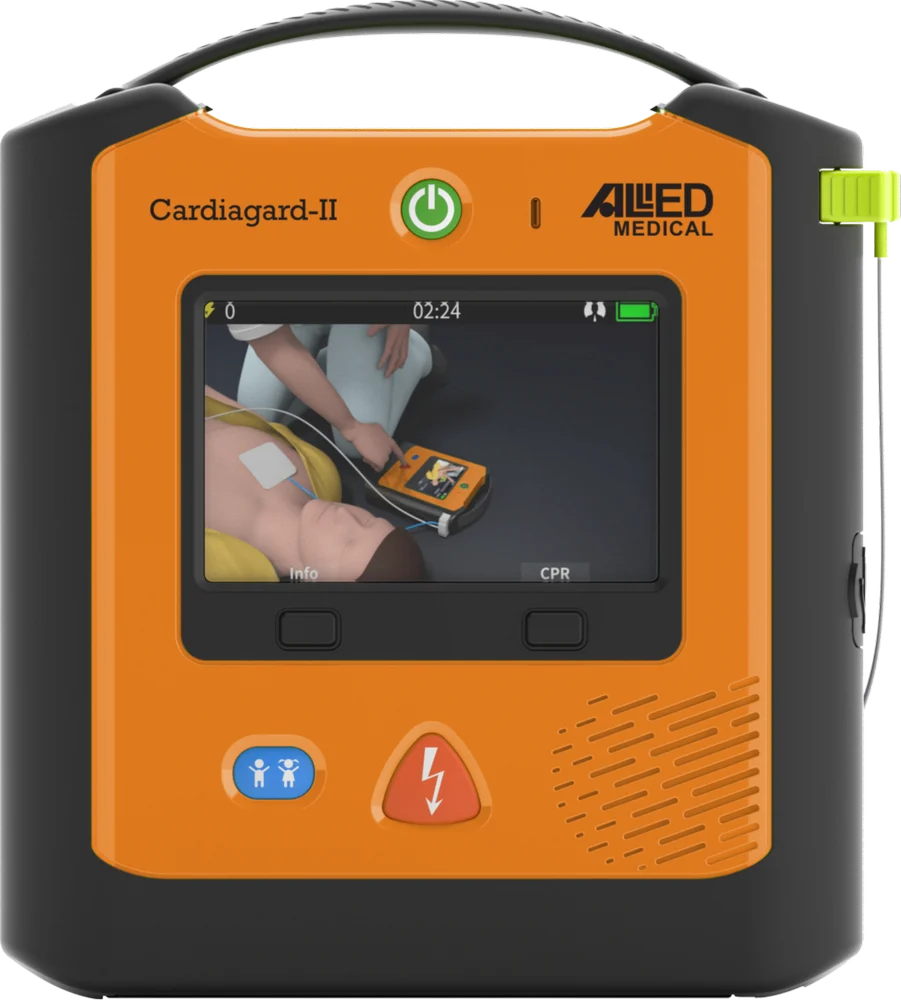

Allied Semi?Automatic Defibrillator with 5" LCD Screen - Cardiagard II

Kaarya

Allied Semi?Automatic Defibrillator with 5" LCD Screen - Cardiagard II

Rs. 0.00
Rs. 0.00
Sold out
Tax included. Shipping calculated at checkout.
29 people are viewing this right now

Availability: Low stock: 1 left

Our Advantages

  1. 1. GST Invoice
  2. 2. Brand New Products
  3. 3. Easy Replacements
  4. 4. Authorized Distributor
  5. 5. Best Price Guaranteed
  6. 6. Multiple Payment Options
SKU: 19176

Shipping & Returns

Free shipping and returns available on all orders!

We ship all US domestic orders within 5-10 business days

View full product details

Product Description :

The Allied Cardiagard II Semi‑Automatic Defibrillator is an advanced Automated External Defibrillator (AED) designed for rapid response during sudden cardiac arrest (SCA) emergencies. It features a 5-inch color LCD display with visual animations, voice prompts, and bilingual text guidance to assist both trained medical professionals and first-time responders. Its lightweight, portable design and semi-automatic shock delivery system make it suitable for hospitals, clinics, ambulances, public facilities, offices, schools, and industrial environments.

Technical Specifications :

Specification Details
Device Type Semi-Automatic AED
Display 5" Color LCD Screen
Resolution 800 × 480 Pixels
Waveform Biphasic Truncated Exponential (BTE)
Shock Energy (Adult) 150 J
Shock Energy (Pediatric) 50 J
CPR Guidance Adult & Pediatric CPR Coaching
Battery Type Li/MnO₂, 12V / 3000 mAh
Battery Standby Life Up to 5 Years
Shock Capacity Approx. 200 shocks at 150J
Data Storage ECG & event recording ≥ 8 hours
Self-Test Data Storage Up to 10 Years
Connectivity USB, Bluetooth (Standard), Optional 4G Module
Drop Resistance 1.5 m Free-Fall Protection
Ingress Protection IP55 (Dust & Water Resistant)
Operating Temperature 0°C to +50°C
Dimensions 232 × 209 × 59 mm
Weight Approx. 1.5 kg (including battery & pads)



Key Features :

  • 5" Color LCD Display with clear visual guidance
  • Semi-Automatic Shock Delivery for controlled operation
  • Voice, Animation & Bilingual Text Prompts
  • Dedicated Child Mode for pediatric patients
  • CPR Coaching with metronome and hand-placement guidance
  • Biphasic Defibrillation Technology
  • Automatic Self-Test Function
  • ECG & Event Recording Capability
  • USB & Bluetooth Connectivity
  • Optional 4G Communication Module
  • Lightweight and Portable Design
  • IP55 Dust and Water Resistance
  • Up to 10 Years Self-Test Data Storage

Highlights :

✔ 5-inch high-resolution color LCD screen
✔ Supports both adult and pediatric patients
✔ Intelligent biphasic shock technology
✔ CPR assistance with real-time prompts
✔ Stores ECG and incident data for review
✔ Lightweight (1.5 kg) and highly portable
✔ Rugged design with 1.5 m drop resistance
✔ USB, Bluetooth, and optional 4G connectivity
✔ Long battery standby life of up to 5 years
✔ Suitable for hospitals, ambulances, and public-access emergency response programs

Use Cases :

  • Hospitals and Emergency Departments
  • Intensive Care Units (ICU)
  • Ambulances and Emergency Response Vehicles
  • Clinics and Nursing Homes
  • Airports and Railway Stations
  • Educational Institutions
  • Corporate Offices
  • Shopping Malls and Public Venues
  • Sports Facilities and Gyms
  • Industrial and Manufacturing Facilities

In the Box :

  • Allied Cardiagard II AED Device
  • Adult Electrode Pads
  • Pediatric Electrode Pads
  • Battery
  • User Manual
  • Carrying Case
